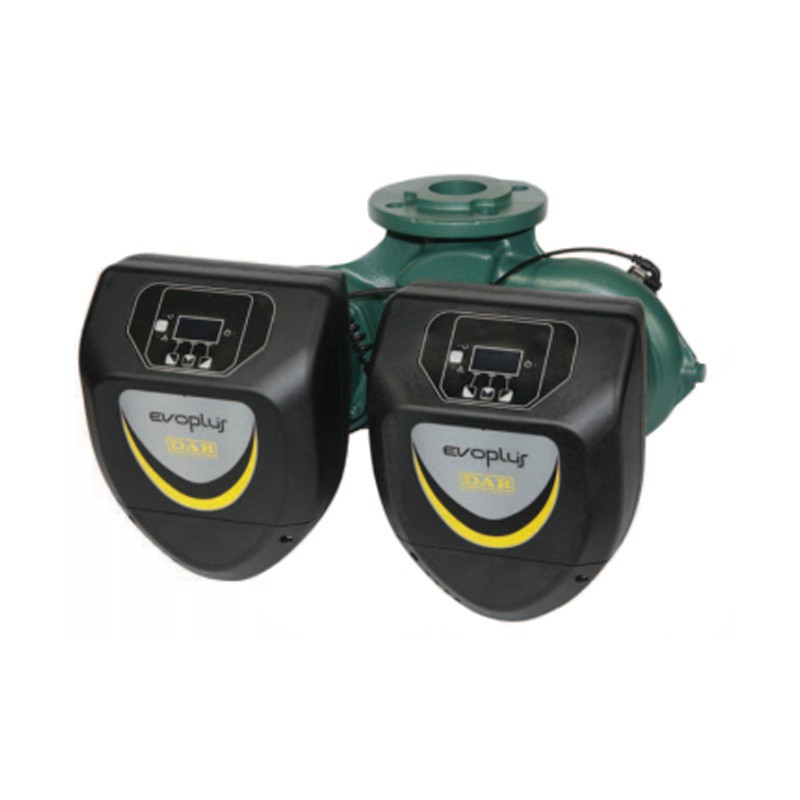

The electronic circulator DAB EVOPLUS D 120/250.40 60151005
DAB 60151005
The electronic circulator DAB EVOPLUS D 120/250.40 M twin flanged, can be used in heating, ventilation and air-conditioning for buildings for residential use and commercial.
The electronic circulator DAB EVOPLUS D 120/250.40 60151005
€2,180.19
Tax included
€2,180.19
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
APPLICATIONS IN THE HEATING
The heating required in various applications varies significantly during the day/night because of the outside temperature and the presence of more or less constant, of people inside the premises. To the above must be added the different needs of various environments and the possible opening or closing of the various branches in complex installations. Wet rotor pumps can be electronically regulated to ensure in every moment, in virtually all the systems sized Properly, a sufficient amount of energy and at the same time a quiet / comfort and a significant reduction of operating costs.
APPLICATIONS IN AIR-CONDITIONING
Unlike pumps with conventional electronic pumps, the electronic circulation EVOPLUS can also be used in air-conditioning systems where the temperature of the pumped liquid is lower than the ambient temperature. In these conditions, on the outer surface of the circulator in the formation of the condensate which does not affect the proper functioning of both the electronics and mechanics. The particular construction has been designed and dimensioned in such a way as to allow the drainage of the condensate without damage to the components.
Features:
- Centre distance 250mm
- counterflanges on request DN 40 PN 10
- Power supply 50/60hz 220/240 V
- max power 465W
- In 2.2
- Operating range: from 3 to 75,6 m3/h with head up to 18 metres
- Temperature range of the liquid: 10 °C to +110 °C
- Pumped liquid: clean, free from solid substances and mineral oils, not viscous, chemically neutral, close to characteristics of water. (propylene glycol), maximum 30%).
- Maximum operating pressure: 16 bar (1600 kPa)
- Maximum ambient temperature: + 40°C
- The minimum pressure of the leaf: the values are shown in the relevant tables
- Electromagnetic compatibility: The circulators EVOPLUS comply with the standard EN 61800-3, in category C2, for electromagnetic compatibility
- Degree of protection pump: IP 44
- Insulation class: F
- Voltage range: single phase 220 - 240 V, 50/60Hz
- Temperature range of the liquid: from -10°C to +110°C
- Maximum operating pressure: 16 bar (1600 kPa).
There are no reviews
Data sheet
- Type:
- Circulatory
- Version:
- Double
- Model:
- Electronic
