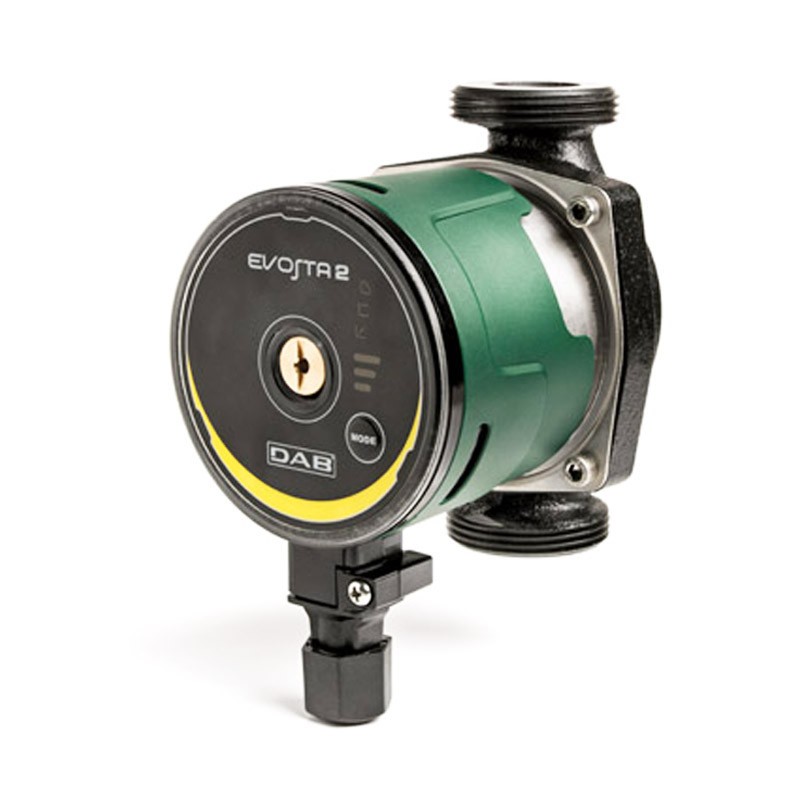

Electronic circulator DAB EVOSTA2 40-70/150 SAN 60186164
DAB 60186164
Electronic circulator DAB EVOSTA2 40-70/150 SAN low energy consumption for circulation of water in all types of domestic heating and air conditioning systems.
Electronic circulator DAB EVOSTA2 40-70/150 SAN 60186164
€254.82
Tax included
€254.82
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 14
Pay in installments with Klarna
EVOSTA 2 SAN is the new range of circulators DAB is capable of providing the robustness of the circulator mechanical, combined with the advantages of the electronic one. The permanent magnet synchronous motor, the frequency converter is matched to the degree of protection IPX5 and the vent plug, integrated, make the family EVOSTA 2 SAN one of the best products of the category in terms of efficiency and reliability. The range of circulators EVOSTA 2 SAN lends itself very well to the replacement of the old circulators three speed is for the compact size, both for the completeness of the offer in terms of performance. It is also a product that can simplify the task of the installer having a single button set-sequential, and direct access to the motor shaft for the eventual release.
Features:
- Centre distance 150mm
- Pump connections DN25 THREAD ( G 1½)
- Power supply 50Hz 1x230 V ~
- Max power 35W
- In Is 0.043 - 0.32
- Temperature range of the liquid: from -10 °C to +110°C
- Operating pressure: 10 bar (1000 kPa)
- Degree of protection: IPX5
- Insulation class: F
- Installation: with lasse of the horizontal motor
- Power supply range: single-phase 1x230 V~ 50/60 Hz
- Pumped liquid: Clean, free from solid substances and mineral oils, not viscous, chemically neutral, close to characteristics of water (glycol max. 30%).
CONSTRUCTION FEATURES
Bronze pump body and motor wet rotor. Motor casing in stainless steel, impeller in technopolymer. The motor shaft fitted ceramic bearing ceramic lubricated by the pumped liquid. Shirt of the rotor and closing flange in stainless steel. Thrust ring in graphite. EPDM o-rings and cap air vent brass. Thanks to the internal protection of the motor, the pump requires no protection against overload.
The functionality of the circulatory EVOSTA 2 SAN can be modified through the control panel, located on the cover of the electronic control device. The pump has nine setting options that can be selected with the button: MODE. The settings of the pump are indicated by the six segments illuminated on the display.
There are no reviews
Data sheet
- Type: Circulatory
- Version: Single
- Model: Electronic
