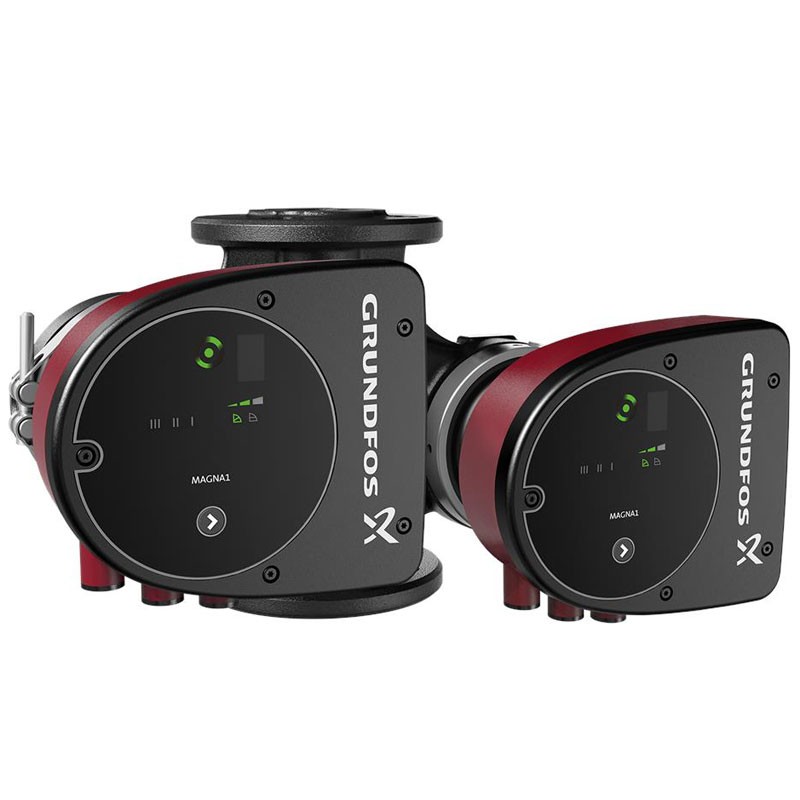

Grundfos MAGNA1 D 40-60 electronic wet rotor circulator 99221294
GRU 99221294
5712608942679
Grundfos MAGNA1 D 40-60 high-efficiency electronic wet-rotor circulator for heating and air-conditioning systems, twin version with DN 40 flanged connections, max head 6 m:
- Power supply: Single-phase
- Max. operating pressure (bar): 10
- Centre distance (mm): 220
- Pump connections: DN40
- Max head 6 meters
Grundfos MAGNA1 D 40-60 electronic wet rotor circulator 99221294
€1,595.98
Tax included
€1,595.98
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Double pump performance or reduce downtime during service with twin pump redundancy (manual override). A basic product that can be managed from an intuitive user interface.
Features:
Suitable for:
- Air conditioning
- Commercial buildings
- Heating in commercial buildings
- Domestic hot water recirculation
- Domestic heating
- District cooling
- District heating
- Industrial heating
Features:
- Max header 60 dm
- Class TF 110
- Approvals on the nameplate CE,VDE,EAC,CN ROHS,WEEE
- Model C
- Pump body Cast iron EN-GJL-250 ASTM A48-250B
- Impeller PES 30%GF
- Ambient temperature limitation 0 ... 40 °C
- Max. operating pressure 10 bar
- Standard DIN flange
- Pipe connection DN 40
- Operating pressure PN 6/10
- Centre distance 220 mm
- Power input - P1 12 .. 194 W
- Mains frequency 50 / 60 Hz
- Nominal voltage 1 x 230 V
- Maximum current consumption 0.11 ... 1.56 A
- Protection class (IEC 34-5) X4D
- Insulation class (IEC 85) F
- Pumped liquid Water
- Liquid temperature range -10 ... 110 °C
- Liquid temperature during operation 60 °C
- Density 983.2 kg/m³
There are no reviews
Data sheet
- Type: Circulatory
- Version: Double
- Model: Wet rotor
