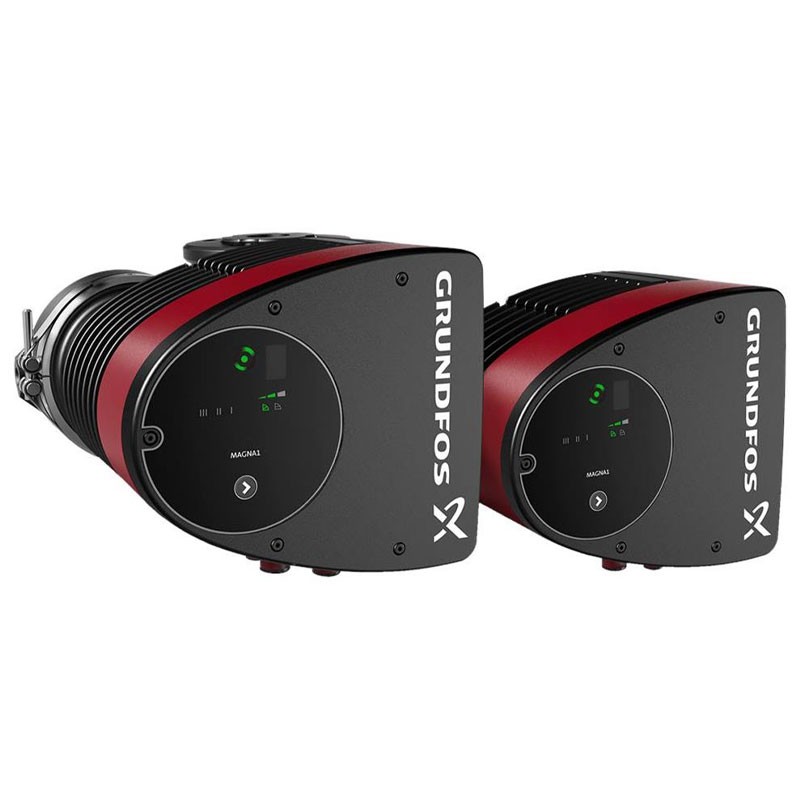

Grundfos MAGNA1 D 50-80 F electronic wet rotor circulator 99221340
GRU 99221340
5712608943133
Grundfos MAGNA1 D 50-80 F high-efficiency electronic wet-rotor circulator for heating and air-conditioning systems, twin version with DN 50 flanged connections, max head 8 m.
- Power supply: Single-phase
- Max. operating pressure (bar): 10
- Centre distance (mm): 240
- Pump connections: DN50
- Max head 8 meters
Grundfos MAGNA1 D 50-80 F electronic wet rotor circulator 99221340
€3,222.73
Tax included
€3,222.73
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Specifications:
Suitable for:
- Air conditioning - Commercial buildings
- Heating in commercial buildings
- Hot water recirculation in commercial buildings
- Domestic hot water recirculation
- Domestic Heating
- District Cooling
- District heating
- Industrial heating
Liquid:
- Pumped liquid: water
- Liquid temperature: -10°C to +110°C
- Liquid temperature during operation: 60°C
- Density: 983.2 kg/m³
- Ambient temperature: 0 °C to +40 °C
Techniques:
- Maximum head: 8 meters
- TF class: 110
Installation:
- Maximum working pressure: 10 bar
- Pump connections: DN 50
- Working pressure: PN 6/10
- Centre distance: 240 mm
Electrical data:
- Voltage: single-phase 230 V ± 10 %.
- Mains frequency: 50/60 Hz
- Maximum power: 331 W
- Degree of protection: IPX4D
- Insulation class: F
- Energy (EEI): ? 0.22
Materials and components
- Cast iron pump body
- Cataphoretic coating (anti-corrosion) of the pump head and body
- Permanent magnet synchronous motor
- Neodymium rotor
- Integrated thermal protection - no external motor protection required
- Integrated frequency converter for circulator speed management
- Insulation shell for heating not included
- Digital input (start/stop) & relay output (alarm)
- Communication with Grundfos GO App
- Wireless multi-pump function
- Control modes: proportional pressure control (3 levels), constant pressure control (3 levels), constant curve (3 fixed speeds)
- Twin version with DN 50 flanged ports

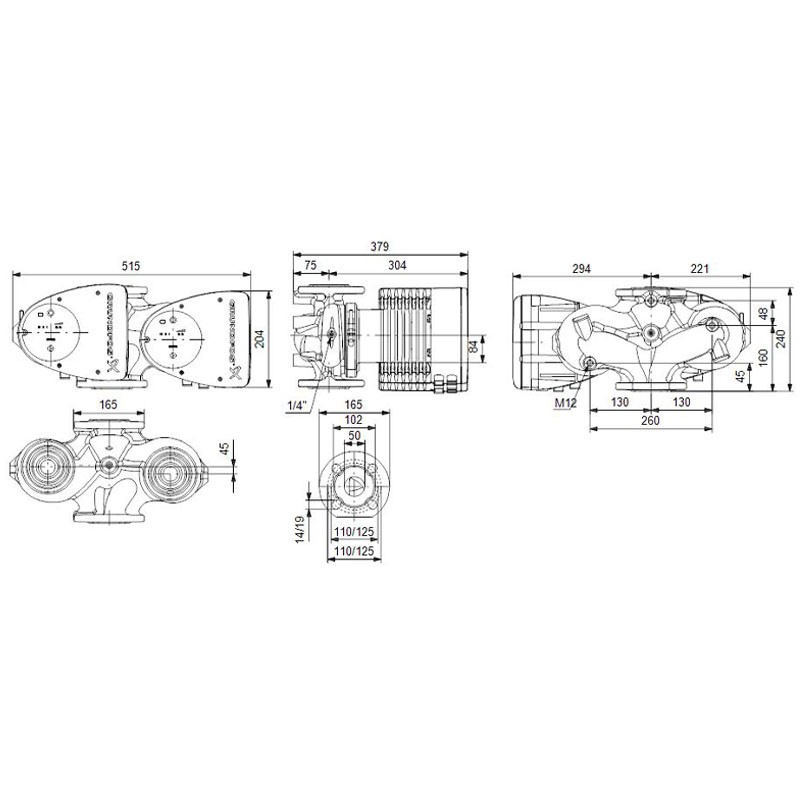

Features:
- Weight (kg): 34,6
- Length/Depth (cm): 37,9
- Width (cm): 51,5
- Height (cm): 24
- Power supply: Single phase
- Degree of protection: IPX4D
- Insulation class: F
- Max. working pressure (bar): 10
- Centre distance (mm): 240
- Pump connections: DN 50
- Maximum head (m): 8
There are no reviews
Data sheet
- Type: Circulatory
- Version: Double
- Model: Wet rotor
