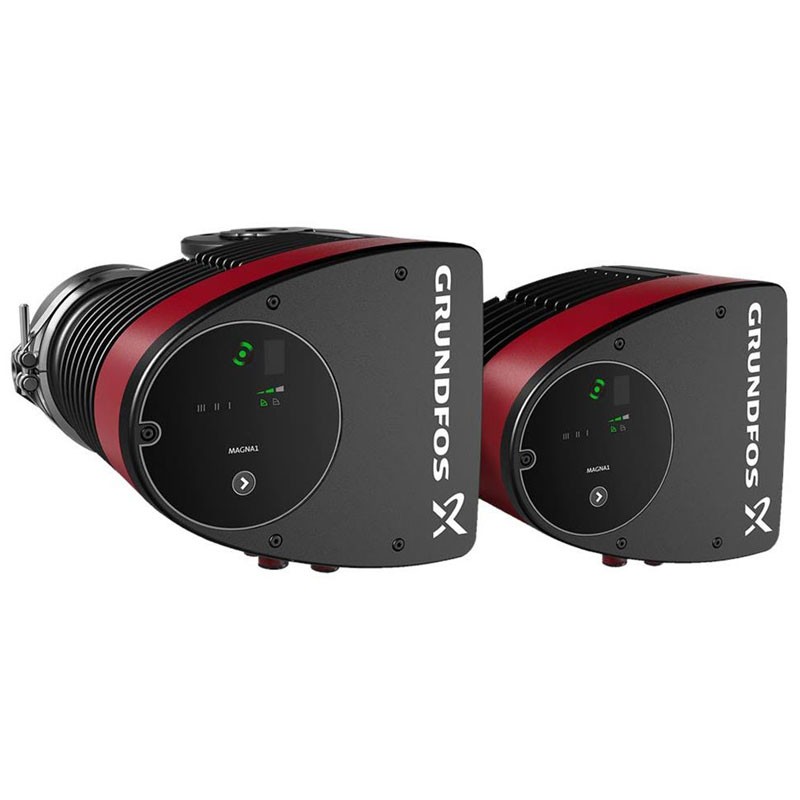

Grundfos MAGNA1 D 65-120 F electronic wet rotor circulator 99221380
GRU 99221380
5712608943522
Grundfos MAGNA1 D 65-120 F high-efficiency electronic wet-rotor circulator for heating and air-conditioning systems, twin version with DN 65 flanged connections, max. head 12 m:
- Power supply: Single-phase
- Max. operating pressure (bar): 10
- Centre distance (mm): 340
- Pump connections: DN 65
- Maximum head 12 meters
Grundfos MAGNA1 D 65-120 F electronic wet rotor circulator 99221380
€4,381.41
Tax included
€4,381.41
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Pay in installments with Klarna
Specifications:
Suitable for:
- Air conditioning - Commercial buildings
- Heating in commercial buildings
- Hot water recirculation in commercial buildings
- Domestic hot water recirculation
- Domestic Heating
- District Cooling
- District heating
- Industrial Heating
Liquid:
- Pumped liquid: water
- Liquid temperature: -10°C to +110°C
- Liquid temperature during operation: 60°C
- Density: 983.2 kg/m³
- Ambient temperature: 0 °C to +40 °C.
Techniques:
- Maximum head: 12 meters
- TF class: 110.
Installation:
- Maximum working pressure: 10 bar
- Pump connections: DN 65
- Working pressure: PN 6/10
- Centre distance: 340 mm.
Electrical data:
- Voltage: single-phase 230 V ± 10 %.
- Mains frequency: 50/60 Hz
- Maximum power: 769 W
- Degree of protection: IPX4D
- Insulation class: F
- Energy (EEI): ? 0.21.
Materials and components
- Cast iron pump body
- Cataphoretic coating (anti-corrosion) of the pump head and body
- Permanent magnet synchronous motor
- Neodymium rotor
- Integrated thermal protection - no external motor protection required
- Integrated frequency converter for circulator speed management
- Insulation shell for heating not included
- Digital input (start/stop) & relay output (alarm)
- Communication with Grundfos GO App
- Wireless multi-pump function
- Control modes: proportional pressure control (3 levels), constant pressure control (3 levels), constant curve (3 fixed speeds)
- Twin version with DN 65 flanged ports.

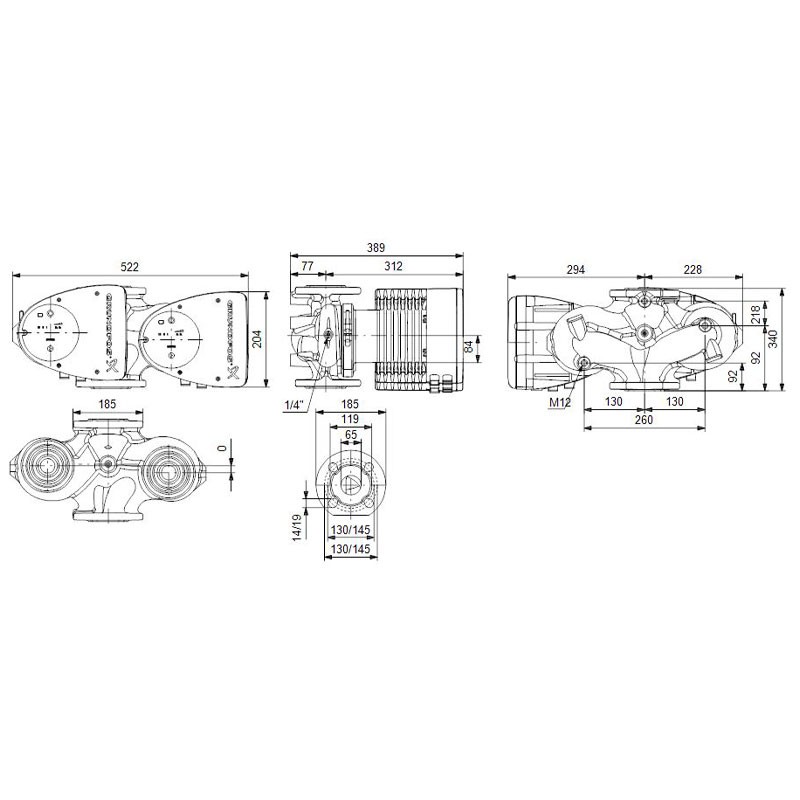

Features:
- Weight (kg): 40
- Length/Depth (cm): 38,9
- Width (cm): 52,2
- Height (cm): 34
- Power supply: Single phase
- Degree of protection: IPX4D
- Insulation class: F
- Max. operating pressure (bar): 10
- Centre distance (mm): 340
- Pump connections: DN 65
- Maximum head (m): 12.
There are no reviews
Data sheet
- Type: Circulatory
- Version: Double
- Model: Wet rotor
