Best seller

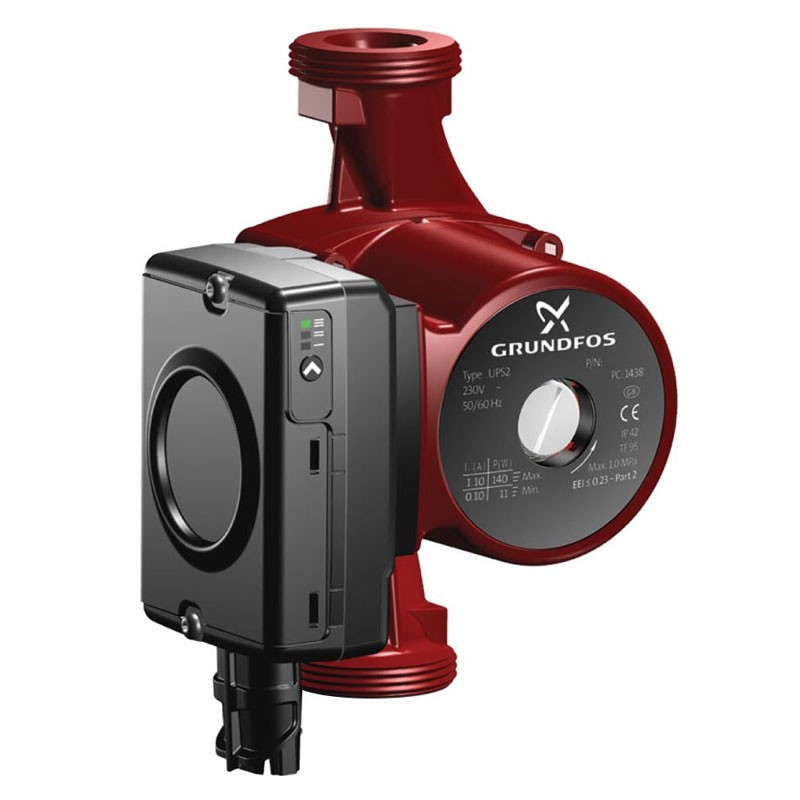

Grundfos UPS2 32-80 180 wet rotor circulator for heating 98707855

Grundfos
Grundfos
GRU 98707855 5712600252028

Grundfos UPS2 32-80 180 wet rotor circulator for domestic heating systems, G 2" threaded ports, max head 8 m:

  • Power supply: Single-phase
  • Protection class: IP44
  • Insulation class: F
  • Max. working pressure (bar): 10
  • Centre distance (mm): 180
  • Pump connections: G 2"
  • Maximum head (m): 8

Request info about this product

Grundfos UPS2 32-80 180 wet rotor circulator for heating 98707855

€444.84 Tax included
€444.84

Grundfos UPS2 32-80 180 wet rotor circulator for heating 98707855

€444.84
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 4
Altre disponibilità dal produttore
qty

Grundfos UPS2 32-80 180 wet rotor circulator for heating 98707855

€444.84

Buy it within and receive it from Thursday, 13 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Specifications:

Suitable for:

  • Replacement of old circulators
  • Domestic heating systems.

Liquid:

  • Pumped liquid: water
  • Liquid temperature: +2° C to +95° C
  • Liquid temperature during operation: 60° C
  • Density: 983.2 kg/m³
  • Ambient temperature: 0° C to +40° C.

Techniques:

  • Maximum head: 8 meters
  • TF class: 95
  • Approvals on the nameplate: CE, WEEE.

Installation:

  • Maximum working pressure: 10 bar
  • Pump connections: G 2"
  • Working pressure: PN 10
  • Centre distance: 180 mm.

Electrical data:

  • Voltage: single-phase 230 V ± 10 %.
  • Mains frequency: 50/60 Hz
  • Maximum power: 140 W
  • Degree of protection: IP44
  • Insulation class: F
  • Does not require external protection for the motor
  • Energy (EEI): ? 0.23

Materials and components

  • Cast iron pump body
  • Impeller in composite material
  • Ceramic shafts and bearings
  • Stainless steel bearing bracket
  • Stainless steel rotor and rotor sleeve
  • 4 poles synchronous motor with permanent magnets
  • Electrical connection via connector
  • Manual release: through front screw
  • Sound pressure: ? 43 dB(A)
  • Control modes: constant curve (3 levels), proportional pressure (3 levels)
  • Compatible with Alpha plug
  • Dimensionally compatible with older UPS circulators
  • Complies with EUP (0.23), provides 50% energy savings over older generation pumps

Features:

  • Weight (kg): 2.7
  • Length/Depth (cm): 13.9
  • Width (cm): 14.5
  • Height (cm): 20.2
  • Power supply: Single-phase
  • Degree of protection: IP44
  • Insulation class: F
  • Max. working pressure (bar): 10
  • Centre distance (mm): 180
  • Pump connections: G 2"
  • Max head (m): 8.

There are no reviews

Data sheet

Type:
Circulatory
Version:
Single
Model:
Wet rotor
