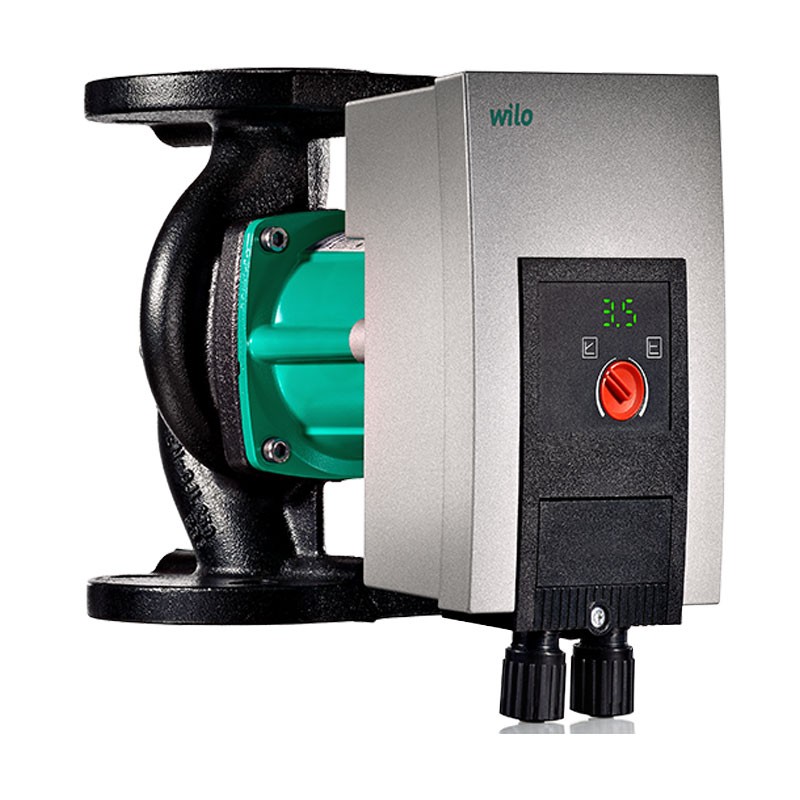

Single circulator Wilo YONOS MAXO 80/0,5-12 centre distance 360 2120658
WIL 2120658
Single circulator Wilo YONOS MAXO 80/0,5-12 centre distance 360 mm Pipe connection on the pressure side and pipe connection on the suction side DN 80.
Single circulator Wilo YONOS MAXO 80/0,5-12 centre distance 360 2120658
€2,184.98
Tax included
€2,184.98
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Hydraulic data:
- Maximum operating pressure PN 6 bar
- Head H max 12,0 m
- Delivery Q max 56,0 m³/h
- Minimum inlet height at 50 °C 7.0 m
- Minimum inlet height at 95 °C 15.0 m
- Minimum inlet height at 110 °C 23,0 m
- Min. fluid temperature Tmin -20 °C
- Max. fluid temperature Tmax 110 °C
- Min. ambient temperature Tmin -20 °C
- Max. ambient temperature Tmax 40 °C.
Materials
- Pump body Cast iron
- Impeller PP-LGF50
- Shaft stainless steel
- Bearing material Graphite.
Motor data
- Energy efficiency index IEE 0.20
- Mains power supply 1~230 V ±10%, 50/60 Hz
- Nominal current IN 0.30 A
- Nominal current IN 6.80 A
- Min. speed nmin 900 rpm
- Max. speed nmax 3300 rpm
- Power consumption (min) P1 min 40.0 W
- Power consumption P1 max 1550,0 W
- Electromagnetic interference emission EN 61800-3;2004+A1;2012 / residential environment (C1)
- Interference immunity EN 61800-3;2004+A1;2012 / industrial environment (C2)
- Cable gland 2 x M20x1.5
- Insulation class F
- Degree of protection IPX4D
There are no reviews
Data sheet
- Type: Circulatory
- Version: Single
