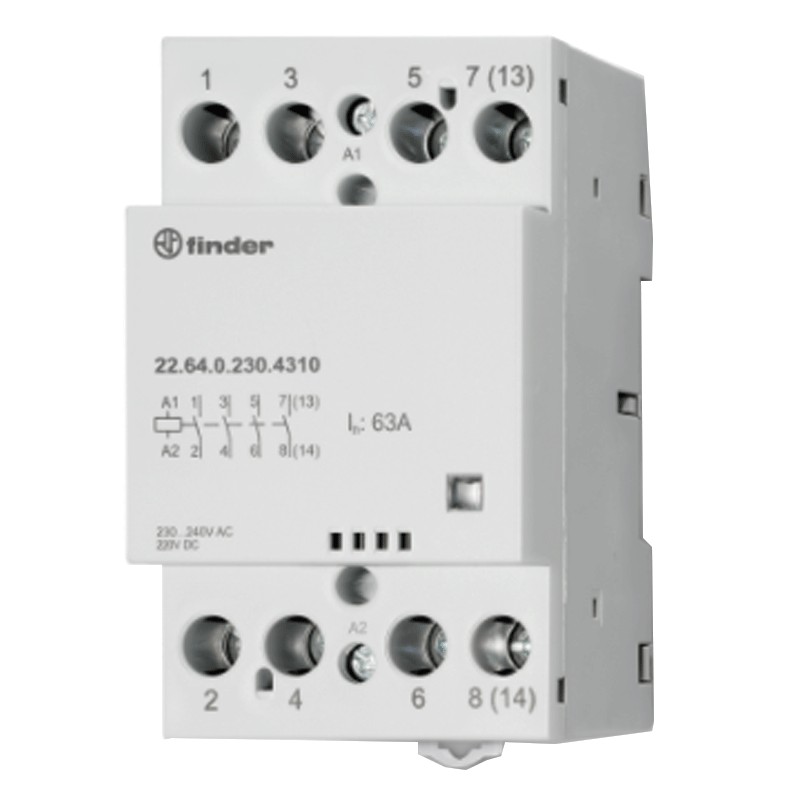

Finder contactor DIN 4 contacts NO 22.64.0.230.4310
FIN 226402304310
8012823376059
Finder contactor, with the following characteristics:
- Operating voltage 400/440 Vac
- 2 modules
- 4 poles
- DIN connection (universal for any switchboard on the market)
- Contact type 4 NO
- Operating current 63 amperes
Finder contactor DIN 4 contacts NO 22.64.0.230.4310
€76.13
Tax included
€76.13
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 13
: 2
Pay in installments with Klarna
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Finder Series
- Operating voltage 400/440 Vac
- Operating current 63A
- 2 modules
- 4 poles
- Contact type 4 NO
- NO and NC contact opening ≥ 3 mm, double breakage
- Coil and contacts for continuous duty
- Silent AC/DC coil (with varistor protection)
- Protective separation between coil and contacts (reinforced insulation)
- Standard version with mechanical indicator
- Version according to EN 60947-4-1: Mirror Contact
- Auxiliary module according to EN 60947-5-1: mechanically guided contacts
- Contact material AgSnO2
- Mounting on 35 mm DIN rail (EN 60715)
- Degree of protection IP20
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 400/440VAC
- Modules: 2
- Poles: 4P
- Amps: 63A
