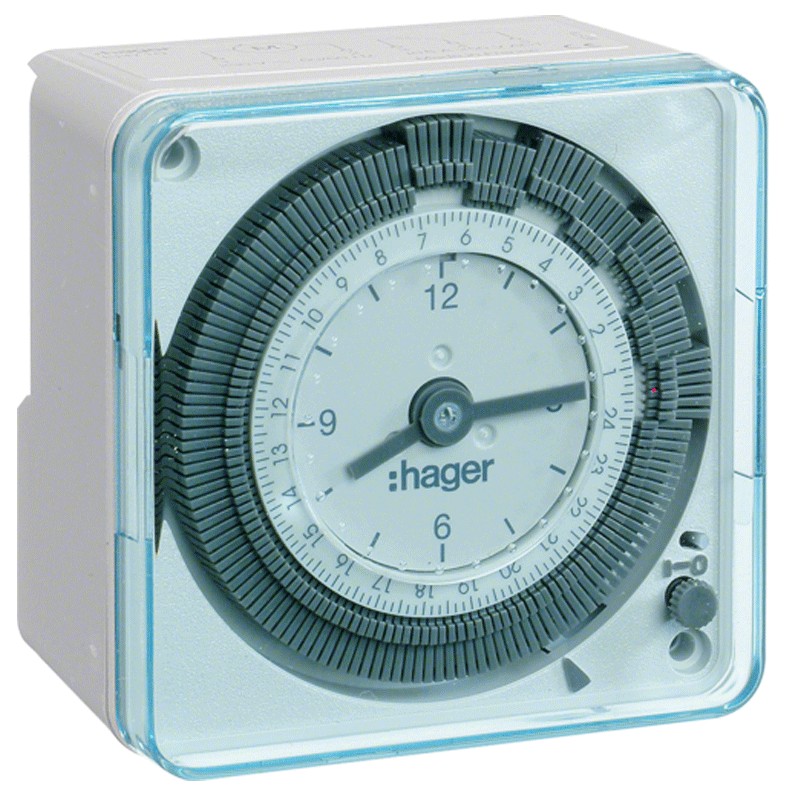

Hager time switch 72X72 wall mounted EH711
HAG EH711
3250612287116
Electromechanical daily time switch from Hager with the following features:
- Nominal operating voltage AC 196 / 253 V
- Operating voltage 230 V
- Rated frequency 50 Hz
- Current In 16A
- Mounting method: projecting
- With charge reserve
Hager time switch 72X72 wall mounted EH711
€43.13
Tax included
€43.13
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Features:
- Hager Series
- Number of functional channels 1
- Switching cycles min. 50000
- Switching contact, can be used as opening or closing contact
- Time switch with rider on/off contacts
- Switching current at cos φ = 0.6 max. 3 A
- Power consumption in VA 0.5 VA
- Power consumption (in operation) 0.5 VA
- Total power loss 1 W
- Power loss at full load: 1 W
- Charging times for reserve in hours 120
- Maximum power with incandescent lamps 1000 W
- Incandescent and halogen lamps 230 V max. 1000 W
- Type of mounting for wall mounting
- Minimum cross-section with flexible cable 1 / 6 mm²
- Minimum conductor cross-section with rigid cable 1 / 6mm²
- Conductor cross section (flexible) 1...6 mm²
- Conductor cross-section (rigid) 1...6 mm² Number of contacts
- Number of contacts 1
- Type of contact 1 switching
- Type of screw connection: ( With screw terminals - with potential-free contact)
- Number of program steps 72
- Time change summer/winter: manual
- Programming fineness 10 mn
- Programming type analogue
- Programming cycles: 24 h programming cycle
- Programming cycle 24H
- Number of functions 1
- Number of switching times for switching on/off 72
- Operating reserve in hours 200 h
- Switching cycles cos φ = 0.6 min 20000
- Daily cycle
- Degree of protection of the housing IP20
- Operating temperature -10...50 °C
- Operating accuracy 1
- Storage/transport temperature -20...60 °C
Dimensions (mm)
- Depth 48.5 mm
- Height 72 mm
- Width 72 mm
correspond à mes besoins. Commande conforme
Produit conforme aux attentes. Livraison en temps et en heure
oui je recommande ce produit et ce site
Articolo già conosciuto e utilizzato in precedenza
Data sheet
- Type: Switches
- Version: Time
- Model: Daily
- Installation: Wall-mounted
