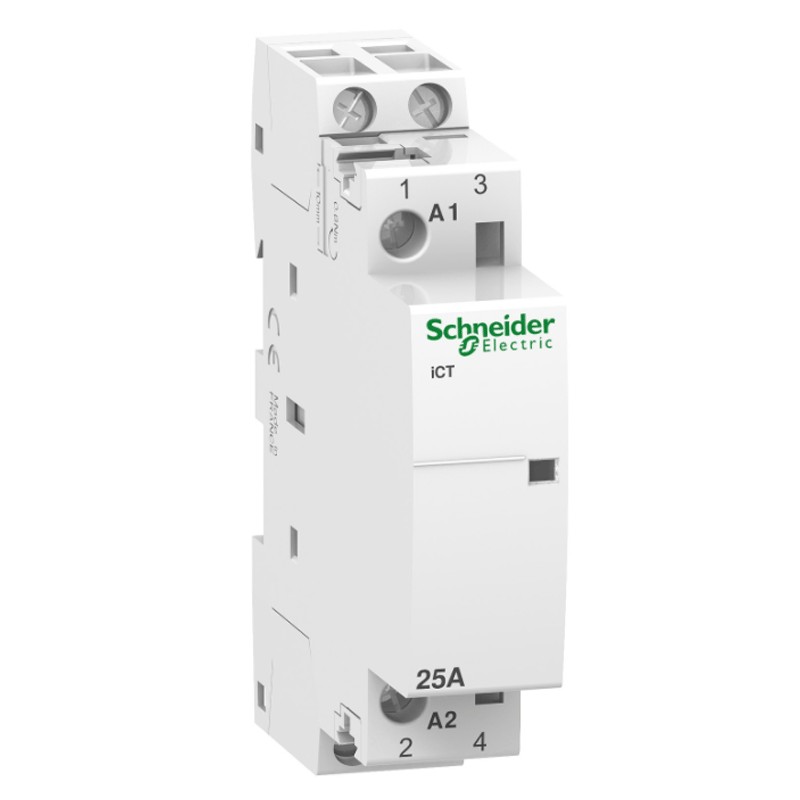

Schneider contactor 25A 2NA 24VAC 1 module A9C20132
SNR A9C20132
3606480096273
Schneider Acti 9 iCT contactor with the following features:
- AC control voltage 24Vac
- Network frequency 50 Hz
- 1 module
- 2 poles
- Type of contact 2NO
- DIN connection (universal for any switchboard on the market)
- Rated operational current 25 amperes
Schneider contactor 25A 2NA 24VAC 1 module A9C20132
€57.67
Tax included
€57.67
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 63
: 5
Pay in installments with Klarna
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Hager Series
- Control voltage AC 24Vac
- Nominal operating voltage AC 250 V
- Rated operational current 25 amperes
- 1 module
- 2 poles
- Type of contact 2NO
- Mains frequency 50 Hz
- Rated insulation voltage 500 V
- Rated impulse withstand voltage 4 kV
- Mounting method
- Mounting bracket for 35 mm symmetrical DIN rail mounting
- Height 81 mm
- Width 18 mm
- Depth 68.5 mm
- Colour white
- Mechanical life 1000000 cycles
- Tightening torque 0,8 Nm
- Degree of protection IP20
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 24VAC
- Modules: 1
- Poles: 2P
- Amps: 25A
