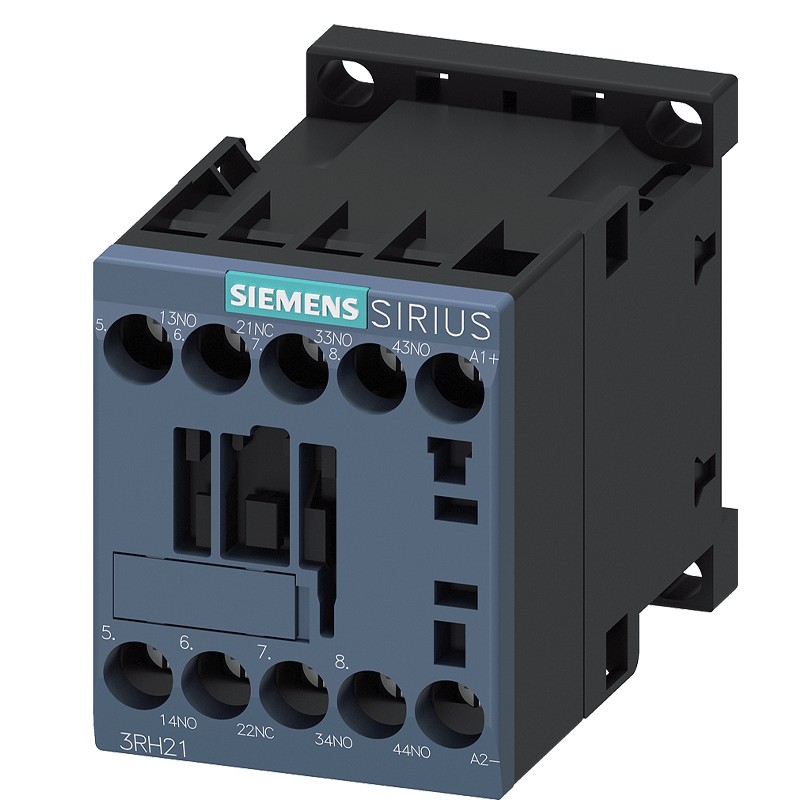

Siemens AUX contactor relay 4NA 230VAC 10A for S00 3RH21401AP00
SIE 3RH21401AP00
4011209828506
Siemens auxiliary contactor relay, for S00 series with the following characteristics:
- Control supply voltage 230 Vac
- Insulation voltage with pollution degree 3 with AC nominal value 690 Vac
- Rated impulse withstand voltage 6 kV
- Operating current 10A
- Number of NO contacts for auxiliary contacts with instantaneous switching 4
- Frequency 50 / 60 Hz
Siemens AUX contactor relay 4NA 230VAC 10A for S00 3RH21401AP00
€29.11
Tax included
€29.11
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
Further Siemens circuit breaker combinations:
Features:
- Siemens series
- Control supply voltage 230 Vac
- Insulation voltage with pollution degree 3 with AC nominal value 690 Vac
- Rated impulse withstand voltage 6 kV
- Operating current 10A
- Number of NO contacts for auxiliary contacts with instantaneous switching 4
- Frequency 50 / 60 Hz
- Mechanical life span (switching cycles) of the contactor typ. 30,000,000
- Degree of protection on front side IP20
- Mounting position vertical mounting surface can be rotated +/-180°, vertical mounting surface can be tilted +/- 22.5° forwards and backwards
- Type of mounting screw and snap-on mounting on 35 mm mounting rail
- Screw clamp connections
- Height 57.5 mm
- Width 45 mm
- Depth 73 mm
There are no reviews
Data sheet
- Type:
- Contactors
- Voltage:
- 230VAC
- Amps:
- 10A
