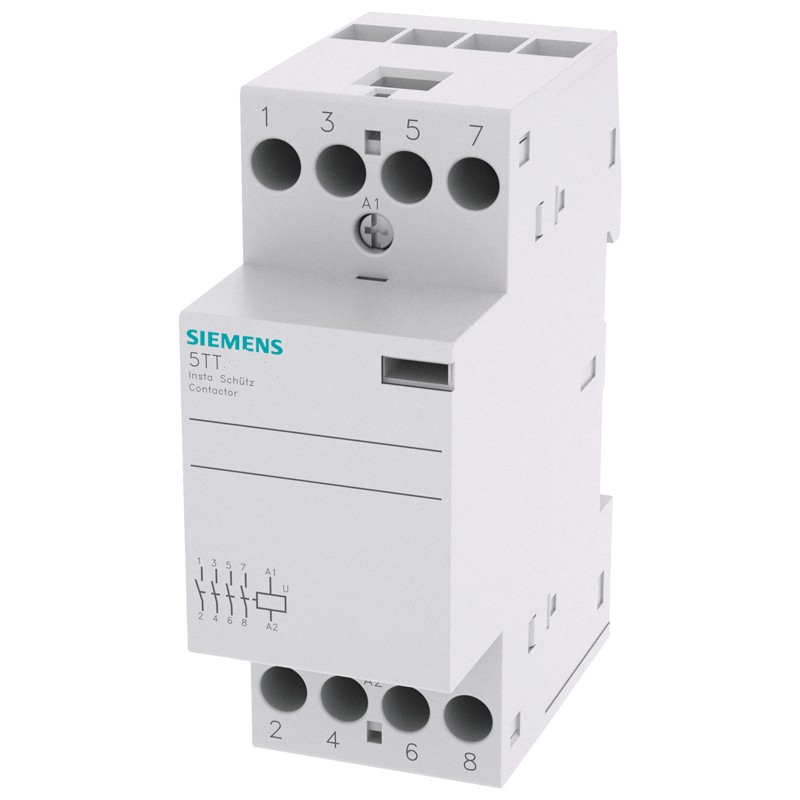

Siemens contactor 4NA 25A 220VAC/DC 2M 5TT50300
SIE 5TT50300
4001869435053
Siemens contactor, with the following characteristics
- Control supply voltage (nominal value 230 V, max nominal value 230 V ,with DC nominal value 220 V)
- 2 modules
- 4 poles
- DIN connection (universal for any switchboard on the market)
- Contact type 4NO
- Operating current 25 amperes
Siemens contactor 4NA 25A 220VAC/DC 2M 5TT50300
€27.38
Tax included
€27.38
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
: 2
Pay in installments with Klarna
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Siemens series
- Operating voltage min 400 V, max 400 V
- Control supply voltage (nominal value 230 V, nominal value / max. 230 V, with DC / nominal value 220 V)
- Operating current 25A
- 2 modules
- 4 poles
- Contact type 4NO
- Degree of protection IP20
- Height 90 mm
- Width 35 mm
- Depth 71 mm
- Recessed depth 64 mm
- Net weight 150 gr
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 230VAC
- Modules: 2
- Poles: 4P
- Amps: 25A
