Comelit video surveillance kit AHD IP67 bullet camera 2.7-13.5mm 5 MP AHKIT008N05A
COE AHKIT008N05A
8023903394696

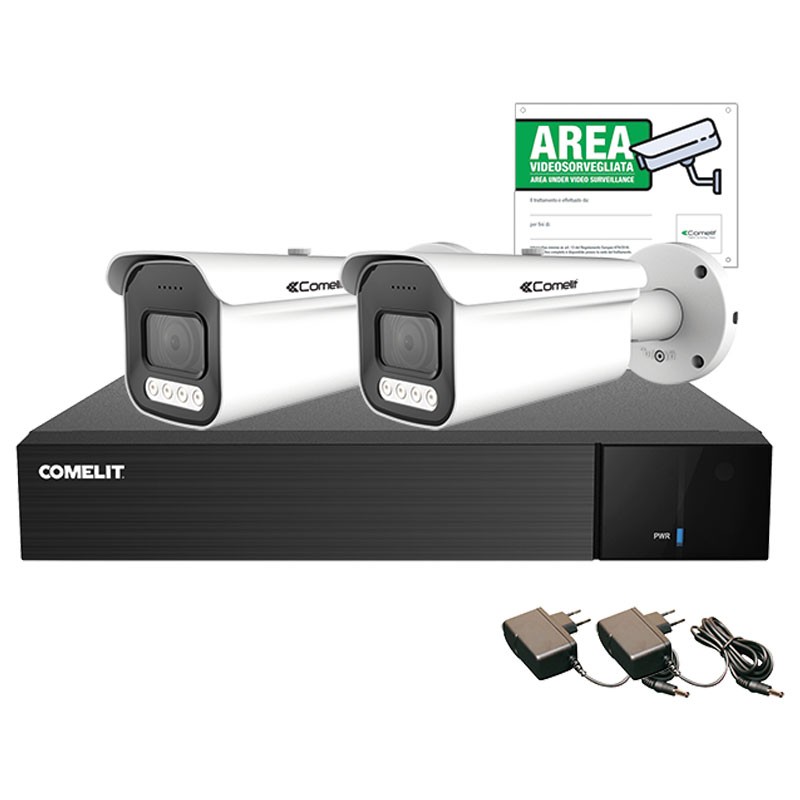

Comelit AHD Video Surveillance KIT consisting of:
- 1 piece digital video recorder (code AHDVR008N05A)
- 2 pieces bullet camera IP67 AHD/TVI/CVI/CVBS 2.7-13.5mm 5 MP (960H) (code AHBCAMS05ZB)

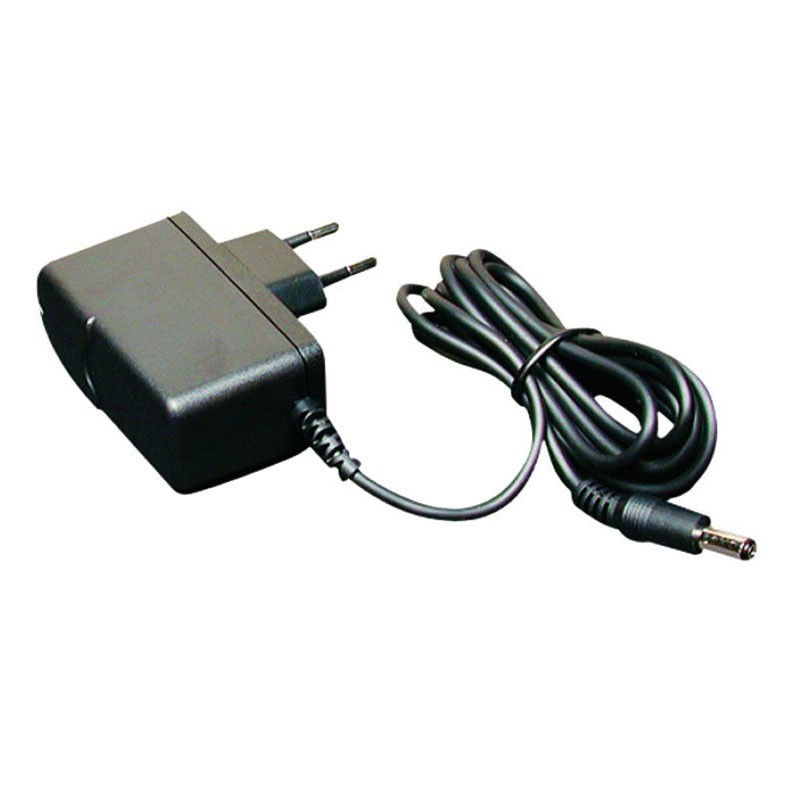

- 2 power supplies 12V
- 1 indicative sign (video surveillance area)
To be purchased separately Comelit metal box for fixing cameras (code JBSVARI66A).
Comelit video surveillance kit AHD IP67 bullet camera 2.7-13.5mm 5 MP AHKIT008N05A
€408.27
Tax included
€408.27
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 24
Pay in installments with Klarna
Frequently bought together
Features of individual KIT components:

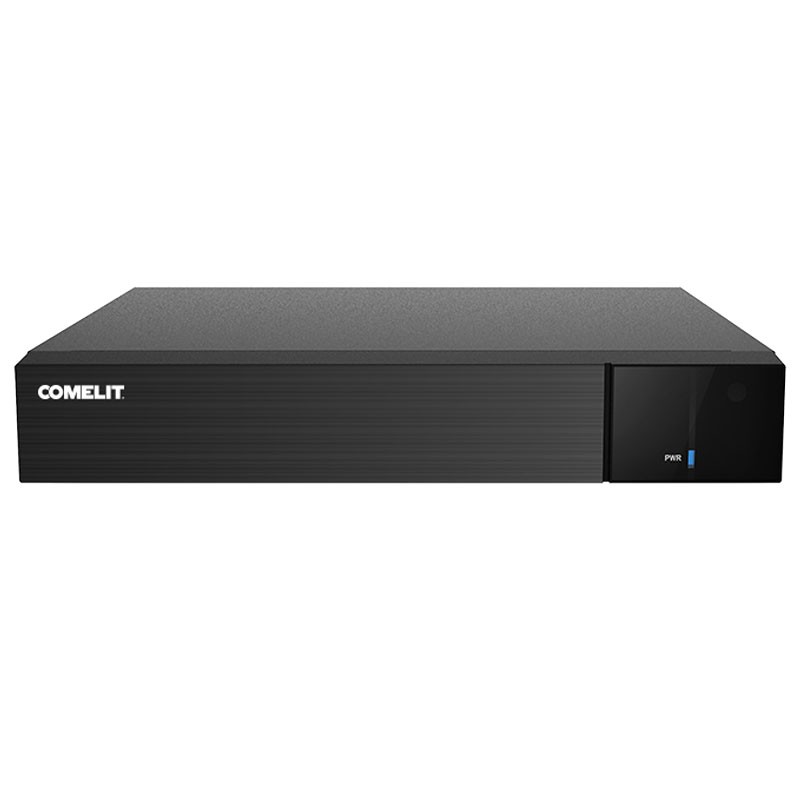

1 piece digital video recorder (part number AHDVR008N05A): 5-hybrid (AHD/TVI/CVI/CVBS/IP) stand-alone digital video recorder, 8 analog video inputs and 4 IP video channels. H.264/H.265 compression. Compatible with browsers: IE/Google Chrome/Edge/Firefox/Safari. 12V power supply included. This DVR connects to Comelit's servers protected by AWS services."
Video recorder specifications:
- Video inputs 8 (BNC) 5MP/4MP/1080P/720P/WD1 + 4 (IP) 5MP
- Main video outputs 1 (VGA), 1 (HDMI), 1920x1080
- Video spot outputs 1 (BNC) Audio inputs/outputs 1 / 1
- Video compression H.264, H.265
- Frame rate in BNC playback/recording: 5MP Lite @10fps; 4MP Lite/1080P @15fps; IP @30fps
- Included hard disk capacity 1TB (10TB max)
- Recording methods Automatic, manual, scheduled, event
- Recording type Dual streaming
- Supported protocols DHCP, HTTP, HTTPS, ONVIF
- IP assignment DHCP, manual
- Max bandwidth (Mbps) 32
- Remote control from IE/Chrome/Edge/Firefox/Safari browser
- Remote control from Comelit CCTV Manager software Remote control from mobile Comelit CCTV APP
- Simultaneously connected users 5
- Main functions Video analysis (only with dedicated cameras)
- Motion detection (zones) 396
- Privacy zones (no.) 4
- Type of connections/ports 1 x Ethernet 10/100/1000 Mbit/s, 2xUSB 2.0
- Fanless Yes
- Power consumption max 8 watts
- Supply voltage (VDC) 12
- Dimensions: Height (mm) 42 Width (mm) 255 Depth (mm) 222
- Weight 1.6 kg
- Type coating materials Metallic
- Product color Black
- Operating temperature (°C) -10/+50
- Operating humidity (RH max) (%) 25-90

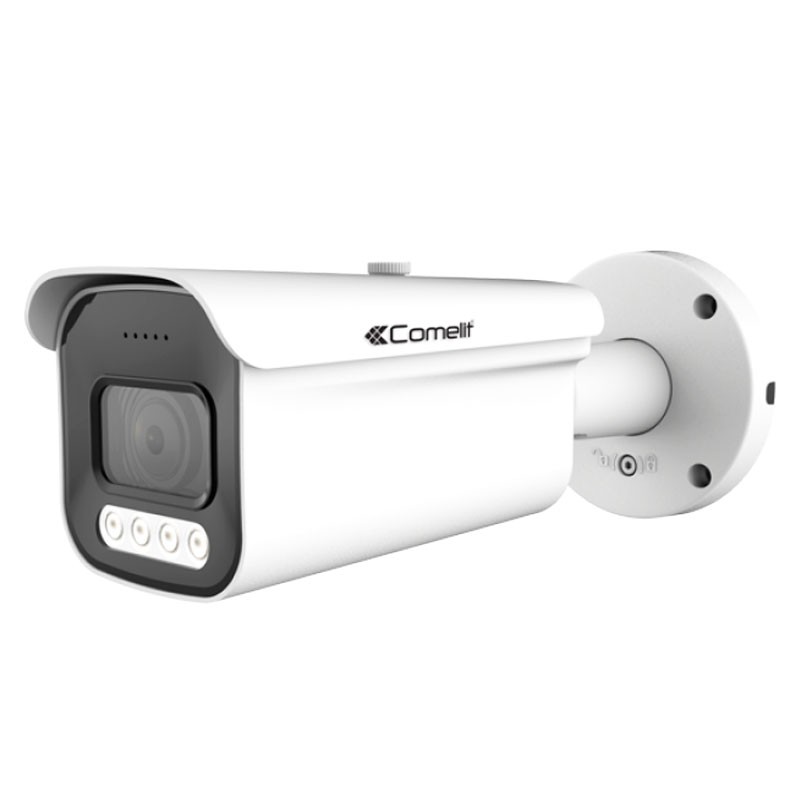

2 pcs IP67 AHD/TVI/CVI/CVBS 2.7-13.5mm 5 MP (960H) bullet camera (code AHBCAMS05ZB):AHD/TVI/CVI/CVBS (960H) bullet camera, 5Mp resolution, 2.7-13.5mm motorized optics, IR LEDs with 40mt range, WDR 120dB, 12Vdc power supply, IP67 waterproof die-cast aluminum case.
Camera Specifications:
- Camera sensor 1/2.8'' CMOS Sony Starvis Technology back-illuminated pixels
- Motorized lens type
- Varifocal lens size (mm) 2.7 ÷ 13.5
- Horizontal field of view (°) 103÷32
- Vertical field of view (°) 54÷18
- Diagonal field of view (°) 124÷33
- Electronic shutter (s) Auto
- Slow shutter Yes
- Sensitivity (lux) 0.1 (color), 0.01 (black and white), 0 (black and white, IR led ON)
- Signal-to-noise ratio (dB) >50 (AGC OFF)
- IR Filter Mechanical
- Video output AHD/TVI/CVI CVBS (960H) Video resolution (H x V - pixels) 1920x1080 (Full-HD 1080p), 2592x1944 (5MP), 4MP
- AHD/TVI frame rate: 5MP@20fps, 4/2MP@30fps. CVI: 4/2MP@30fps
- Main functions Camera control via coaxial cable using UTC protocol
- Backlight Compensation (BLC) BLC
- Digital Mirror Effects (Horizontal, Vertical, 180° Rotation), OSD
- Wide Dynamic Range (WDR) WDR (120dB)
- 3DNR DNR Control
- White Balance Adjustment AWB
- Manual Camera Titration Yes
- IR led illumination distance 4 leds 42µ / 40m (Smart IR)
- Maximum distance with RG59 / UTP coaxial cable 300 / 100
- Degree of protection IP67
- 3-axis camera movement Yes
- CVBS analog video output (BNC - 1 Vpp/75 ohm)
- Supply voltage 12VDC
- Power consumption max 9 Watts
- Power supply type External power supply
- Dimensions: Height (mm) 91 Width (mm) 93 Depth (mm) 263
- Weight 1 kg
- Type coating materials Aluminum
- Case Type Bullet
- Product color White
- Operating temperature (°C) -10/+50
There are no reviews
Data sheet
- Type: Kit Video Surveillance
- Degree of protection: IP67
- System: AHD
- Optical: 2,7-13,5 mm
- Resolution: 5MP
