Urmet AHD 1080N 8-Channel Video Surveillance KIT with 2 Cameras 1097/818
UTD 1097/818
8021156069149

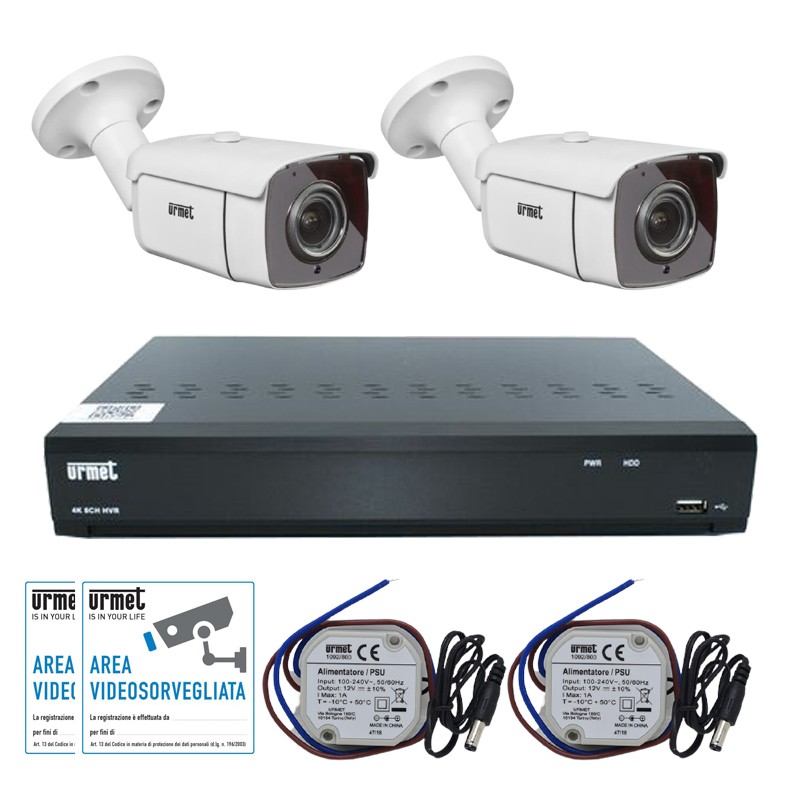

Urmet AHD Video Surveillance KIT consisting of:
- 1 piece video recorder HVR AHD 5M LITE 8 channels (code 1097/578)
- 2 pieces AHD-TVI-CVI 2M 1080P bullet cameras with varifocal 2.8-12mm motorized autofocus optics (code 1096/212)
- 2 pieces power supplies 12 Vdc IP66 (code 1092/803)
- 2 indicative signs (privacy) (code 3000/884)
Urmet AHD 1080N 8-Channel Video Surveillance KIT with 2 Cameras 1097/818
€353.23
Tax included
€353.23
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 22
Pay in installments with Klarna
KIT component specifications:
1 piece HVR AHD 5M LITE 8-channel video recorder (code 1097/578): The HVR AHD 5M lite range features the most advanced functionality, compatibility with Analog, CVI , TVI and AHD 720P, 1080P, 5M IP, IP Wi-Fi cameras. The HVRs are tele-manageable from both Windows and MAC systems, compatible with UVS software and the iUVS pro App that enables convenient management from all smartphones, iPads, and tablets both Android and iOS. Key features also include the UTC function that allows viewing and management of the camera OSD menu directly from the HVR.
Video recorder specifications:
- Compression formats: Video: H.265 / H.264 - Audio: G.711a
- Video inputs: 8-CH input with BNC video / 4-CH input with IP video (up to 12-CH with IP video input) (up to 12-CH with mixed video input: Analog + IP)
- Audio Inputs/Outputs: 8-CH RCA Input / 1-CH RCA Output
- Recording Resolution: 5M Lite (1280x1944)/ 4M Lite (1280x1440) / 1080P (1920x1080) / 720P (1280x720) / WD1(960x576)
- Recording frame rate: Main Stream Analog: 5MP-Lite :12fps (per single ch) / 4MP-Lite:18fps (per single ch) / 1080P:15fps (per single ch) / 720P:PAL:25fps(per single ch) / NTSC:30fps(per single ch) IP:PAL:25fps(per single ch) / NTSC:30fps(per single ch) Sub-stream Analog Max PAL:704*576:10fps(per single ch) NTSC:704*480:10fps(per single ch)
- IP recording bandwidth: 16Mbps ~48Mbps (default 16Mbps, for each analog channel excluded, the bandwidth increases by about 4Mbps)
- Maximum output bandwidth: 64Mbps
- Hard disk interface: Max. 1 Sata HDD (Max 8T)
- HD included: 1000GB hard disk drive (default)
- Storage Spaces: External USB device /e-SATA / Network
- Web software / Multilingual client: Internet Explorer 10/11 / UVS pro
- Intelligent Video Analysis (for coaxial inputs ): PID / LCD / PD / SOUND DETECTION / VIDEO TAMPERING
- Intelligent Video Analysis ( * depending on the IP camera model ):*Perimeter Intrusion Detection (PID), *Line Crossing Detection (LCD), *Stationary Object Detection (SOD), *Pedestrian Detection (PD), *Face Detection (FC), *Crossing Detection (CC), Sound Detection, Video Tampering
- Alarm I/O: 8-CH alarm input, 1-CH alarm output
- PDA Mobile Software : Urmet iUVS PRO (iOS, Android)
- USB Ports : No. 1 - 2.0 + No. 1 - 3.0
- Ethernet : RJ-45 10M/100MB self-adaptive interface
- Network Protocols : TCP/IP, DHCP, UDP, Urmet DDNS / UrmetDDNS2 with ID, P2P, PPPOE, Cloud Storage , SMTP , HTTPS , PPPPoE , FTP , RTSP , UPNP , SNMP
- BNC Output: 1 Out (704*576) Only for SPOT functionality for analog channels
- VGA Output: YES
- HDMI output: YES
- Power Consumption: 10.9W (6.4W without HD)
- Power supply: 12V / 2A
- Operating temperature: 0°C~+40°C / below 90%RH
- Cooling fans: NO
- Dimensions (WXHXP): 300X53X227 mm
- Weight: 3kg
2 pcs AHD-TVI-CVI 2M 1080P bullet cameras with 2.8-12mm motorized varifocal autofocus optics (code 1096/212): AHD 1080P camera is characterized by its easy configuration and video quality. It finds application in various installation contexts with transmission infrastructure through coaxial cable. The use of 1/3-inch high-resolution CMOS sensor and motorized varifocal lens 2.8-12mm, allow to achieve high levels of sensitivity increasing video performance in low light conditions. Completing the features are some of the available special functions such as OSD, 2DNR (digital noise), DWDR (Digital Wide Dynamic Range), switch for AHD-TVI-CVI-CVBS and UTC video output configuration, prepared to receive OSD commands along the coaxial cable, sent from the DVR.
Camera specifications:
- Optics : f 2.8-12mm Varifocal motorized autofocus
- Resolution : (AHD) 2MP@25/30fps - (CVI) 2MP@25/30fps - (TVI) 2MP@12.5/20fps - (CVBS) 720TVL
- Sensitivity : 0.03 Lux @(F1.2,AGC ON); 0 LUX IR ON
- N. IR LEDs/Lighting distance: 2 / max 30m IR ON
- Exposure: Automatic
- Synchronization: Internal
- IR CUT FILTER: YES
- UTC COAX control for OSD: YES
- White balance: ATW/MW
- Backlight compensation: GLOBAL/BLC/CENTRAL/FLT
- Gain Control (AGC): ADJUSTABLE
- Digital 2D Noise Reduction (2DNR): YES
- Digital Wild Dynamic Range (DWDR): YES
- Rated power supply: 12 VDC
- Maximum power consumption: 500mA±5% IR ON
- Operating temperature: -20 / +55°C
- Dimensions (W x H x D): 180x62x62 mm
- Degree of Protection: IP66
- Usage: Indoor / Outdoor
2 pieces power supplies 12 VDC IP66 (code 1092/803):
Features:
- Input voltage: 100-240 Vac, 50/60 Hz
- Rated output voltage: 12 VDC
- Max output current: 1000 mA
- Class: Double insulation
- IP66 degree of protection
- Dimensions (Ø x H): 50 x 23 mm
There are no reviews
Data sheet
- Type: Kit Video Surveillance
- Optical: 2.8-12mm
- Resolution: 2MP (1080P)
- Channels: 8
