Comelit Smart IP Video Surveillance Kit 6MP 8-channel Optical 2.8-12mm IPKIT008N05PA
COE IPKIT008N05PA
8023903420401

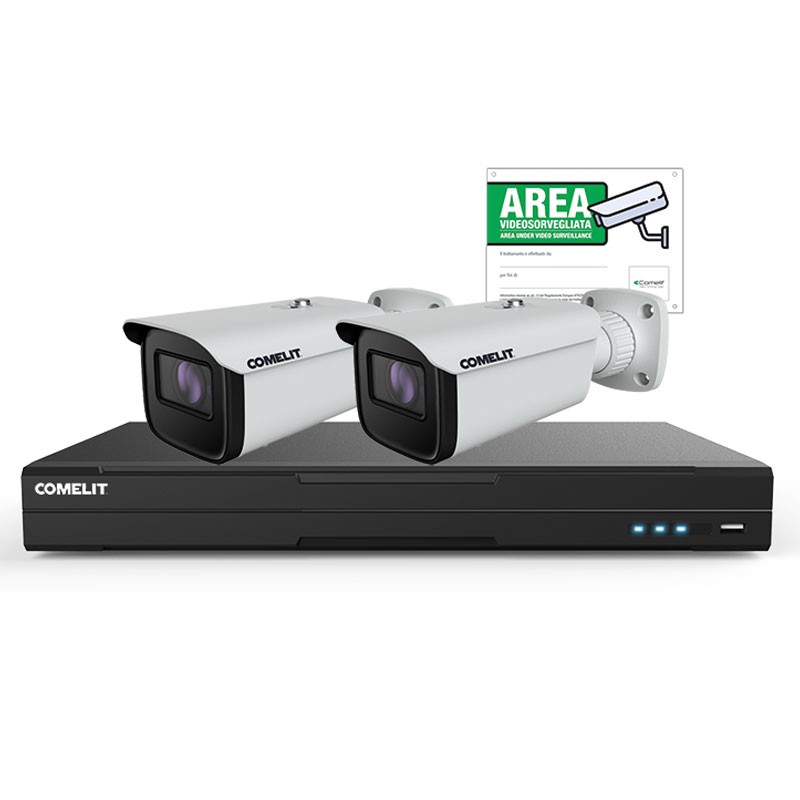

Comelit Smart video surveillance kit consisting of:
- 1 piece 6MP video recorder, POE, AI, 1TB HDD (code IPNVR008N06PA)
- 2 pieces IP bullet cameras 4MP, 2.8-12MM, AI (code IPBCAMN04ZA)
- 1 piece indicative sign (video surveillance area)
Comelit Smart IP Video Surveillance Kit 6MP 8-channel Optical 2.8-12mm IPKIT008N05PA
€574.24
Tax included
€574.24
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 18
Pay in installments with Klarna
Frequently bought together
Kit component specifications:
1 piece video recorder 6MP, POE, AI, HDD 1TB (part number IPNVR008N06PA): "Network video recorder (NVR) for 8 IP channels (8 PoE), max resolution 6MP, video compression H.265S / H.265+ /H.265 /H.264, dual streaming, supports video analytics functions (Line Crossing Detection, Area Intrusion Detection), license plate database. Compatible with browsers: IE/Google Chrome/Edge/Firefox/Safari. Remote control via Comelit CCTV APP and Comelit CCTV Manager software. 48V power supply included. This NVR connects to Comelit's servers protected by AWS services."
NVR features:
- Video inputs 8 (8PoE) @6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF
- Main video outputs 1 (VGA), 1 (HDMI), 1920x1080
- Video compression H.265S / H.265+ / H.265 / H.264
- Frame rate in playback / recording 20fps@6MP
- Included hard disk capacity 1TB (6TB max)
- Embedded Linux operating system
- Recording methods Automatic, manual, scheduled, event
- Recording type Dual streaming
- Maximum no. of channels played simultaneously 1 (4K / 5MP@30fps), 2 (4MP / 3MP@30fps), 4 (FULL-HD / HD@30fps)
- Supported protocols DHCP, HTTP, HTTPS, PPPoE, RTSP, SMTP, TCP, ONVIF
- DHCP assignment, manual
- Max bandwidth (Mbps) 80
- Max bandwidth (Mbps) 40
- Remote control from IE/Chrome/Edge/Firefox/Safari browser
- Remote control from Comelit CCTV Manager software
- Remote control from mobile APP Comelit CCTV
- Main functions Video analysis (only with dedicated cameras)
- Simultaneously connected users 10
- Motion detection (zones) 396
- Privacy zones (no.) 4
- Video signal loss Yes
- System log Yes
- Type of connections/ports 1 x Ethernet 10/100/1000 Mbit/s, 2xUSB 2.0, 8 x Ethernet PoE 10/100 Mbit/s
- Fanless Yes
- Maximum Power Consumption (W) 6
- Maximum power consumption per POE port (W) 12
- Supply voltage (VDC) 48
- Height (mm) 42
- Width (mm) 255
- Depth (mm) 222
- Product weight (g) 2300
- Type coating materials Metallic
- Product color Black
- Operating temperature (°C) -10 to 50
- Operating humidity (RH max) (%) 25 to 90
- Supplied accessories Power supply unit
2 pcs 4MP IP bullet cameras, 2.8-12MM, AI (code IPBCAMN04ZA): Next series bullet IP camera, 2.8÷12mm motorized optics, 4MP@30 fps resolution, IR LEDs with 50-meter range (Smart IR), ONVIF compatible. Video analysis functions: Line Crossing Detection, Area Intrusion Detection. WDR 120Db, H.265/H.264 video compression, SD slot (max 256GB). Audio: 1 in. IP67 waterproof die-cast aluminum enclosure, 12VDC/ PoE IEEE802.3af power supply. Browser compatible: IE/Google Chrome/Edge/Firefox/Safari. Compatible accessories: JBA-BA, CMA-BA, WMA-BA, PMA-A, AMA-A.
Technical features of the two cameras:
- 1/3" CMOS Ultra Starlight camera sensor
- Lens Type Motorized
- Effective pixels (H x V - pixels) 2560x1440
- Lens size varifocal optics (mm) 2.8 ÷ 12
- Horizontal field of view (°) 92.7÷29.8
- Vertical field of view (°) 48÷17
- Diagonal field of view (°) 110.6÷36.4
- Electronic shutter (s) 1/2 ÷ 1/100000
- Sensitivity (lux) 0.005 (color), 0 (black and white, IR led ON)
- Video transmission Triple streaming
- Management software Comelit CCTV Manager
- Video resolution (H x V - pixels) 4MP
- Video compression H.264, H.265, MJPEG
- Frame rate 30fps
- Supported protocols DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, PPPoE, RTSP, SMTP, UDP, ONVIF
- Firmware update via network Yes
- Simultaneously connected users 3 (live)
- Remote viewing from Internet Explorer, Firefox, Chrome, Safari browsers
- Remote control from mobile APP Comelit CCTV FEATURES
- Main Functions 3D-DNR, BLC, Defog
- Motion detection (zones) 396
- Video analysis Line crossing, area entry
- Privacy zones (no.) 4
- Backlight compensation (BLC) BLC Wide dynamic range (WDR) WDR (120dB) 3D-DNR control
- White balance adjustment AWB, Indoor, Manual, Outdoor
- Exposure control Manual, Automatic
- Brightness Adjustment Yes
- Camera Titration Yes C
- IR led illumination distance 50m
- Vandal-proof degree of protection IK IK10
- IP67 degree of protection
- Audio inputs/outputs 1/0
- LAN output type Ethernet 10/100 Mbit/s (RJ45)
- SD card support (card not supplied) Micro-SD (256GB max)
- Supply voltage 12VDC
- Power consumption max (W) 8
- PoE Power Supply Yes
- Height (mm) 70.4
- Width (mm) 79.5
- Depth (mm) 218.1
- Product weight (g) 670
- Coating material type
- Die-cast aluminum
- Case type Bullet
- Product color White
- Operating temperature (°C) -30 to 60
- Operating humidity (RH max) (%) 25 ÷ 95
There are no reviews
Data sheet
- Type: Kit Video Surveillance
- Degree of protection: IP67
- System: IP
- Optical: 2.8-12mm
- Resolution: 6MP
- Channels: 8
