Comelit Smart IP Video Surveillance Kit 6MP IP67 4 Channel IPKIT004N05PA
COE IPKIT004N05PA
8023903420395

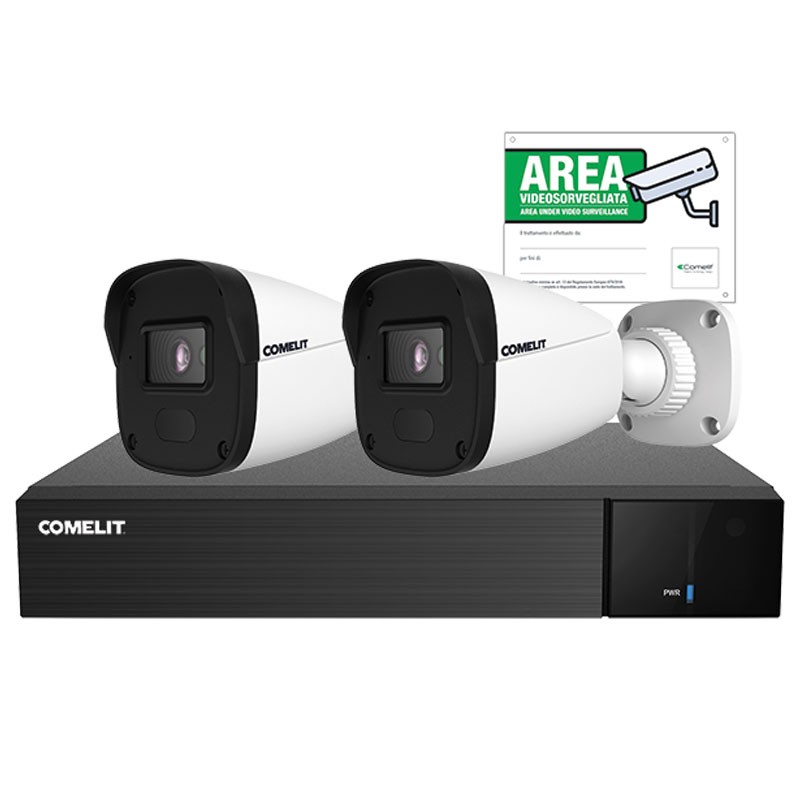

Comelit Video Surveillance Kit consisting of:
- 1 piece network video recorder (NVR 4CH, 6MP, POE, AI, HDD 1TB) (code IPNVR004N06PA)
- 2 pieces IP bullet cameras 4MP, 2.8MM, AI (code IPBCAMN04F01A)
- 1 piece indicative sign (video surveillance area)
Comelit Smart IP Video Surveillance Kit 6MP IP67 4 Channel IPKIT004N05PA
€364.02
Tax included
€364.02
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 27
Pay in installments with Klarna
Frequently bought together
Kit Components Specifications:

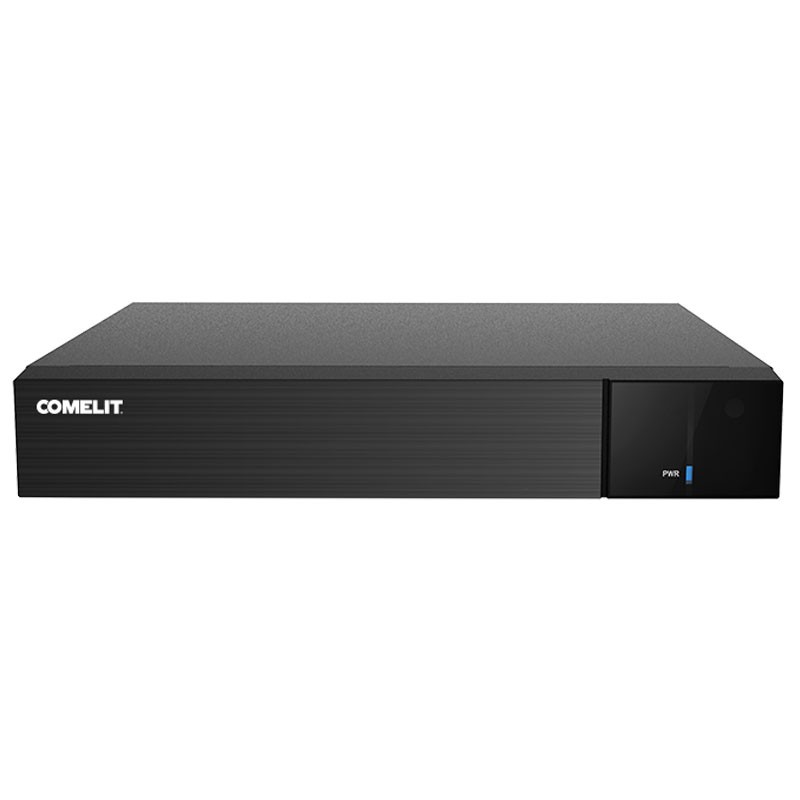

1 piece Network Video Recorder (NVR 4CH, 6MP, POE, AI, HDD 1TB) (part number IPNVR004N06PA): Network Video Recorder (NVR) for 4 IP channels (4 PoE), max resolution 6MP, H.265S / H.265+ /H.265 /H.264 video compression, dual streaming, supports video analytics functions (Line Crossing Detection, Area Intrusion Detection) Compatible with browsers: IE/Google Chrome/Edge/Firefox/Safari. Remote control via Comelit CCTV APP and Comelit CCTV Manager software. 48V power supply included. This NVR connects to Comelit's servers protected by AWS services."
NVR features:
- Video inputs 4 (4PoE) @6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF
- Main video outputs 1 (VGA), 1 (HDMI), 1920x1080
- Video compression H.265S / H.265+ / H.265 / H.264
- Frame rate in playback / recording 20fps@6MP
- Included hard disk capacity 1TB (6TB max)
- Recording methods Automatic, manual, scheduled, event
- Recording type Dual streaming
- Supported protocols DHCP, HTTP, HTTPS, PPPoE, RTSP, SMTP, TCP, ONVIF
- IP assignment DHCP, manual
- Max. bandwidth (Mbps) 28
- Remote control from IE/Chrome/Edge/Firefox/Safari browser
- Remote control from Comelit CCTV Manager software
- Remote control from mobile APP Comelit CCTV
- Simultaneously connected users 10
- Main functions Video analysis (only with dedicated cameras)
- Motion detection (zones) 396
- Privacy zones (no.) 4
- Type of connections/ports 1 x Ethernet 10/100/1000 Mbit/s, 2xUSB 2.0, 4 x Ethernet PoE 10/100 Mbit/s
- Fanless Yes
- Maximum Power Consumption (W) 6
- Maximum power consumption per POE port (W) 12
- Supply voltage (VDC) 48
- Height (mm) 42
- Width (mm) 255
- Depth (mm) 222
- Weight 2KG
- Type coating materials Metallic
- Product color Black
- Operating temperature (°C) -10 to 50
- Operating humidity (RH max) (%) 25 ÷ 90
- Included accessories: Power supply

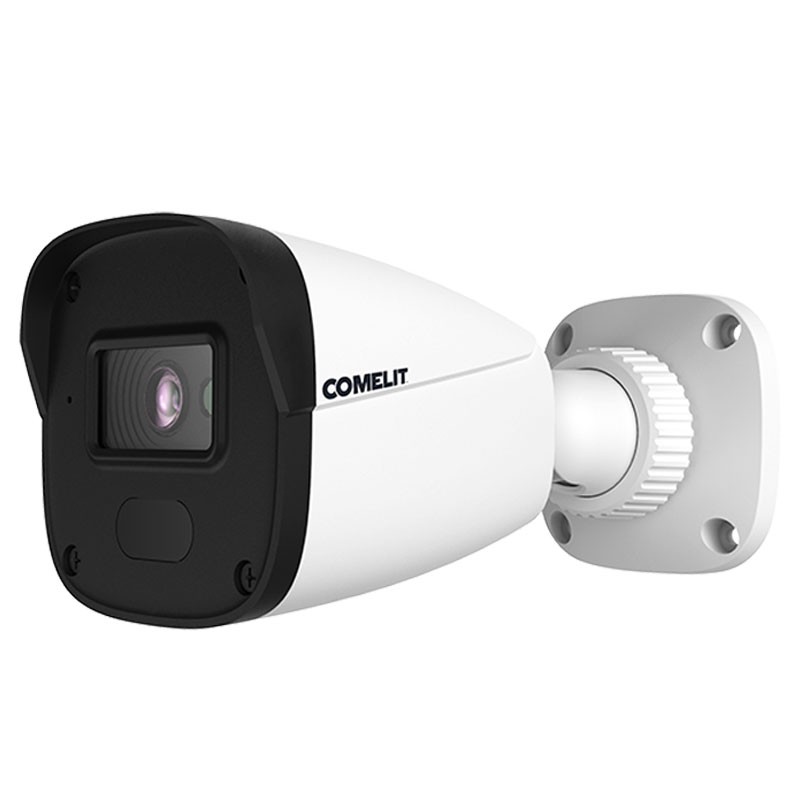

2 pcs 4MP bullet IP cameras, 2.8MM, AI (code IPBCAMN04F01A): Next series bullet IP camera, 2.8mm fixed lens, 4MP@30 fps resolution. IR led with 20m range (Smart IR), ONVIF compatible. Video analysis functions: Line crossing detection, Area intrusion detection. WDR 120Db, H.265/H.264/MJPEG video compression, IP67, 12VDC/ PoE power supply. Compatible with browsers: IE/Google Chrome/Edge/Firefox/Safari. Compatible accessories to be purchased separately: JBA-BA, CMA-BA, WMA-BA, PMA-A, AMA-A.
Features of the 2 cameras:
- 1/3'' CMOS camera sensor
- Lens size fixed lens (mm) 2.8
- Effective pixels (H x V - pixels) 2560x1440
- Horizontal field of view (°) 95
- Vertical field of view (°) 53
- Diagonal field of view (°) 115.2
- Electronic shutter (s) 1/3 ÷ 1/100000
- Sensitivity (lux) 0.03 (color), 0.001 (black and white), 0 (black and white, IR led ON)
- Video transmission Triple streaming
- Management software Comelit CCTV Manager
- Video resolution (H x V - pixels) 4MP
- Video compression H.264, H.265, MJPEG
- Frame rate 30fps
- Supported protocols DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, PPPoE, QoS, RTSP, UDP, ONVIF
- Firmware update via network Yes
- Simultaneously connected users 4 (Live)
- Remote viewing from Internet Explorer, Firefox, Chrome, Safari browsers
- Remote control by mobile APP Comelit CCTV
- Main functions 3D-DNR, BLC, Defog
- Motion detection (zones) 396
- Video analysis Line crossing, area entry
- Privacy zones (no.) 4
- Backlight compensation (BLC) BLC
- Wide Dynamic Range (WDR) WDR (120dB)
- 3D-DNR Control
- White balance adjustment AWB, Indoor, Manual, Outdoor
- Exposure Control Automatic
- Brightness Adjustment Yes
- Camera Titration Yes
- IR led illumination distance 20m
- IP Rating IP67
- LAN output type Ethernet 10/100 Mbit/s (RJ45)
- Supply voltage 12VDC
- Power consumption max (W) 3.5
- Power supply PoE Yes
- Height (mm) 73.7
- Width (mm) 74.7
- Depth (mm) 161.5
- Weight 270 grams
- Casing material type Steel and plastic
- Case type Bullet
- Product color Black and white
- Operating temperature (°C) -30 ÷ 60
- Operating humidity (RH max) (%) 25 ÷ 95
There are no reviews
Data sheet
- Type: Kit Video Surveillance
- Degree of protection: IP67
- System: IP
- Optical: 2.8 mm
- Resolution: 6MP
- Channels: 4
