Comelit Smart AHD Video Surveillance Kit 5MP 4 Channels AHKIT004N05A
COE AHKIT004N05A
8023903410815

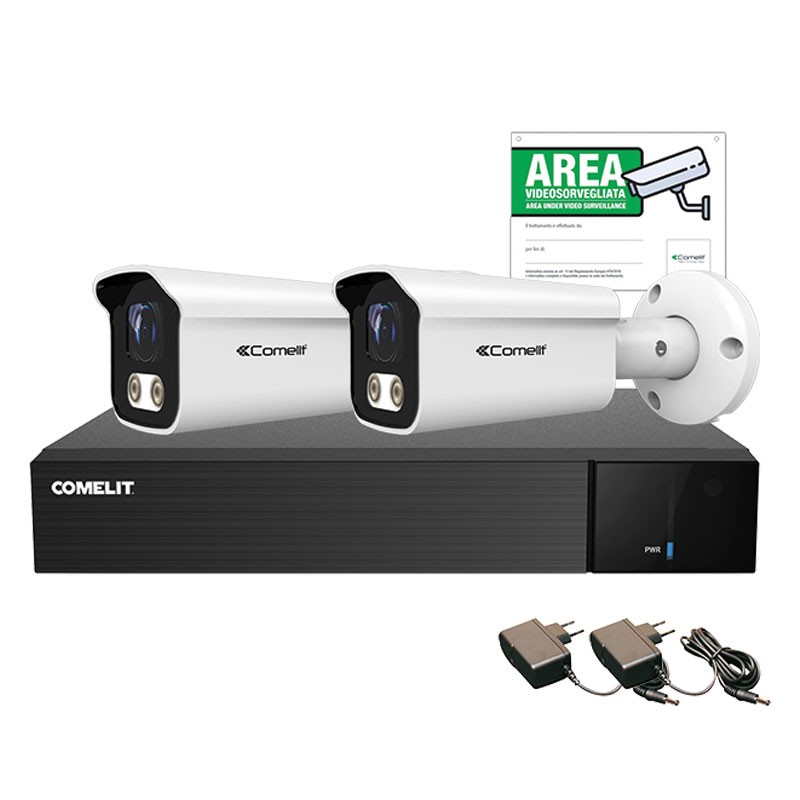

Comelit Smart AHD Video Surveillance Kit consisting of:
- 1 piece 5MP video recorder, AI, HDD 1 TB (code AHDVR004N05A)
- 2 pieces AHD bullet cameras 5MP, 3.6MM, IR 25M (code AHBCAMS05FB)

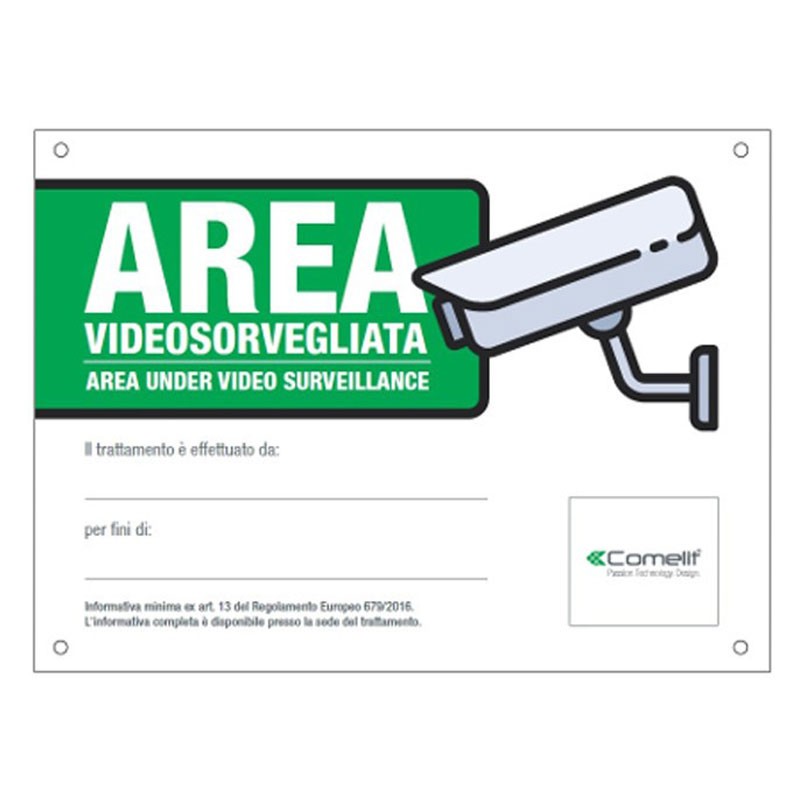

- 1 piece indicative sign (video surveillance area)

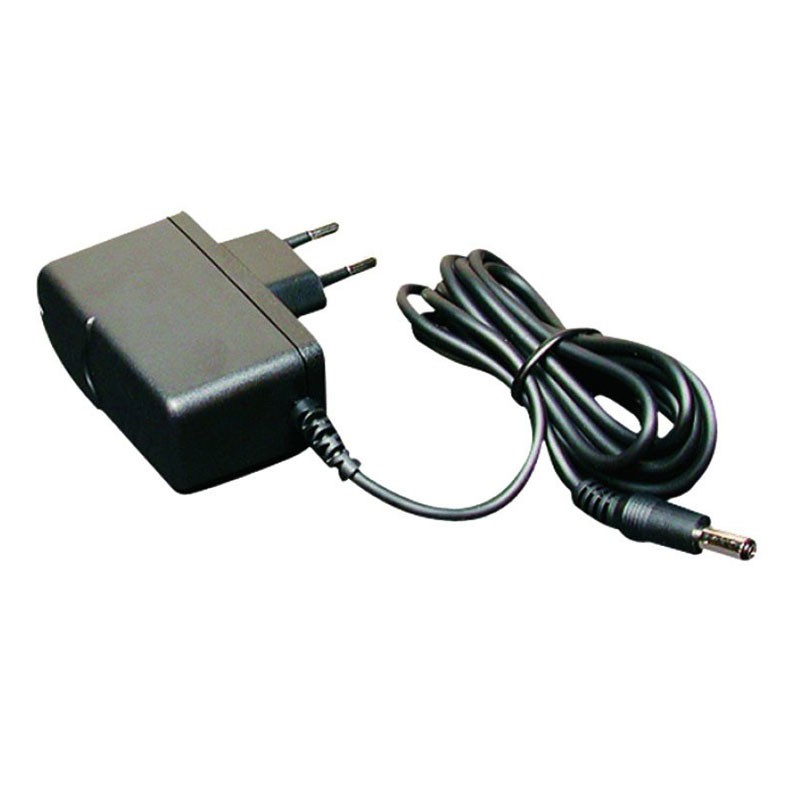

- 2 pieces plug-in power supplies
Comelit Smart AHD Video Surveillance Kit 5MP 4 Channels AHKIT004N05A
€282.14
Tax included
€282.14
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 29
Pay in installments with Klarna
Frequently bought together
Kit component specifications:

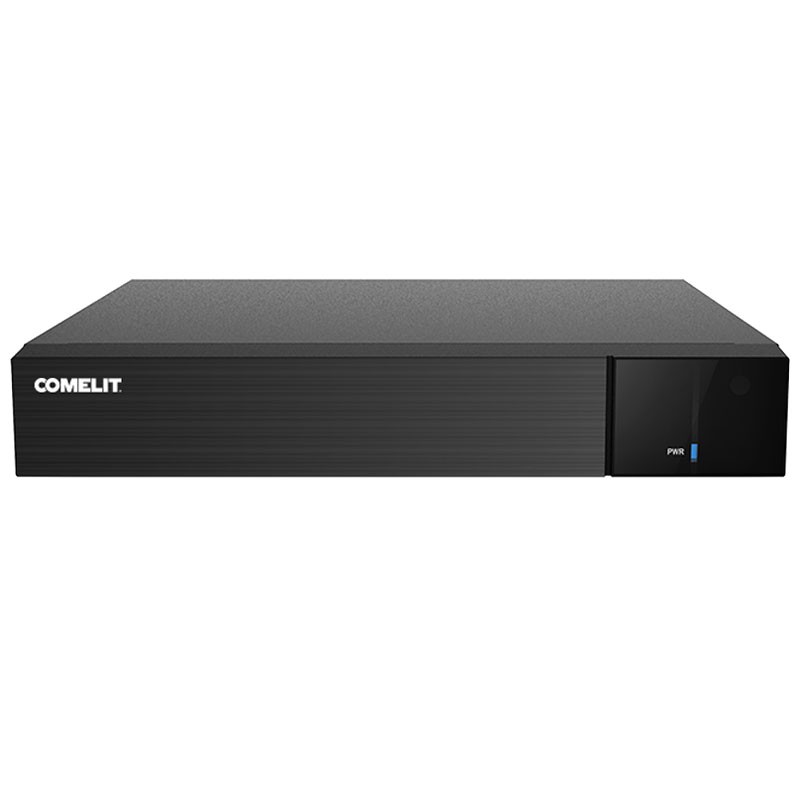

1 piece 5MP video recorder, AI, HDD 1 TB (part number AHDVR004N05A): "5-hybrid (AHD/TVI/CVI/CVBS/IP) stand-alone digital video recorder, 4 analog video inputs and 2 IP video channels. H.264/H.265 compression. Compatible with browsers: IE/Google Chrome/Edge/Firefox/Safari. 12V power supply included. This DVR connects to Comelit's servers protected by AWS services."
Video recorder features:
- Video inputs 4 (8PoE) @6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF
- Main video outputs 1 (VGA), 1 (HDMI), 1920x1080
- Video compression H.264, H.265
- Video spot outputs 1 (BNC)
- Audio inputs/outputs 1 / 1
- BNC playback/recording frame rates: 5MP Lite @10fps; 4MP Lite/1080P @15fps; IP @30fps
- Provided hard disk capacity 1TB (10TB max)
- Recording methods Automatic, manual, scheduled, event
- Recording type Dual streaming
- Supported protocols DHCP, HTTP, HTTPS, ONVIF
- DHCP assignment, manual
- Max bandwidth (Mbps) 16
- Remote control from IE/Chrome/Edge/Firefox/Safari browser
- Remote control from Comelit CCTV Manager software
- Remote control from mobile APP Comelit CCTV
- Main functions Video analysis (only with dedicated cameras)
- Simultaneously connected users 5
- Motion detection (zones) 396
- Privacy zones (no.) 4
- Type of connections/ports 1 x Ethernet 10/100/1000 Mbit/s, 2xUSB 2.0
- Fanless Yes
- Power consumption max (W) 5
- Supply voltage (VDC) 12
- Height (mm) 42
- Width (mm) 255
- Depth (mm) 222
- Product weight (g) 1580
- Type coating materials Metallic
- Product color Black
- Operating temperature (°C) -10 to 50
- Operating humidity (RH max) (%) 25 to 90
- Supplied accessories Power supply unit

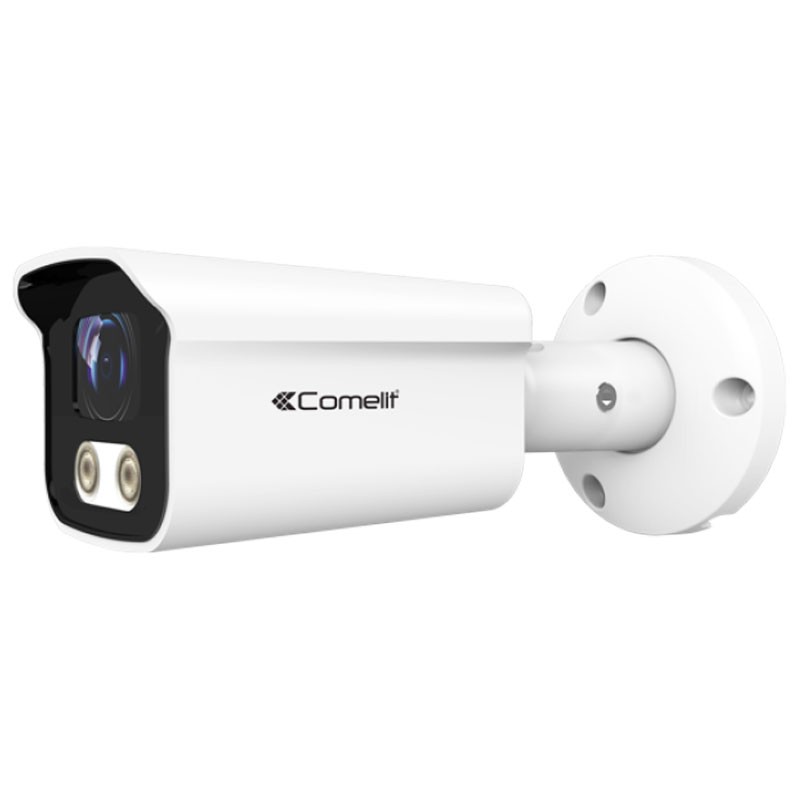

2 pcs AHD bullet 5MP, 3.6MM, IR 25M cameras (code AHBCAMS05FB): AHD/TVI/CVI/CVBS (960H) bullet camera, 5Mp resolution, 3.6mm fixed optics, IR LEDs with 25mt range, DWDR 50dB, 12Vdc power supply, IP67 waterproof die-cast aluminum housing.
Technical features of the two cameras:
- 1/3'' CMOS Progressive scan camera sensor
- Lens size fixed lens (mm) 3.6
- Lens type F2.0
- Horizontal field of view (°) 76
- Vertical field of view (°) 43
- Electronic shutter (s) auto
- Sensitivity (lux) 0.01 (color), 0 (black and white, IR led ON)
- Signal-to-noise ratio (dB) >50 (AGC OFF)
- IR Filter Mechanical
- Video Output AHD/TVI/CVI/CVBS (960H)
- Video resolution (H x V - pixels) 1920x1080 (Full-HD 1080p), 2592x1944 (5MP), 4MP
- AHD/TVI frame rate: 5MP@20fps, 4/2MP@30fps. CVI: 4/2MP@30fpsù
- Main functions Camera control via coaxial cable using UTC protocol
- Compensation Against Light (BLC) BLC
- Digital Mirror Effects (Horizontal, Vertical, 180° Rotation), OSD
- Wide Dynamic Range (WDR) D-WDR (50dB)
- 3D DNR Control
- AWB white balance adjustment, Manual
- Automatic Gain Control (AGC) S
- Camera Titration Yes
- IR led illumination distance 2 leds 42µ / 25m (Smart IR)
- Maximum distance with RG59 / UTP coaxial cable 300 / 100
- IP67 Degree of Protection
- Camera movement on 3 axes Yes
- CVBS analog video output (BNC - 1 Vpp/75 ohm)
- Supply voltage 12VDC
- Max. power consumption (W) 6
- Power supply type External power supply
- Height (mm) 66
- Width (mm) 72
- Depth (mm) 175
- Product weight (g) 550
- Type coating materials Aluminum
- Case type Bullet
- Product color White
- Operating temperature (°C) -10 to 50
There are no reviews
Data sheet
- Type: Kit Video Surveillance
- Degree of protection: IP67
- System: AHD
- Optical: 3.6 mm
- Resolution: 5MP
- Channels: 4
