Urmet AHD 5M 4-channel Video Surveillance KIT with 2 cameras 1097/814
UTD 1097/814
8021156069132

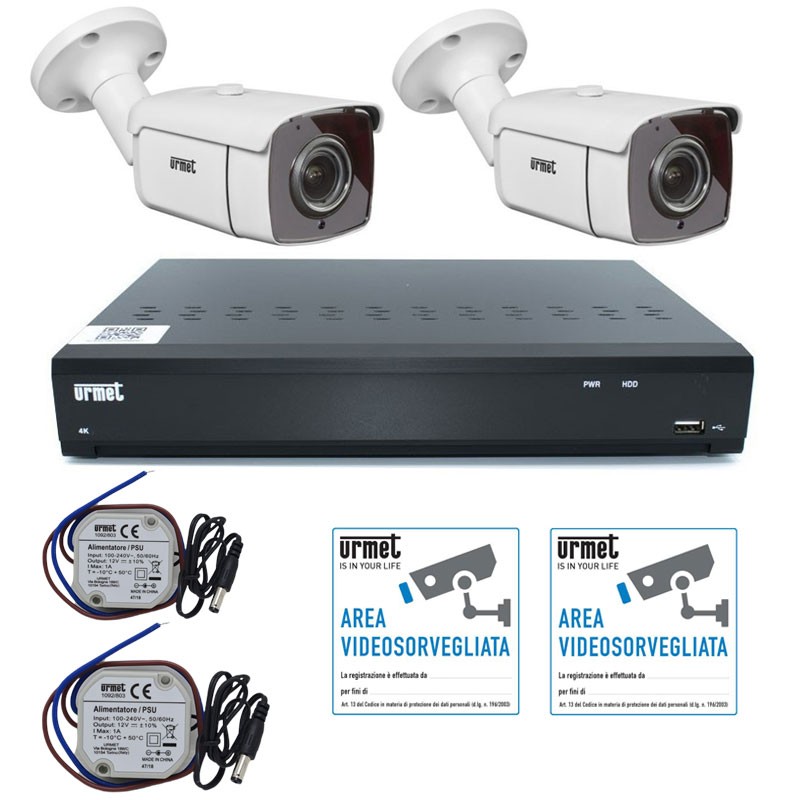

Urmet AHD 5M Video Surveillance KIT consisting of:
- 1 piece Video Recorder NVR Urmet Lite AHD 5M-N 4 Channels (code 1097/574)
- 2 pieces Urmet AHD 1080P Bullet Cameras 2.8mm optics (code 1096/210)
- 2 pcs Urmet IP6612 Vdc Camera Power Supplies 1A (code 1092/803)
- 2 indicative signs (video surveillance privacy area)
Urmet AHD 5M 4-channel Video Surveillance KIT with 2 cameras 1097/814
€259.63
Tax included
€259.63
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 15
Pay in installments with Klarna
KIT component specifications:
1 piece Video recorder NVR Urmet Lite AHD 5M-N 4 Channels (code 1097/574): The HVR range AHD 5M lite is characterized by the most advanced features, compatibility with Analog, CVI , TVI and AHD 720P, 1080P, 5M IP, IP Wi-Fi cameras. The HVRs are tele-manageable from both Windows and MAC systems, compatible with UVS software and the iUVS pro App that enables convenient management from all smartphones, iPads, and tablets both Android and iOS. Key features also include the UTC function that allows viewing and management of the cameras' OSD menu directly from HVR.
Features:
- Compression formats: Video: H.265 / H.264 - Audio: G.711a
- Audio inputs/outputs: 4-CH RCA input / 1-CH RCA output
- Video inputs: 4-CH input with BNC video / 2-CH input with IP video
- HD included: 1000 GB hard disk drive (default)
- Technology Analog, CVI , TVI and AHD 720P, 1080P, 5M IP, IP Wi-Fi.
- Compression Formats: Video: H.265 / H.264 - Audio: G.711a
- Video inputs: 4-CH input with BNC video / 2-CH input with IP video (up to 6-CH with IP video input) (up to 6-CH with mixed video input: Analog + IP)
- Audio Inputs/Outputs: 4-CH RCA Input / 1-CH RCA Output
- Recording Resolution: 5M Lite (1280x1944)/ 4M Lite (1280x1440) / 1080P (1920x1080) / 720P (1280x720) / WD1(960x576)
- Recording frame rate: Main Stream Analog: 5MP-Lite:12fps (per single ch) / 4MP-Lite:16fps (per single ch) / 1080P:15fps (per single ch) / 720P:PAL:25fps(per single ch) / NTSC:30fps(per single ch) IP:PAL:25fps(per single ch) / NTSC:30fps(per single ch) Sub-stream Analog Max PAL:704*576:10fps(per single ch) NTSC:704*480:10fps(per single ch)
- IP recording bandwidth: 8Mbps ~24Mbps (default 8Mbps, for each analog channel excluded, the bandwidth increases by about 4Mbps)
- Maximum output bandwidth: 48Mbps
- Hard disk interface: Max. 1 Sata HDD (Max 8T)
- HD included: 1000GB hard disk drive (default)
- Storage Spaces: External USB device /e-SATA / Network
- Web software / Multilingual client: Internet Explorer 10/11 / UVS pro
- Intelligent Video Analysis (for coaxial inputs ): PID / LCD / PD / SOUND DETECTION / VIDEO TAMPERING
- Intelligent Video Analysis (based on IP camera model ): Perimeter Intrusion Detection (PID), Line Crossing Detection (LCD), Stationary Object Detection (SOD), Pedestrian Detection (PD), Face Detection (FC), Crossing Count (CC), Sound Detection, Video Tampering
- Alarm I/O: 4-CH alarm input, 1-CH alarm output
- PDA Mobile Software : Urmet iUVS PRO (iOS, Android)
- USB Ports : No. 2 - 2.0
- Ethernet : 1 RJ45 10/100 Base-T
- Network Protocols : TCP/IP, DHCP, UDP, Urmet DDNS / UrmetDDNS2 with ID, P2P, PPPOE, Cloud Storage , SMTP , HTTPS , PPPPoE , FTP , RTSP , UPNP , SNMP
- BNC Output: 1 Out (704*576) Only for SPOT functionality for analog channels
- VGA Output: YES
- HDMI output: YES
- Power Consumption: 8.1W ( 3.6W without HD )
- Power supply: 12V / 2A
- Operating temperature: 0°C~+40°C / below 90%RH
- Cooling fans: NO
- Dimensions (WXHXP): 300X53X227 mm
- Weight: 3kg
2 pcs Urmet AHD 1080P Bullet Cameras 2.8mm optics (code 1096/210): Urmet AHD-TVI-CVI Bullet Camera, 2M 1080P resolution fixed optics DAY&NIGHT Autofocus 2.8mm. The AHD 1080P camera is characterized by its easy configuration and video quality. It finds application in various installation contexts with transmission infrastructure through coaxial cable. The use of the 1/3-inch high-resolution CMOS sensor and the 2.8mm lens, makes it possible to achieve high levels of sensitivity by increasing video performance in low-light conditions. Completing the features are some of the available special functions such as OSD, 2DNR (digital noise), DWDR (Digital Wide Dynamic Range), switch for AHD-TVI-CVI-CVBS and UTC video output configuration, prepared to receive OSD commands along the coaxial cable, sent from the DVR.
Features:
- Optics : f 2.8mm fixed
- Resolution : (AHD) 2MP@25/30fps - (CVI) 2MP@25/30fps - (TVI)
- 2MP@12.5/20fps - (CVBS) 720TVL
- Sensitivity : 0.03 Lux @(F1.2,AGC ON); 0 LUX IR ON
- N. IR LEDs/Lighting distance: 2 / max 30m IR ON
- Exposure: Automatic
- Synchronization: Internal
- IR CUT FILTER: YES
- UTC COAX control for OSD: YES
- White balance: ATW/MW
- Backlight compensation: GLOBAL/BLC/CENTRAL/FLT
- Gain Control (AGC): ADJUSTABLE
- Digital 2D Noise Reduction (2DNR): YES
- Digital Wild Dynamic Range (DWDR): YES
- Rated power supply: 12 VDC
- Maximum power consumption: 500mA±5% IR ON
- Operating temperature: -20 / +55°C
- Dimensions (W x H x D): 180x62x62 mm
- Degree of Protection: IP66
- Usage: Indoor / Outdoor
2 pcs Urmet IP6612 VDC 1A camera power supplies (part number 1092/803):
Features:
- Input voltage: 230 Vac
- Frequency 50/60 Hz
- Rated output voltage: 13.2 Vdc - 1200 mA
- Max output current: 1000 mA
- Double insulation
- Indoor use
- IP66 degree of protection
- Weight 135 grams
- Dimensions (W x H x D) 30 x 43 x 82 mm
- Dimensions (Ø x H): 50 x 23 mm
There are no reviews
Data sheet
- Type: Kit Video Surveillance
- Optical: 2.8 mm
- Resolution: 2MP (1080P)
- Channels: 4
