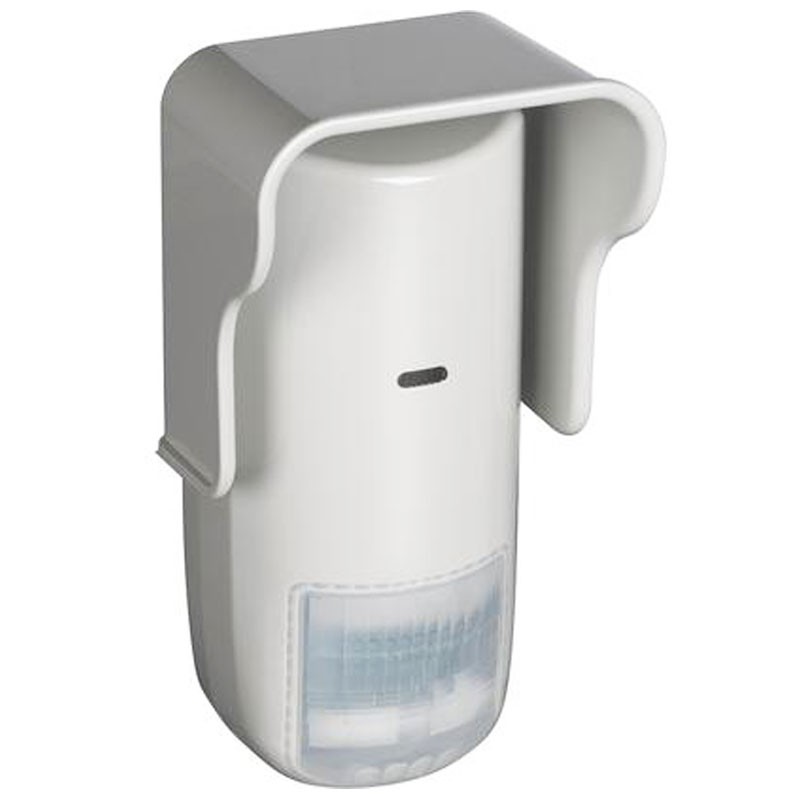

Bticino 4274 outdoor triple technology sensor
BTI 4274
8005543591079
Triple technology outdoor detector with the following features:
- Supply voltage: 9.6 -14.5 Vdc
- Absorption: 50 mA max
- Relay alarm solid state isolation 1500 Vrms
- Tampe switch: form A (NC) 50 mA at 30 Vdc
- Sensitivity: DFIR - selection: 2.3 steps or 6.7 steps
- Microwave operating frequency: 10 GHz
- Triple technology with anti-intrusion, pet immunity and anti-masking function
Bticino 4274 outdoor triple technology sensor
€235.83
Tax included
€235.83
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Outdoor triple technology motion detection sensor (2 PIR+MW) with anti-masking. It is equipped with a MICROWAVE DOPPLER sensor and a DFIR (DOUBLE FREQUENCY INFRARED) system, with 2 directional sensors with multiple elements (1 DOUBLE and 1 FOURFOLD) suitable to reject any false alarm caused also by oscillatory and repetitive movements (anti-oscillation, e.g. tree branches). Together, the signals generated by the 2 systems are processed by an algorithm capable of signaling the presence of intruders, distinguishing it very effectively from false alarms. The 4274 motion sensor is therefore able to perform the following functions: anti-oscillation, anti-masking and animal immunity.
Other features:
- Range: 15 meters
- IR sensor: two sensitive areas (dual elements) ; four sensitive areas (dual elements) (DFRI)
- Microwave range: 20 - 100% adjustable
- Event Detection: DFIR anti-oscillation processor against false alarms
- White light immunity 25000 lux
- Operating temperature: (- 10) - (+ 55) °C
- Degree of protection IP65
- Overall dimensions: 171 x 76 x 61mm (H x W x D)
There are no reviews
Data sheet
- Type: Sensors
- System: Pet Immunity
