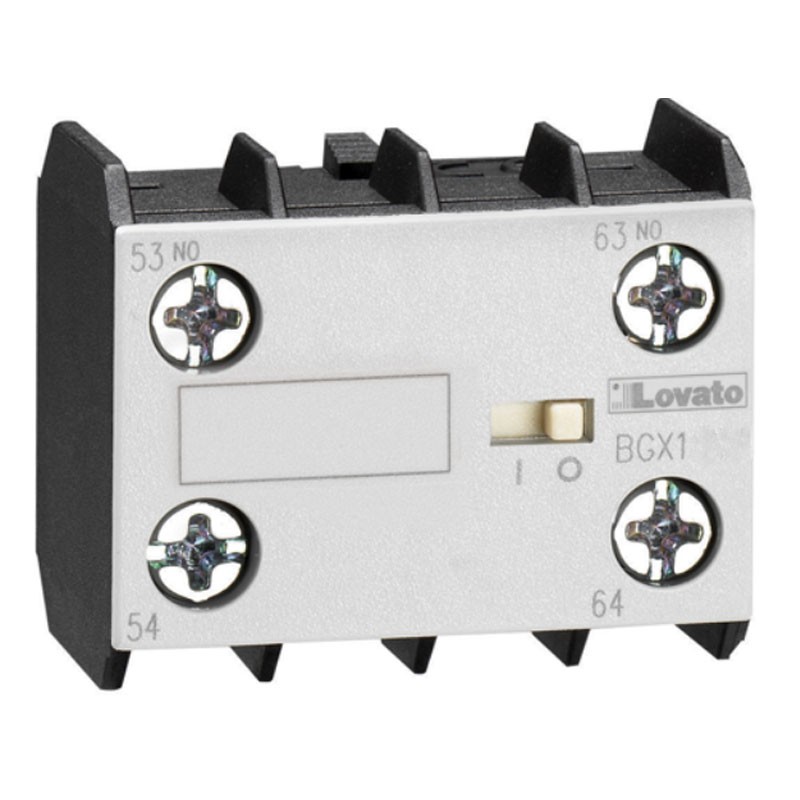

Lovato auxiliary contact for mini contactor 1NA+1NC 11BGX1011
LOV 11BGX1011
8013975080467
Lovato auxiliary contact for BG series mini-contactors, with the following characteristics:
- IEC/EN rated insulation voltage Ui: IN 690
- Rated impulse withstand voltage Uimp: kV 6
- IEC Conventional free air thermal current Ith: UN 10
- Maximum number of wires that can be connected simultaneously: 2
- Number of poles: 2
- Operating position: normal in the vertical plane - permissible any
- Fixing: front center mounting
- Weight: 21 grams
- Screw terminals
- Contact type: 1NO+1NC
Lovato auxiliary contact for mini contactor 1NA+1NC 11BGX1011
€8.58
Tax included
€8.58
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 30
: 4
Pay in installments with Klarna
Other technical characteristics:
- Ith thermal current: UN 10
- IEC / EN 60947-5-1 designation: A600 - Q600
- Conductivity: 5V 10mA
- UL/CSA and IEC/EN 60947-5-1 designation: A600 Q600
- Operating temperature: -50/+70°C
- Storage temperature: -60/+80°C
- Maximum altitude: m 3000
Tightening torque for terminals:
- min Nm 0.8 - max Nm 1
- min Ibin 7 - max Ibin 9
There are no reviews
Data sheet
- Type: Auxiliary Contacts
