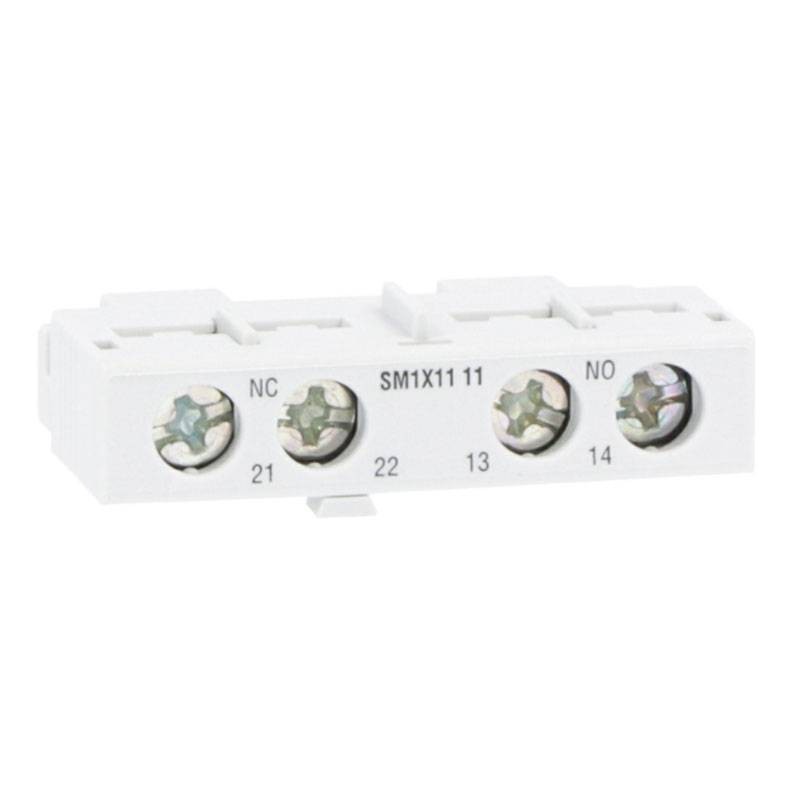

Lovato auxiliary contact front-mounted 1NA+1NC SM1X1111
LOV SM1X1111
8013975216583
Lovato additional auxiliary contact, with the following characteristics:
- Contact type: front connection 1NO + 1NC
- IEC/EN rated insulation voltage Ui: 300V
- Rated impulse withstand voltage Uimp: kV 4
- UL/CSA and IEC/EN 60947-5-1 designation: C300 - R300
- Minimum conductivity: 5V 10mA
- Operating position: normal vertical - permissible any
- Weight: 16 grams
- Operating temperature: -20/+60°C
- Storage temperature: -50/+80°C
- Maximum altitude: 3000m
- IEC degree of protection: IP20
- Suitable for SM1P... - SM1R...
Lovato auxiliary contact front-mounted 1NA+1NC SM1X1111
€7.65
Tax included
€7.65
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 184
: 3
Pay in installments with Klarna
Tightening torque for terminals:
- min Nm 1
- max Nm 1
- min lbin 9
- max lbin 9
Terminals:
- Gender: screw
- M3.5 screw
- Width mm 7.2
- Ph2 tool
There are no reviews
Data sheet
- Type: Auxiliary Contacts
