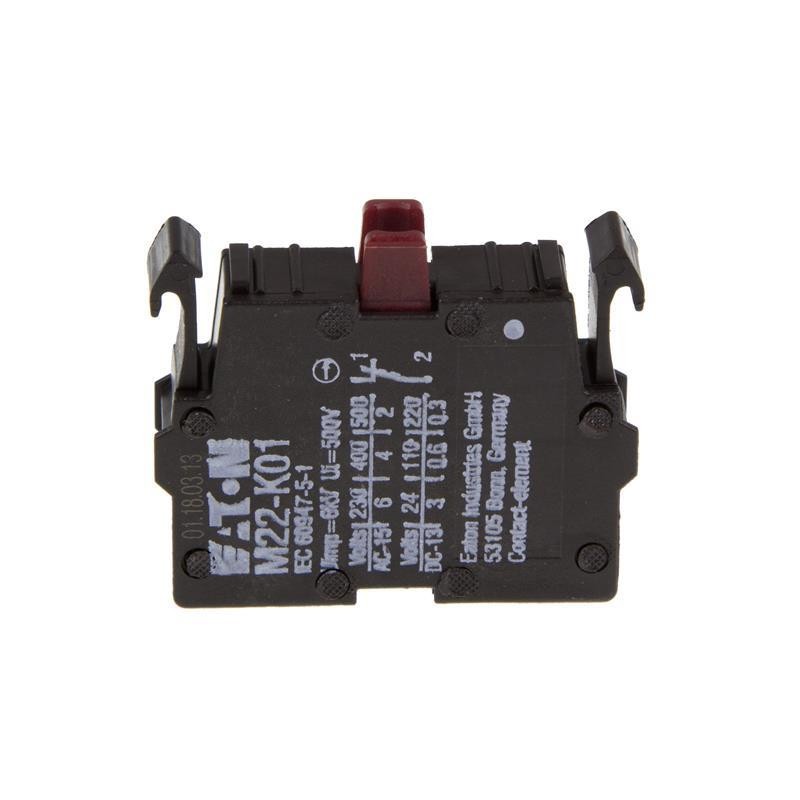

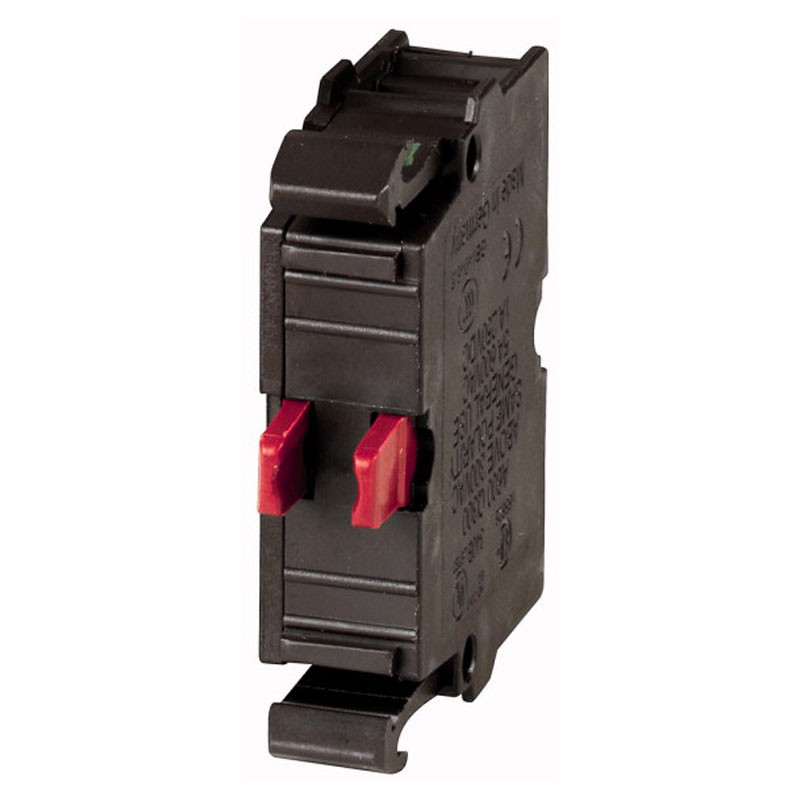

Eaton M22-K01 NC Auxiliary Contact with Front Mounting Screw 216378
EAO 216378
Eaton M22-K01 auxiliary contact, with the following characteristics:
- Rated operational voltage [Ue]: 500V AC
- Max. rated operational voltage [Ue]: 220V DC
- Conventional free air thermal current [Ith = Ie]: 4A
- Short-circuit current [Iq]: 1 kA
- Service temperature: -25/+70°C
- Rated impulse withstand voltage [Uimp]: 6000V AC
- Rated insulation voltage [Ui]: 500V
- Overvoltage category/pollution degree: III/3
- Max. fuse short-circuit protection device [gG/gL]: 10A
- Rated operational current: [Ie] AC-15115V [Ie]: 6A
Eaton M22-K01 NC Auxiliary Contact with Front Mounting Screw 216378
€4.23
Tax included
€4.23
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 93
: 10
Pay in installments with Klarna
Other technical features:
- Connection types: screw terminals
- Mounting type: front mounting
- Degree of protection IP20
- Contacts:1 NC contact
- Compliance with standards:IEC 60947-5-1
- Mechanical endurance [maneuvers]: >5 x 106
- Maneuvering frequency [man/h]: 3600
- Actuating force: ≦5 NET
- Drive torque (screw terminals): ≦ 0.8 Nm
- Ambient temperature during daytime: -25/+70 °C
- Shock resistance according to IEC 60068-2-27: shock duration 11 ms, half-wave >30 g
- Rigid connection cross-sections: 0.75 to 2.5 mm2
- Flexible connection sections: 0.5 - 2.5 mm2
- Flexible connection sections with ferrule: 0.5 - 1.5 mm2
Data sheet
- Type: Auxiliary Contacts
