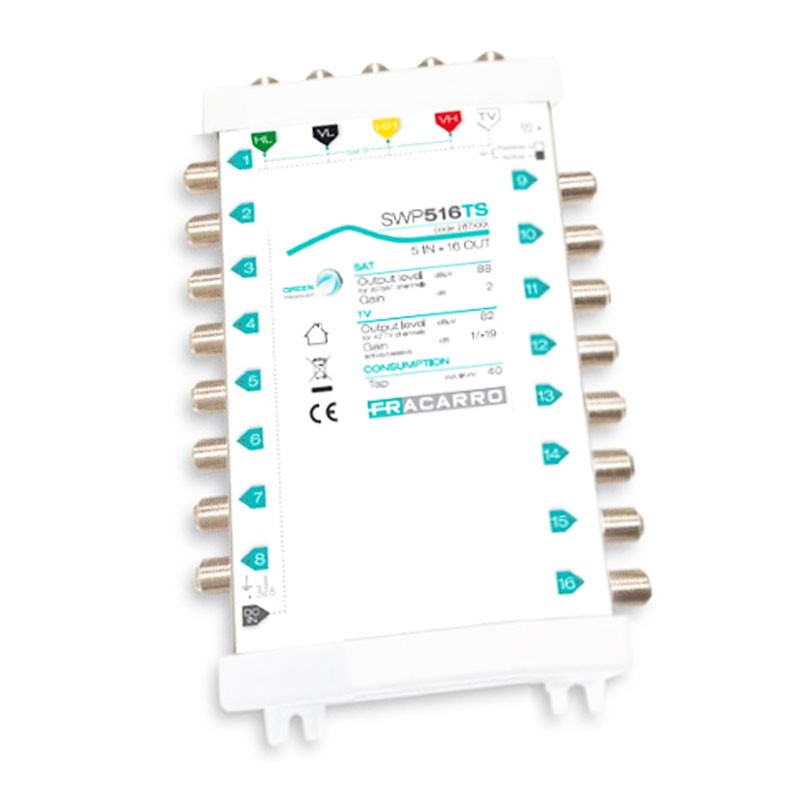

Fracarro SWP516TS compact multiswitch with 5 inputs and 16 outputs 287520

Fracarro
FRA 287520 8016978102358

Fracarro SWP516TS compact multiswitch with 5 inputs and dip switch to select active or passive TV gain:

  • Inputs 4 SAT, 1 TV
  • Derivative 16.
Request info about this product

Fracarro SWP516TS compact multiswitch with 5 inputs and 16 outputs 287520

€125.39 Tax included
€125.39

Fracarro SWP516TS compact multiswitch with 5 inputs and 16 outputs 287520

€125.39
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 3
logo priority: 1
Altre disponibilità dal produttore
qty

Fracarro SWP516TS compact multiswitch with 5 inputs and 16 outputs 287520

€125.39

Buy it within and receive it from Monday, 29 September
Two-year warranty
Secure Payment
Easy return within 14 days
Purchase with tax breaks

Sat:

  • Bandwidth MHz 950-2300
  • Gain with positive slope dB -3/1
  • Maximum output level (-35dBc 2 tones) dBµV 100
  • Isolation SAT-SAT dB >30

TV:

  • Bandwidth MHz Passive: 5-862 Active: 47-862
  • Active Gain dB -1
  • Passive Gain dB -21
  • Maximum output level (-35dBc 2 tones) dBµV Active TV Gain: 92.

Return Channel:

  • Bandwidth MHz TV passive: 5-65
  • Derived consumption mA 40
  • Absorption mA, V active TV: 160, 13 passive TV fully powered by the receiver
  • Maximum LNB absorption mA Passive TV: 1500 Active TV: 1340.

Features:

  • Dimensions mm 170x130x40
  • Power supply dimensions mm 90x70x45
  • Operating temperature °C -10÷+55.

There are no reviews

Data sheet

Type:
Multiswich
