Fracarro SWI508SA cascade multiswitch 5 inputs and 8 outputs 271163
FRA 271163
8016978097784

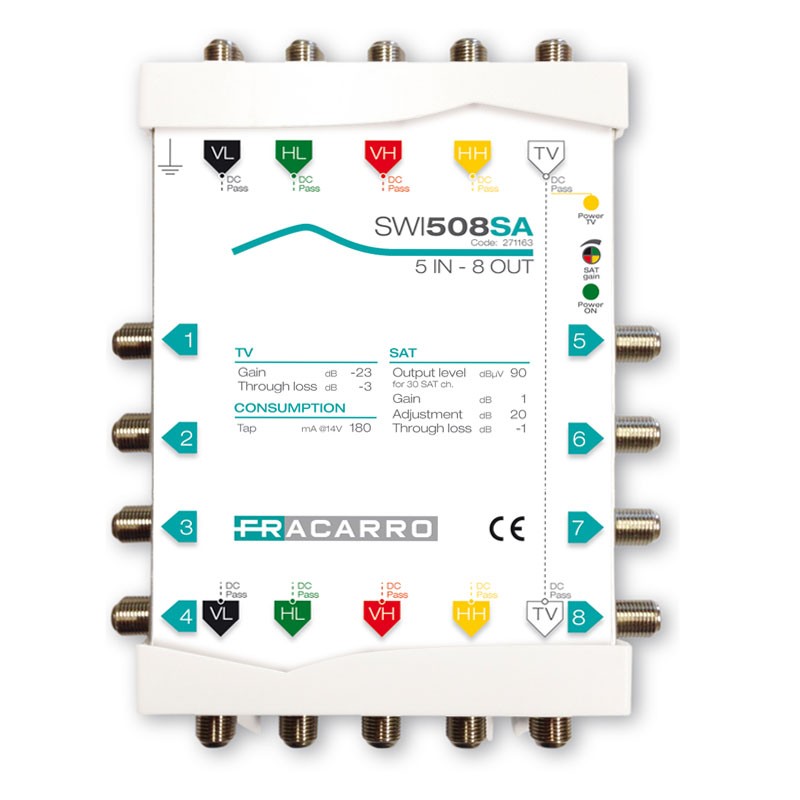

Multiswitch Fracarro SWI508SA, 5 inputs cascade with passive TV and active satellite gain adjustable.
Fracarro SWI508SA cascade multiswitch 5 inputs and 8 outputs 271163
€177.78
Tax included
€177.78
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 5
Features:
- Fracarro series
- Inputs : 4 SAT, 1 TV
- Derivatives: 8
- Dimensions mm: 160x120x30
- Operating temperature °C: -10÷+55
SAT:
- Bandwidth MHz: 950-2300
- Gain with positive slope: dB -4/1
- Gain adjustment: dB 20
- Passage loss: dB -1
- Isolation SAT-SAT: dB >30
TV :
- Bandwidth MHz: 88-790
- Gain: dB -23
- Passage loss: dB -3
Consumption:
- Derived mA consumption: 180
- Maximum current on SAT line mA: 2000
- Maximum current on TV line mA: 1000
Data sheet
- Type:
- Multiswich
- Version:
- 5IN/8OUT
