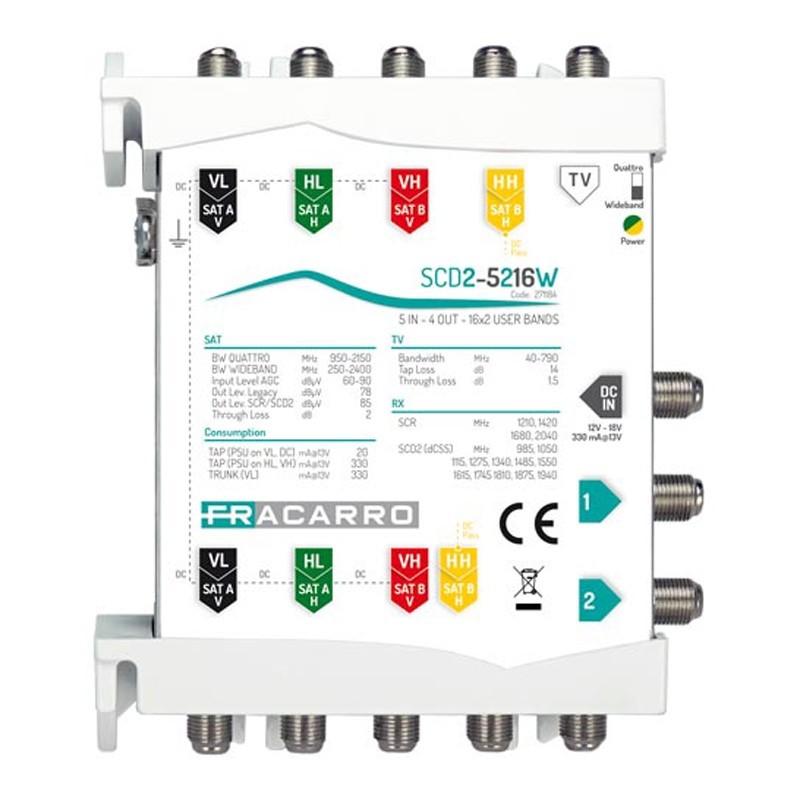

Fracarro SCD2-5216W multiswitch 5 inputs and WB 2 outputs 271184
FRA 271184
8016978103690
Fracarro SCD2-5216W Multiswitch Inputs 4 SAT, 1 TV and derivatives 2 to serve up to 2 Legacy users, 8 SCR users or 32 SCD2 users (dCSS).
Fracarro SCD2-5216W multiswitch 5 inputs and WB 2 outputs 271184
€90.77
Tax included
€90.77
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 19
: 3
SAT Features:
- Bandwidth MHz Four: 950-2150; Wideband 250-2400
- Automatic gain control dBµV 60-90
- Maximum output level (-35dBc 2 tones) dBµV
- Passage loss dB -2
- Isolation SAT-SAT dB >25
TV:
- Bandwidth MHz 40-790
- Gain dB -14
- Passage loss dB -1.5
Derivative:
- TV bandwidth MHz 40-790
- SCR frequencies MHz 1210, 1420, 1680, 2040 (complies with EN50494)985, 1050, 1115, 1275, 1340, 1485, 1550, 1615, 1745, 1810, 1875, 1940 (complies with EN50607)
Consumption:
- Derived Consumption mA@13V PSU on DC-IN or VL: 20; PSU on HL or VH: 330
- Consumption mA@13V PSU on DC-IN or VL: 330; HL, VH or HH pass
- Supply voltage V 12-18
General characteristics:
- Dimensions mm 140x109x31
- Operating temperature °C -10÷+55
There are no reviews
Data sheet
- Type:
- Multiswich
- Version:
- 5IN/4OUT
