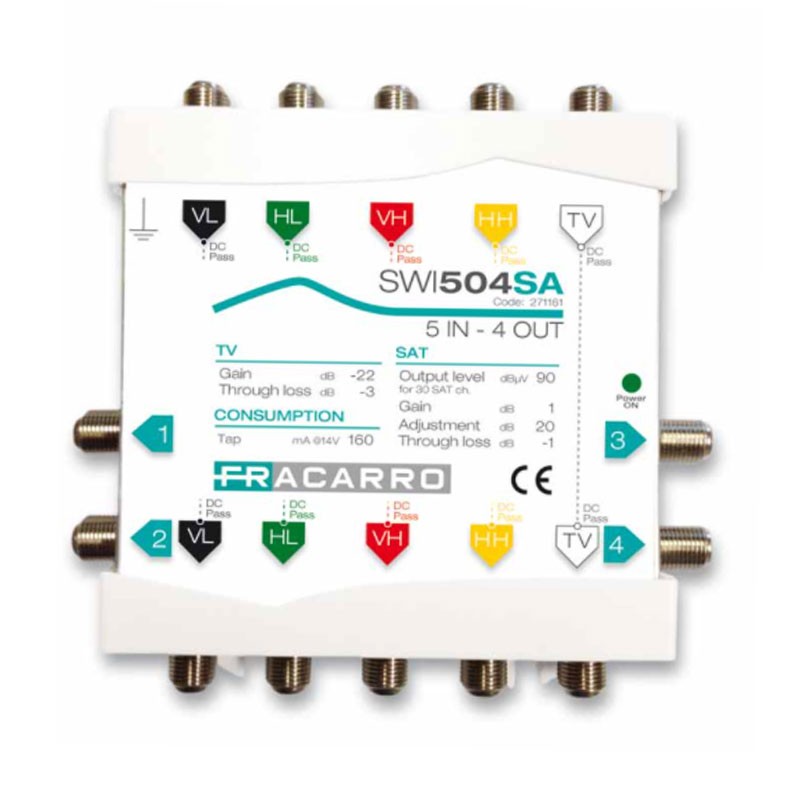

Fracarro multiswitch 5x4 with passive TV and active SAT adjustable 271161
FRA 271161
8016978097883
Fracarro SWI504SA cascade multiswitch, 5 inputs with passive TV and adjustable active satellite gain.
Fracarro multiswitch 5x4 with passive TV and active SAT adjustable 271161
€86.69
Tax included
€86.69
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
Pay in installments with Klarna
Features:
- Fracarro Series
- Derivatives: 4
- Dimensions in mm: 120x120x30
- Operating temperature °C :-10÷+55
SAT:
- Bandwidth MHz: 950-2300
- Gain with positive slope dB: -4/1
- Gain adjustment dB: 20
- Passage loss dB -1
- Isolation SAT-SAT dB: >30
TV :
- Bandwidth MHz :88-790
- Gain: dB 22
- Passage loss: dB 3
Consumption:
- Derived consumption mA: 160
- Maximum current on SAT line mA: 2000
- Maximum current on TV line mA: 1000
Multiswitch di nuova generazione che danno la possibilità di alimentare il cavo passante terrestre in qualunque punto dell'impianto. Lo stesso vale anche per i segnali HV satelittari. Amplificazione tramite potenziometri a bordo sia del tv sat che del dvbt. Prodotto veramente performante.
Perfetto
Data sheet
- Type: Multiswich
- Version: 5IN/4OUT
- Model: 20db
