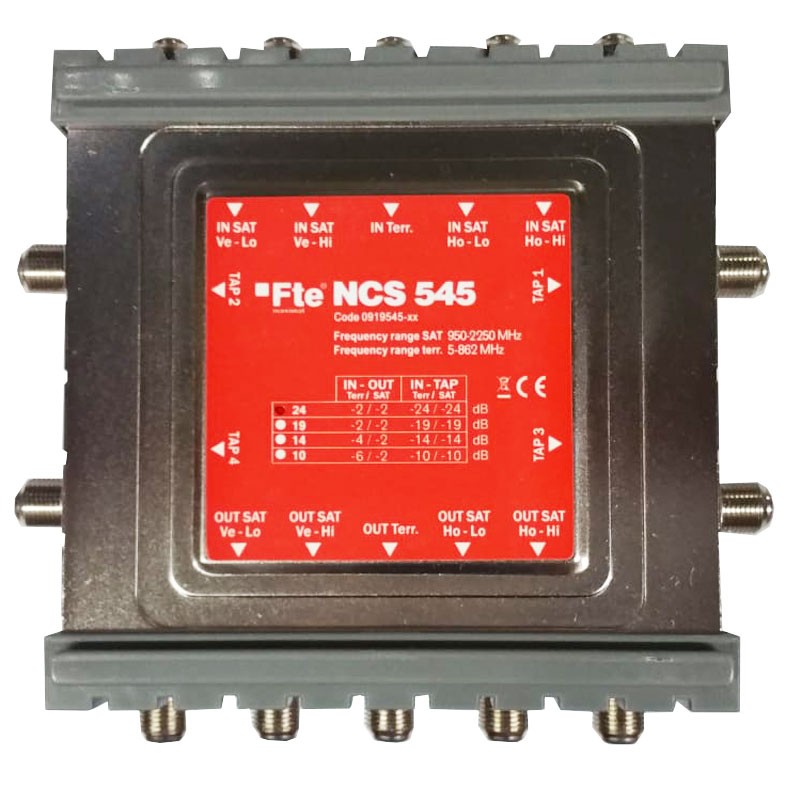

Multiswitch TV and Satellite FTE 24db 4 through outputs Sat and one TV
FTE NCS545-24
8436023597067
Cascaded FTE multiswitch with four SAT and one TV inputs, four Sat and one TV through outputs, four shunt outputs with typical 24 dB attenuation at high TV and SAT input level of 115 dBuV
Multiswitch TV and Satellite FTE 24db 4 through outputs Sat and one TV
€195.84
Tax included
€195.84
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 9
: 3
Pay in installments with Klarna
STRENGTHS
They guarantee sturdiness and durability over time, high decoupling and input level make them an ideal component in medium and high utility systems, designed to distribute analogue and digital Sat signals, with passive mixing of TV signals including the return line.
TECHNICAL DATA
- Frequency (MHz) 5 - 2,200
- SAT 4 inputs
- TV Input
- SAT 4 through exits
- TV loop-out
- Outputs (5-2,200 MHz) 4
- TV shunt attenuation in passive mode (dB) 24
- SAT shunt attenuation (dB) 24
- SAT passage attenuation (dB) 2
- TV pass attenuation (dB) 6
- Max TV input level (dBuV) 115
- Max SAT input level (dBuV) 115
- Max TV output level (dBuV) 115
- Max SAT output level (dBuV) 115
- LNB power supply (V) 18
- Pre-amplifier power supply (V) 18
- Switching 13/18V 0-22 KHz
- Decoupling between inputs and outputs (dB)
There are no reviews
Data sheet
- Type: Multiswich
- Version: 4IN/1OUT
- Model: 24db
