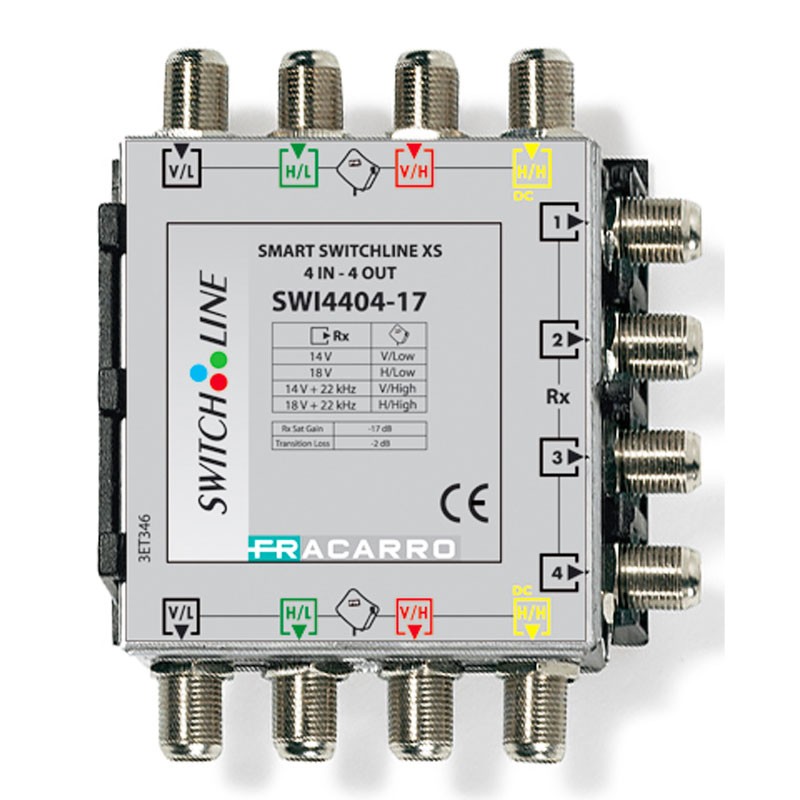

Fracarro SMART SWLINE XS 4 inputs and 4 outputs 17dB 271083

Fracarro
FRA 271083 8016978068302

Fracarro SWI4404-17 cascade multiswitch, 4 inputs with different attenuation levels on the user extensions.

Request info about this product

Fracarro SMART SWLINE XS 4 inputs and 4 outputs 17dB 271083

€36.61 Tax included
€36.61

Fracarro SMART SWLINE XS 4 inputs and 4 outputs 17dB 271083

€36.61
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 7
Altre disponibilità dal produttore
qty

Fracarro SMART SWLINE XS 4 inputs and 4 outputs 17dB 271083

€36.61

Buy it within and receive it from Thursday, 25 September
Two-year warranty
Secure Payment
Easy return within 14 days
Purchase with tax breaks

Features:

  • Fracarro series
  • Inputs : 4 SAT
  • Derivatives: 4 SAT
  • Bandwidth MHz: 950-2150
  • Gain dB: 17
  • Maximum output level (-35dBc 2 tones): dBµV 105
  • Passage loss: dB -2
  • Isolation SAT-SAT: dB >28
  • Derivative consumption: mA 15
  • Dimensions in mm: 90x70x20
  • Operating temperature °C: -10/+55

There are no reviews

Data sheet

Type:
Multiswich
Version:
4IN/4OUT
Model:
17db
