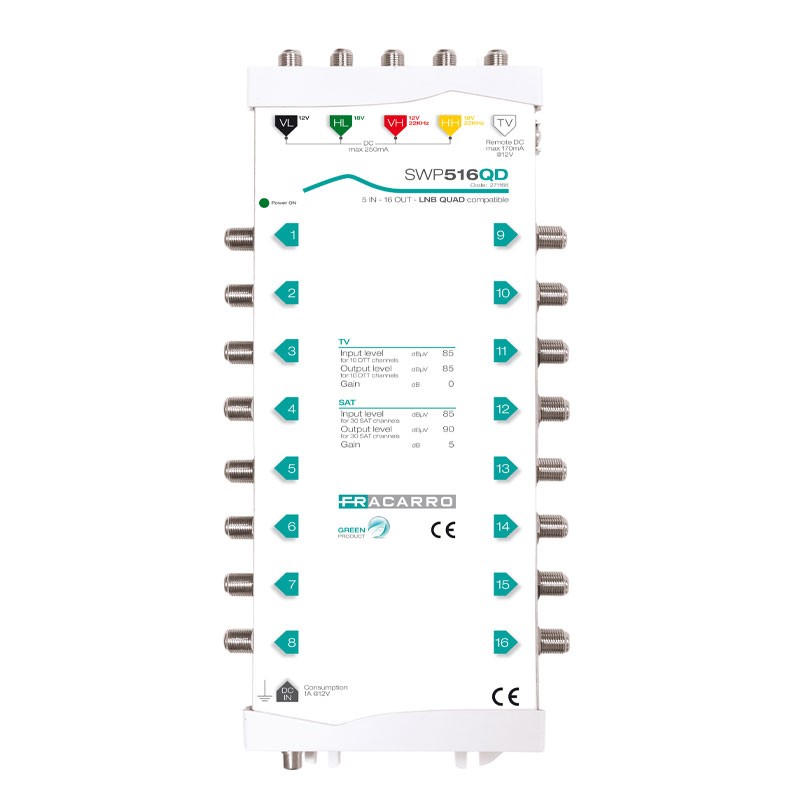

Fracarro Compact Multiswitch with 5 inputs and 16 outputs 271166
FRA 271166
8016978099313
Fracarro SWP516QD compact multiswitch, 5 inputs with active gain in the TV and satellite bands. Compatibility with LNB type QUAD and QUATTRO.
Fracarro Compact Multiswitch with 5 inputs and 16 outputs 271166
€243.31
Tax included
€243.31
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Frequently bought together
Features:
- Fracarro series
- Inputs : 4 SAT, 1 TV
- Derivatives: 16
- Dimensions mm: 260x120x25
- Power supply dimensions mm: 78x48x35
- Operating temperature °C: -10÷+55
SAT:
- Bandwidth MHz: 950-2400
- Gain dB: 5
- Maximum output level (-35dBc 2 tones): dBµV 102
- Isolation SAT-SAT dB: >25
TV :
- Bandwidth MHz :85-790
- Gain: dB 0
- Maximum output level (-35dBc 2 tones): dBµV 95
Consumption:
- Supply voltage: 220-240V
- Frequency: 50-60 Hz
- Derived consumption: mA 35
- Without LNB: mA, V 300, 12
- With LNB: mA, V 1000, 12
- Maximum LNB absorption: mA 300
- Maximum TV amplifier absorption: mA 170
There are no reviews
Data sheet
- Type:
- Multiswich
- Version:
- 5IN/16OUT
