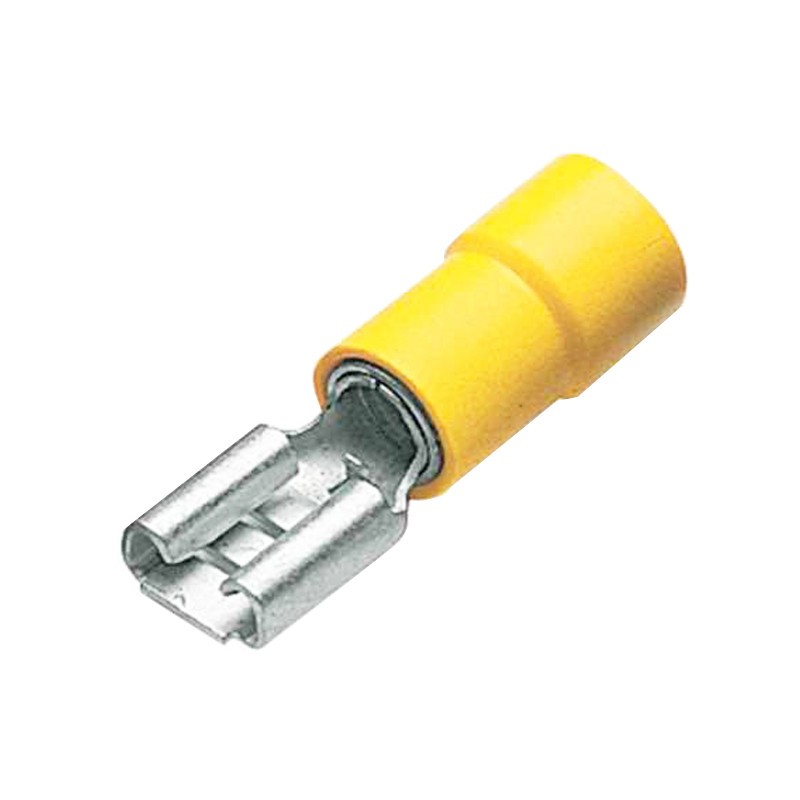

Faston Lugs Cembre female 4mmq 6,3X0,8 100 pieces Yellow GF-F608
CEM GF-F608
8016692034799
Faston Lugs Cembre female coupling for copper cables, insulated PC - partially reinforced with blouse in copper, with a minimum section of 4 mm, a maximum section of 6 mm, dimensions width 6.35 mm length 24.5 mm - height of hook 0.8 mm, pack of 100 pcs, Yellow color.
Faston Lugs Cembre female 4mmq 6,3X0,8 100 pieces Yellow GF-F608
€0.17
Tax included
€0.17
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2300
: 80
Pay in installments with Klarna
The plug-in connectors pre-insulated in PCS have been designed to meet the needs of increasingly stringent market regarding the reliability and safety of components for electrical connections.
The plug-in connectors pre-insulated in the PC have the blouse insulating Polycarbonate, a thermoplastic, halogen-free, characterized, among other things, by a molecular structure in particular that gives higher tenacity than PVC and PA6.6.
Features:
- The connectors are made of brass P-Cu Zn 30 UNI EN 1652
- The tube of reinforcement is made of Copper SF-Cu DIN 1787/1973, F25
- Blouses insulators are made of PC material, halogen-free characterized by high toughness
- Dielectric strength (KV/mm): >30
- The specific resistance of volume (?/cm): >1016
- Temp. maximum operating (°C): 115÷130
- Flammability (UL-94) V0
- Density (g/cm3): 1,2
- Absorption d H2O (%): 0,15
- Resistance at break (N/mm2): >65
- Material (Body) Brass, tin-plated electrolytically
- Material (Blouse partially insulating material) Polycarbonate
- Material (Reinforcement part), Copper-ETP, tin-plated electrolytically.
There are no reviews
Data sheet
- Type: Terminal lugs
- Section: 4mmq
