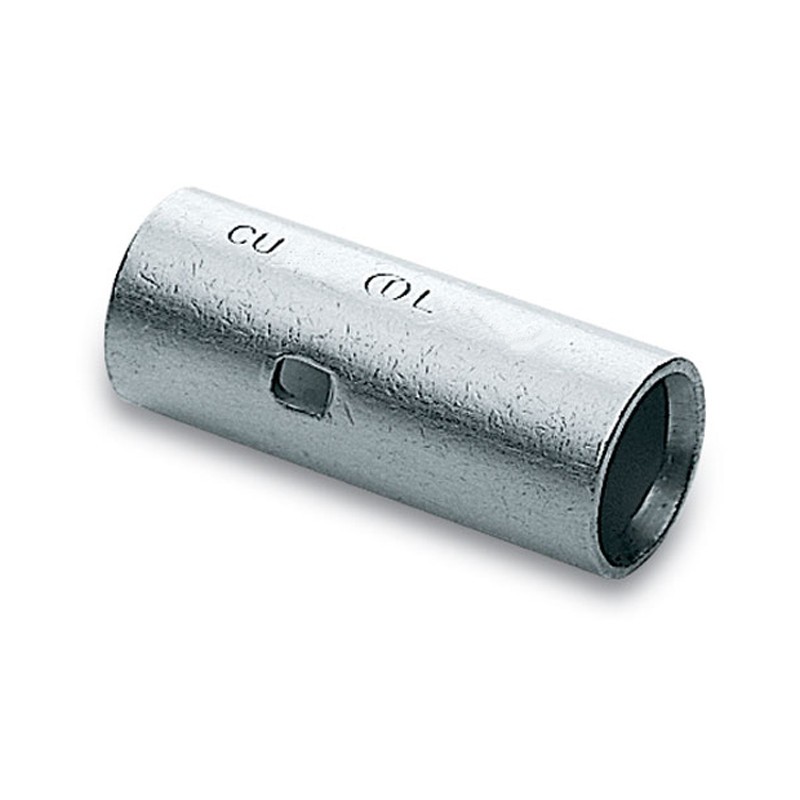

Joints Connectors Cembre head for copper conductors 70mmq L14-M
CEM L14-M
8016692037639
Joints Connectors Cembre head for copper conductors nominal section 70mmq, dimensions, diameter 11,3 mm - length 39mm. Copper material ETP tin-plated electrolytically.
Joints Connectors Cembre head for copper conductors 70mmq L14-M
€1.45
Tax included
€1.45
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 186
: 42
Pay in installments with Klarna
The connectors of series-M are designed for the jointing of low voltage cables. Are made from tube of electrolytic copper of the same size as the one used for the cable lugs of series A-M, are annealed and protected on the surface by tinning electrolyte. Are provided with a chamfer at both ends, and a stop in the central area, for easy and correct introduction of the conductor.
Are made from tube of electrolytic copper Cu-OF CW008A according to the UNI EN 13600.
There are no reviews
Data sheet
- Type: Connections
- Section: 70mmq
