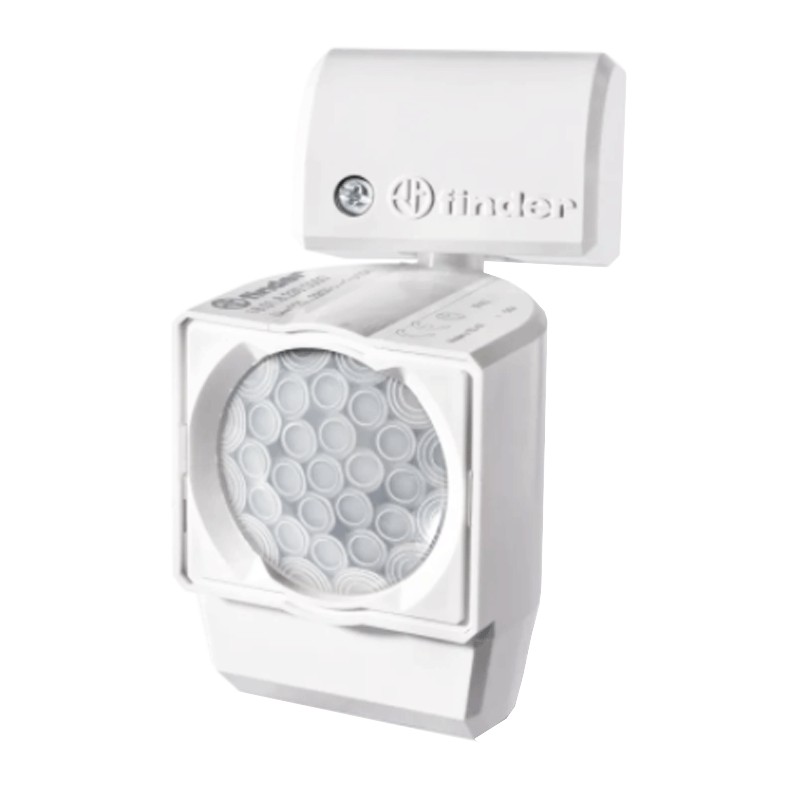

Finder indoor presence detector 18018230
FIN 180182300000
8012823301624
Finder standard indoor infrared motion/presence detector with the following features:
- Supply voltage V AC/DC (50/60 Hz) 120...230
- Rated power AC/DC VA (50 Hz)/W 2.5
- Operating range V AC (50/60 Hz) 96...253
- Current rating/Max instantaneous current 10/20 (100 A - 5 ms)
- Nominal voltage/Max switching voltage V AC 230/230
- Nominal load in AC1 VA 2300
- Nominal load in AC15 (230 V) VA 450
Finder indoor presence detector 18018230
€25.84
Tax included
€25.84
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 416
: 221
Pay in installments with Klarna
Features:
- Finder Series
- Contacts 1 NO 10A
- Ideal for indoor installation
- Wall mounting
- Electrical life at rated load AC1 100 - 10 cycles
- Adjustment of twilight switching threshold 5...350 lx
- Adjustment of switch-off delay time 10 s...12 min
- Ambient temperature -10...+50°C
- Degree of protection IP40
Lamp capacity 230V:
- incandescent/halogen 1000W
- fluorescent with electronic ballast 500W
- fluorescent with power factor correction electromagnetic ballast 350W
- CFL 300W
- LED 230 V 300W
- halogen or BT LED with electronic transformer 300W
- 300W halogen or BT LED with electromagnetic transformer
- Standard contact material AgSnO2
Advantages:
- Output contact at mains potential
- Reduced dimensions
- Equipped with twilight sensor and delay time
- Adjustable switch-off delay time
- Can be used in any position for motion detection
- Wide detection angle
There are no reviews
Data sheet
- Type: Sensors
- Installation: External
