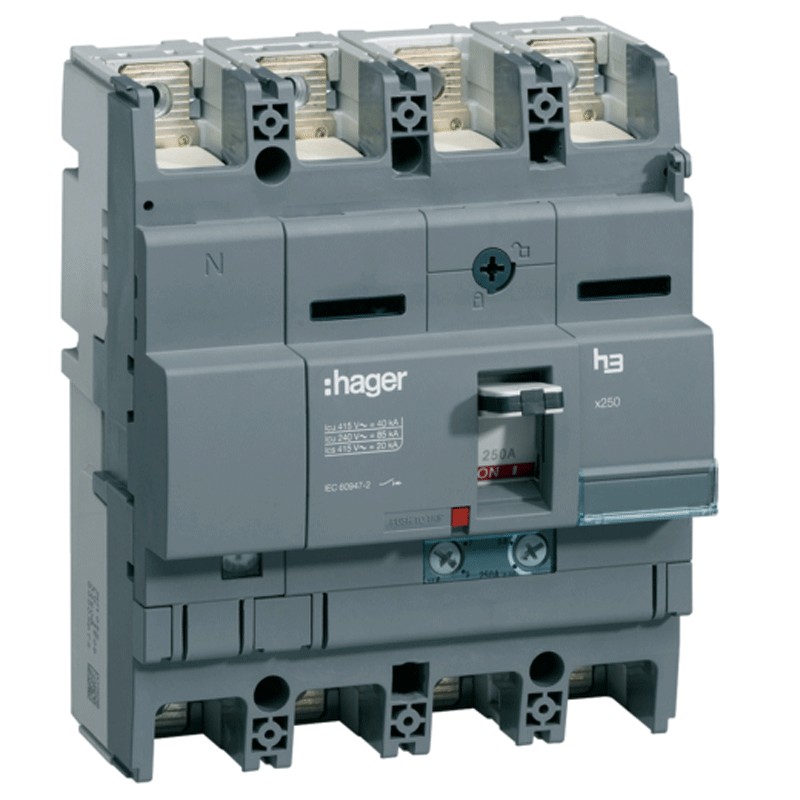

Hager 4P 250A 40KA X250 HNB251H thermal-magnetic circuit breaker
HAG HNB251H
3250613347826
Hager X250 Thermomagnetic Circuit Breaker with the following features:
- Voltage 220/415 Vac
- Rated current 250 amperes
- Interrupting power 40kA
- 4 modules
- 4 protected poles
- DIN connection (universal for any switchboard on the market)
Hager 4P 250A 40KA X250 HNB251H thermal-magnetic circuit breaker
€997.71
Tax included
€997.71
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Frequently bought together
Features:
- Hager Series
- Voltage 220/415 Vac
- Rated current 250A
- Interrupting power Icn 40kA
- Frequency 50/60 Hz
- 4 modules
- 4 Poles protected
- Rated insulation voltage 800 V
- Rated Fault Holding Current 8000 V
- TM/Disconnection curve
- Opening response time 10 ms
- Min. cross section with flexible cable 35 / 150 mm²
- Minimum cross-section with rigid cable 35 / 185 mm²
- Front connection Type of connection
- Degree of protection of the housing IP4X
- Total power loss 48 W
- Power loss per pole 16 W
- Operating temperature -25...70 °C
- Altitude 2000m
- Tropicalised version for all climates
- Storage/transport temperature -35...70 °C
There are no reviews
Data sheet
- Type: Under-voltage Releases
- Modules: 4
- Poles: 4P
- Power: 40KA
- Amps: 250A
