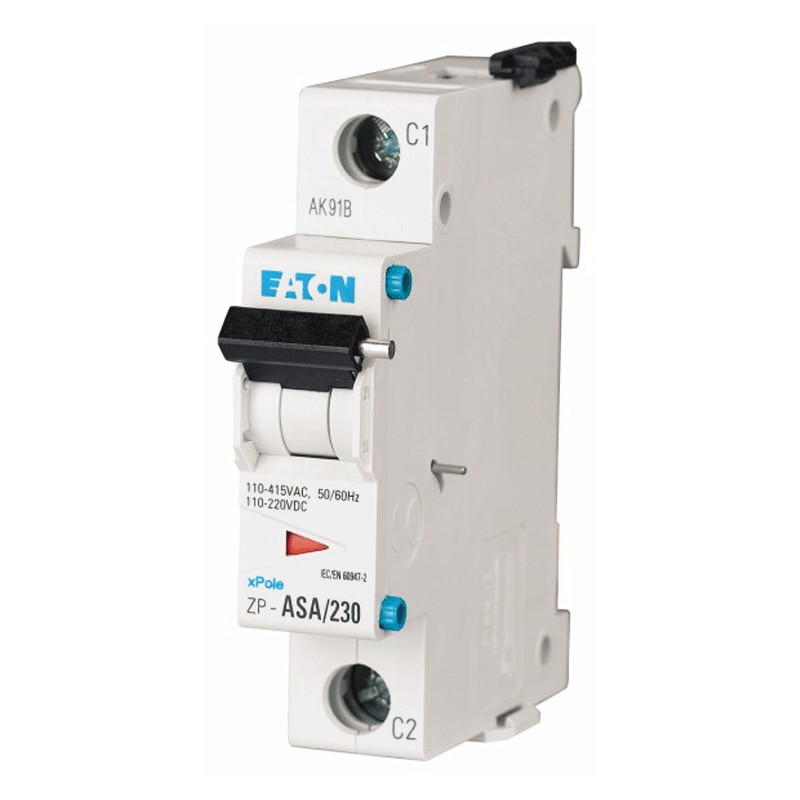

Eaton current-operated release 110-415V 248439
EAO 248439
4015082484392
Eaton current-launching release, with the following characteristics:
- Rated voltage 230 Vac
- Voltage type for AC drive
- Snap-in mountable
- Voltage range 110-415 Vac / 110-220 Vdc
- Frequency 50/60Hz
- DIN rail mounting
- Nominal switching voltage 0A
Eaton current-operated release 110-415V 248439
€26.33
Tax included
€26.33
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 49
: 2
Pay in installments with Klarna
The main task of the release is to make the motor protection switch open in the event of a mains power failure and thus prevent the motor from starting inadvertently when the power is restored.
Features:
- Eaton series
- Rated voltage 230 Vac
- Voltage type for AC drive
- Snap-in mountable
- Voltage range 110-415 Vac / 110-220 Vdc
- Frequency 50/60Hz

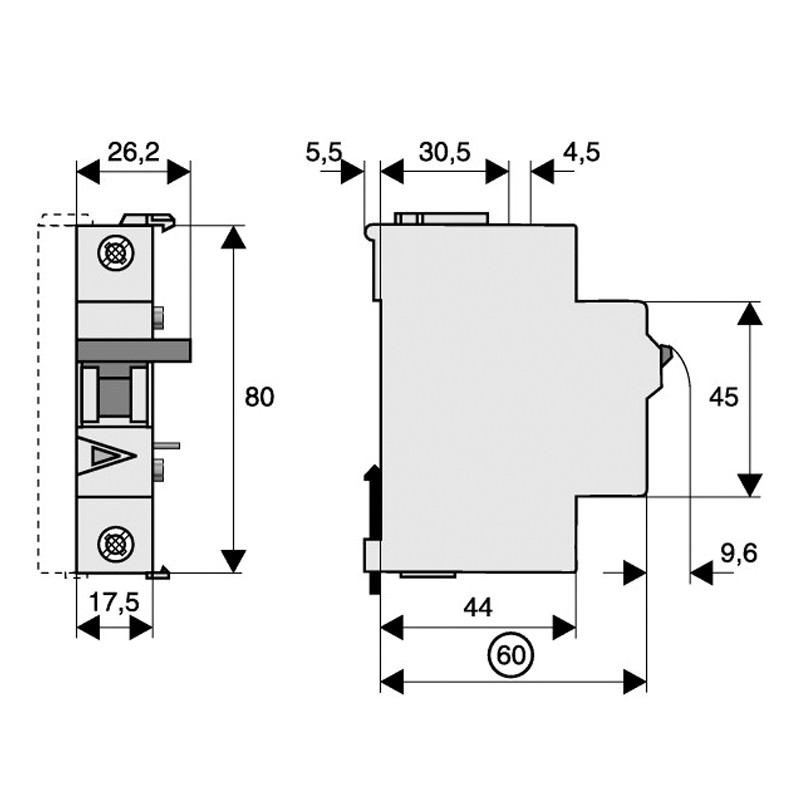

- Dome mounting dimensions 45 mm
- Mounting width 1 unit pitch (17.5 mm)
- DIN rail mounting
- Terminal section 1-25 mm²
- Ambient operating temperature min -5 °C
- Ambient temperature max. +40 °C
- Number of break contacts 1
- Number of break contacts 1
- Number of reversing contacts 0
- Number of signal switches 0
- Rated switching voltage 0A
Data sheet
- Type: Under-voltage Releases
