Schneider ComPacT MicroLogic NSX160/250 160A 4P C1642D160 Disconnect Switch

Brand: Schneider

Cod: SNR C1642D160 EAN: 3606482000070

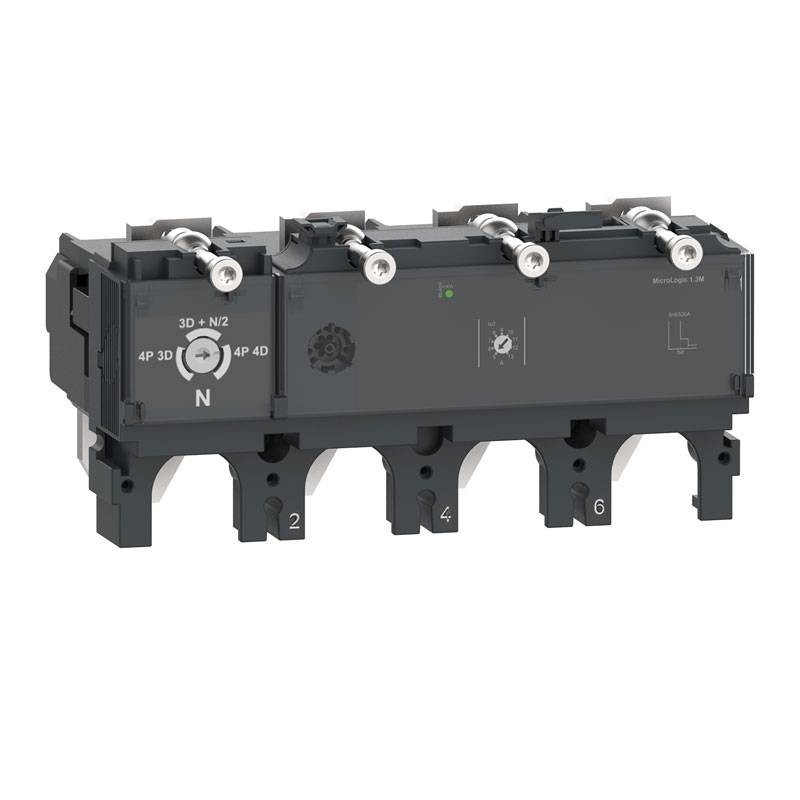

Schneider ComPacT MicroLogic NSX160/250 160A 4P release with the following features:

Product range: ComPacT NSX100 250 new generation
Type of product or component: Trip unit
Trip release name: Micrologic 2.2
Trip release technology: Electronic
Range Compatibility: ComPacT new generation NSX160 - ComPacT new generation NSX250
Number of poles: 4
Trip protection functions: LSoI
Rated trip current: 160 A at 40 °C
Rated operating voltage: 690V AC 50/60 Hz
Switch mounting: Fixed
IP degree of protection: IP40 in accordance with IEC 60529
Operating ambient temperature: -25/+70 degrees
Storage temperature: -50/+85 degrees

€650.37 Tax included

€650.37

€650.37
Tax included

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 9

Two-year warranty

Secure Payment

Easy return within 14 days

SNR C16F4

€503.72

SNR C16N4

€755.15

This MicroLogic 2.2 is a 4-pole electronic circuit breaker used on ComPacT NSX 160/250 circuit breakers.

Advantages:

This 160 A electronic circuit breaker is the optimal choice for all standard and specific applications
Incorporates adjustable long-time overload protection
Also provides adjustable short-time protection and fixed instantaneous protection against short circuitsI
MicroLogic 2.2 signals overloads with alarm LEDs
Green Ready LED flashes if the switch is ready for tripping
This product is part of our EcoStruxure Power architecture when combined with the PowerTag NSX and ComPacT NSX base frame
Schneider Electric unmistakable green style for the entire ComPacT range
Estimated 40% reduction in wiring time for panel builders
Experience easier installation thanks to the new ergonomic front plate design.
Get confidence that all auxiliaries are in the right place and check that you have the right coil rating
New ergonomic lever for easy manual switch operation

Features:

Ir long pick-up adjustment type (thermal protection): 9 adjustable settings
Long protection pick-up adjustment range: 63...160 A
Long tr protection delay adjustment type: Fixed
Long protection delay adjustment range: 11 s at 7.2 x Ir - 16 s at 6 x Ir - 400 s at 1.5 x Ir
Neutral protection settings: 0.5 x Ir (3D + N/2) - 1 x Ir (4D)
Thermal memory: 20 minutes before and after tripping
Short-circuit protection trip setting type Isd: 9 adjustable settings
Short-circuit protection tripping threshold adjustment range: 1.5...10 x Ir
Short-time protection delay adjustment type tsd: Fixed
Instantaneous protection socket adjustment type Ii: Fixed
Adjustment range of instantaneous protection trip threshold: 2400A
Protection class against electric shock: Class II
Pollution degree: 3 in accordance with IEC 60947-1
