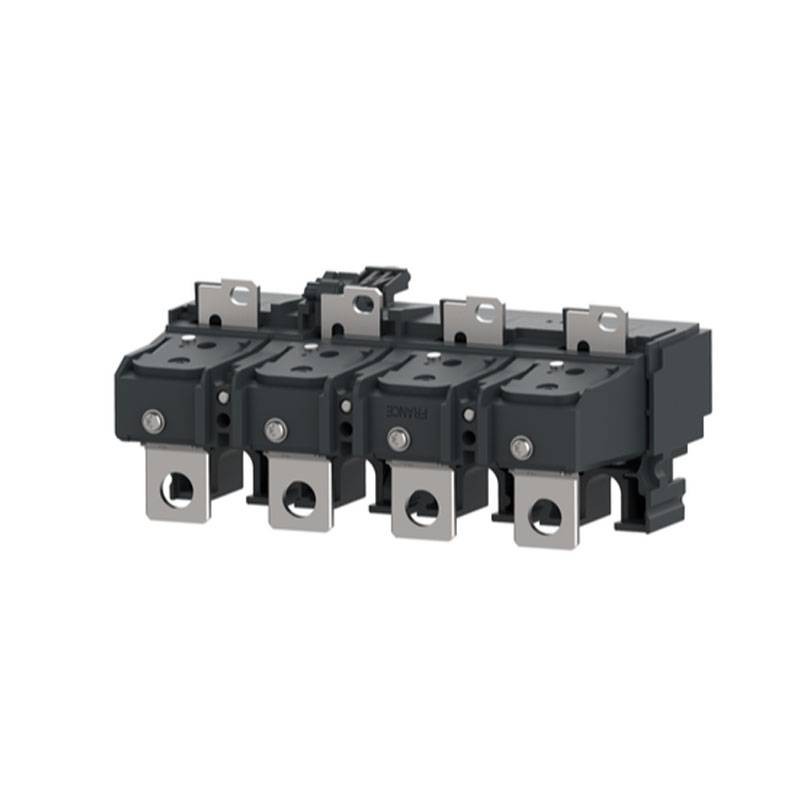

Schneider ComPacT TM250D NSX250 250A 4P C256TM250 Disconnect Switch
SNR C256TM250
3606482000049
Schneider ComPacT TM-D release with the following characteristics:
- Type of product or component: Travel unit
- Number of poles: 4
- Trip trip technology: Magnetothermal
- Trip unit rating: 250A
- Rated operating voltage: 690V AC 50/60 Hz
- Degree of protection IP40 in accordance with IEC 60529
- Ambient air temperature for operation: -25/+70 degrees
- Ambient air temperature for storage: -50/+85 degrees
Schneider ComPacT TM250D NSX250 250A 4P C256TM250 Disconnect Switch
€627.40
Tax included
€627.40
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 17
: 2
Pay in installments with Klarna
Frequently bought together
TM250D is a 4-pole 3D thermal-magnetic circuit breaker used on ComPacT NSX 250 circuit breakers.
This 250A thermal-magnetic circuit breaker is the optimal choice for all distribution applications
Incorporates adjustable thermal overload protection and fixed magnetic short-circuit protection
This product is part of our EcoStruxure Power architecture when combined with the PowerTag NSX and ComPacT NSX base frame
Advantages:
- Schneider Electric unmistakable green style for the entire ComPacT range
- Estimated 40% reduction in wiring time for panel builders. Experience easier installation thanks to new ergonomic front plate design
- Get confidence that all auxiliaries are in the right place and check that you have the right coil rating
- New ergonomic lever for easy manual switch operation
Features:
- Protective functions of the circuit breaker: LI
- Mains type: Alternating current
- Switch mounting mode: fixed
- Ir long pickup adjustment type (thermal protection): Adjustable
- Long protection pick-up adjustment range: 0.7...1 x inches
- Long protection delay adjustment type tr: Fixed
- Long-term protection delay adjustment range: 120400 s at 1.5 x In 15 s at 6 x Ir
- Instantaneous protection socket adjustment type Ii: Adjustable
- Adjustment range of instantaneous protection trip threshold: 5 to 10 x In
Protection type:
- L : for overload protection (thermal)
- I : for short-circuit protection (magnetic)
There are no reviews
Data sheet
- Type: Under-voltage Releases
- Poles: 4P
- Amps: 250A
