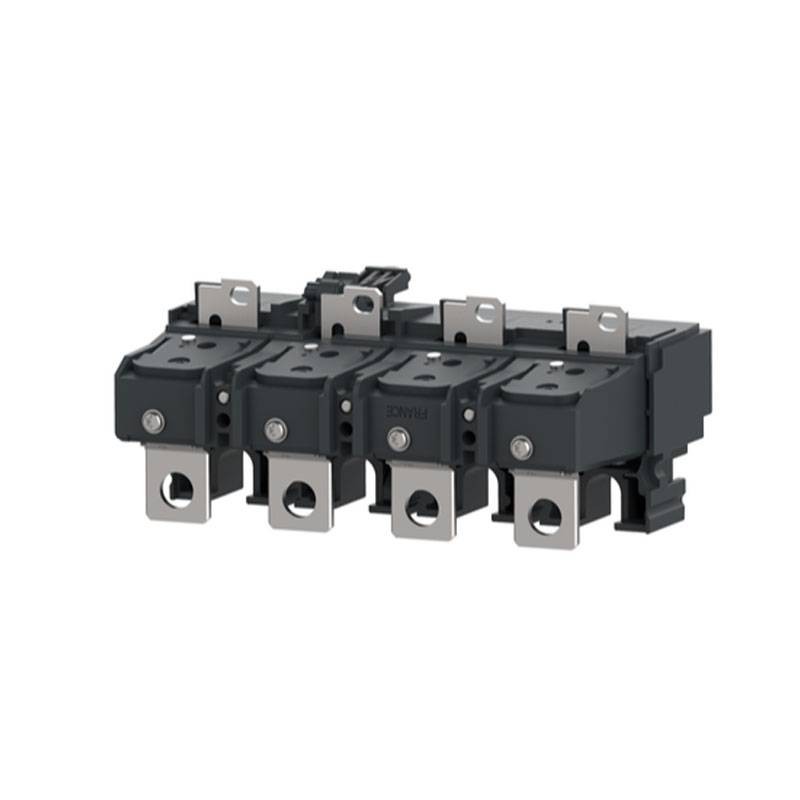

Schneider ComPacT NSX 160/250 125A 4P C166TM125 Disconnect Switch
SNR C166TM125
3606482000001
TM125D release for ComPacT NSX 160/250 circuit breakers with the following characteristics:
- Name of the release: TM-D
- Trip technology: Magnetothermal
- Number of poles: 4
- Trip unit rating: 125A
- Rated operating voltage: 690V AC 50/60 Hz
- Mains type: Alternating current
- Protection class against electric shock: Class II
- Pollution degree: 3 complying with IEC 60947-1
- Degree of protection IP40 in accordance with IEC 60529
- Range compatibility: ComPacT new generation NSX160 - ComPacT new generation NSX250
Schneider ComPacT NSX 160/250 125A 4P C166TM125 Disconnect Switch
€410.43
Tax included
€410.43
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 6
: 1
Pay in installments with Klarna
Frequently bought together
TM125D is a 4-pole 3D thermal-magnetic circuit breaker used on ComPacT NSX 160/250 circuit breakers.
This 125 A thermal-magnetic circuit breaker is the optimum choice for all distribution applications. It incorporates adjustable thermal overload protection and fixed magnetic short-circuit protection.
This product is part of our EcoStruxure Power architecture when combined with the PowerTag NSX and ComPacT NSX base frame.
Other technical features:
- Device application: Distribution
- Release protection functions: LI
- Adjustment type pick-up long Ir (thermal protection): Adjustable
- Long protection pick-up adjustment range: 0.7...1 x inches
- Long protection delay adjustment type tr: Fixed
- Long-term protection delay adjustment range: 120400 s at 1.5 x In 15 s at 6 x Ir
- Ambient air temperature for operation: -25/+70 degrees
- Ambient air temperature for storage: -50/+85 degrees
Protection type:
- L : for overload protection (thermal)
- I : for short-circuit protection (magnetic)
There are no reviews
Data sheet
- Type: Under-voltage Releases
- Poles: 4P
- Amps: 125A
