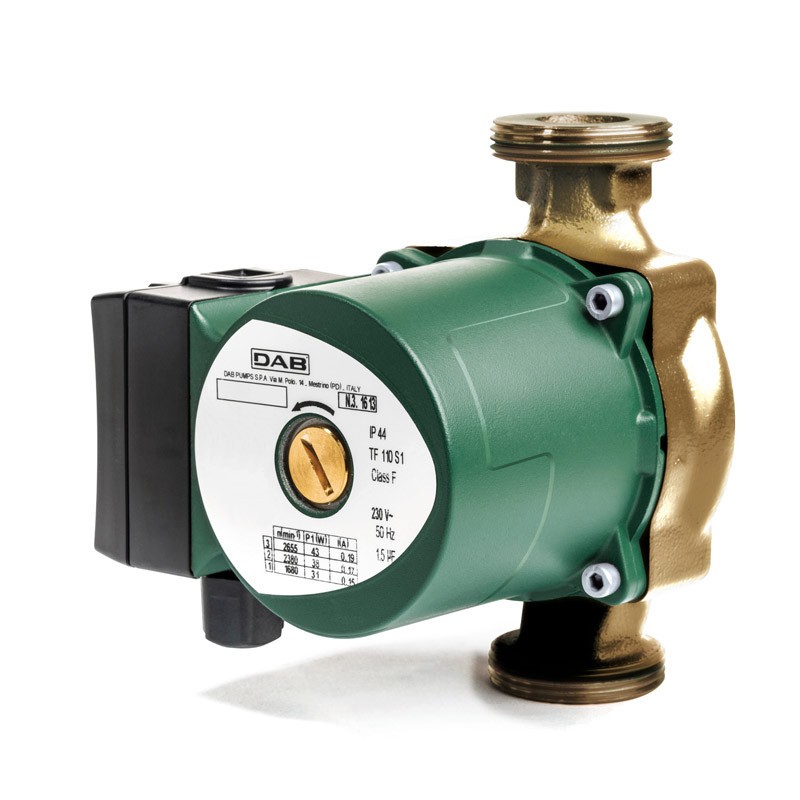

Circulator DAB VS 35/150M wet rotor 60182215H
DAB 60182215H
Circulator DAB VS 35/150M, wet rotor for the circulation of hot water in domestic systems of heating and air conditioning closed and pressurised or open tank.
Circulator DAB VS 35/150M wet rotor 60182215H
€242.62
Tax included
€242.62
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 9
: 1
Pay in installments with Klarna
Features:
- Power supply 50Hz 1x230 V ~
- Centre distance 150mm
- Pump connections 1 ½
- Unions on request Brass, 1/2 F - 3/4 F - 1 F COPPER d22 e d28
- Max power 55W
- In 0.24 A
- Operating range: from 0.6 to 3.7 m3/h with head up to 6 metres
- Temperature range of the liquid: from -10°C to +85°C for use health and +110°C for other uses
- To avoid the phenomenon of limestone should not exceed 65°C and provide an anti-scale system when the degree of hardness of the water exceeds 15 French degrees
- Pumped liquid: clean, free from solid substances and mineral oils, not viscous, chemically neutral, close to characteristics of water (glycol max 30%)
- Maximum operating pressure: 10 bar (1000 kPa)
- Installation: with lASSE HORIZONTAL MOTOR
- Single body formed by the hydraulic part in the bronze and motor wet rotor
- Motor casing in die-cast aluminium
- Impeller in technopolymer
- Motor shaft in stainless steel tempered and mounted on bronze bushings with graphite lubricated by the pumped liquid
- Shirt of the rotor, jacket stator, and closing flange in stainless steel
- Thrust ring ceramic
- o-rings in silicone and the cap air vent brass
- Motor two-pole asynchronous wet rotor is protected for resistance, and requires no overload protection
- Operation three-speed
- Degree of protection: IP 44
- Insulation class: F
- Cable gland: PG 11
- Installation: with lasse horizontal motor.
Funciona muy bien la anterior ha durado 17 años
J ai remplacé la pompe défectueuse, super
Data sheet
- Type: Circulatory
- Version: Single
- Model: Wet rotor
