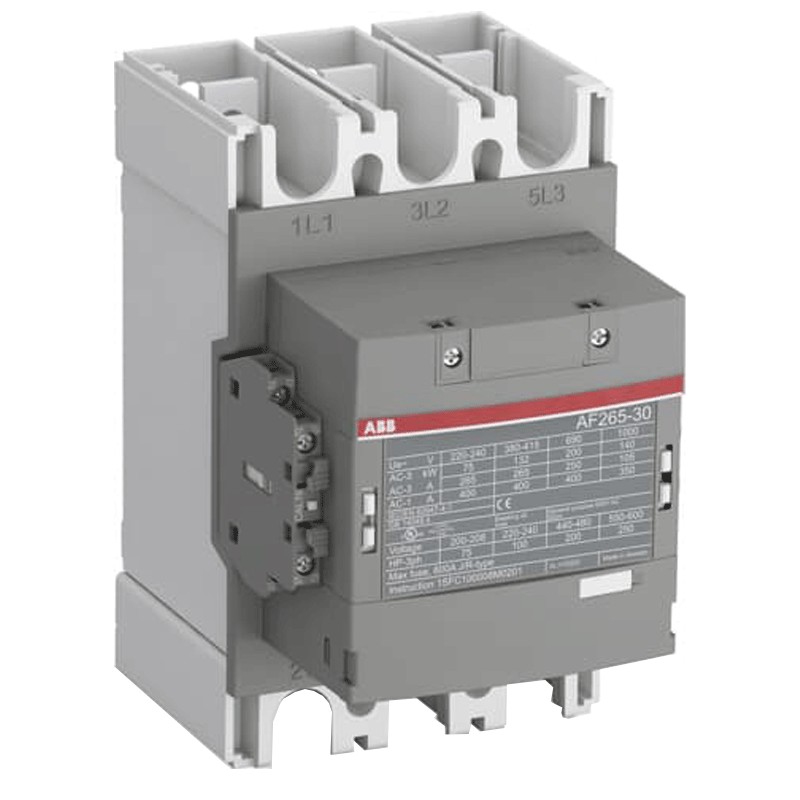

ABB 3-pole contactor 265A 100-250V a.c./d.c. AF265301113
ABB AF265301113
7320500481189
Abb contactor, with the following characteristics
- Rated operating voltage main circuit 1000 V
- Rated control circuit voltage DC operation 100/250 V
- 3 poles
- DIN connection (universal for any switchboard on the market)
- Rated main circuit frequency 50/60 Hz
- Operating current 265 amperes
ABB 3-pole contactor 265A 100-250V a.c./d.c. AF265301113
€955.81
Tax included
€955.81
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Abb Series
- Rated main circuit operating voltage 1000 V
- Rated voltage control circuit DC operation 100/250 V
- Operating current 265 amperes
- Main circuit rated frequency 50/60Hz
- 3 poles
- Number of NO main contacts 3
- Number of main contacts NC 0
- Number of NO auxiliary contacts 1
- Number of NC auxiliary contacts 1
- Terminal type: Main Circuit Bars
- Coilprotection IP20,main terminals IP00
- Product width 140 mm
- Product depth 180 mm
- Product height 225 mm
- Product net weight 3,9 kg
There are no reviews
Data sheet
- Type:
- Contactors
- Voltage:
- 100/250VAC
- Poles:
- 3P
- Amps:
- 265A
