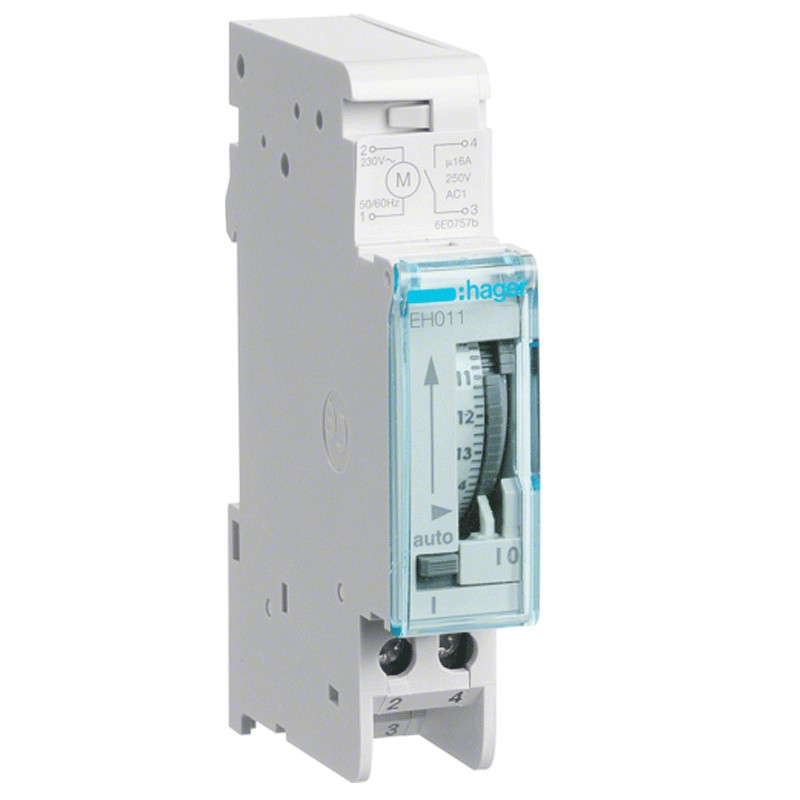

Hager daily time switch with reserve 1NO 1 module EH011
HAG EH011
3250612280117
Hager electromechanical daily time switch with the following features:
- Nominal operating voltage AC 230V
- Operating voltage 230 V
- Nominal frequency 50/60 Hz
- Current In 16A
- DIN rail mounting
- With power reserve
- 1 module
- With slide switch / permanent ON
Hager daily time switch with reserve 1NO 1 module EH011
€37.80
Tax included
€37.80
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Features:
- Hager series
- Technical version NO contact, time scale 15 min
- Number of function channels 1
- Switching cycles min. 30000
- Operating reserve: 200 hours
- Maximum power at cos phi 0.6 3 A
- Switching current at cos φ = 0.6 max. 3 A
- Power consumption in VA 0.5 VA
- Power consumption (in operation) 0.5 VA
- Total power loss 1 W
- Power loss at full load ≈ 1 W
- Coil power loss 0.5 W
- Accuracy ± 1 s/day
- Charge times for reserve in hours 120
Dimensions:
- Depth 60 mm
- Height 80 mm
- Width 18 mm
Remplit tout à fait la fonction pour laquelle je l'ai acheté qui est de simuler le signal d'asservissement EDF HP/HC pour le chauffe-eau.
Data sheet
- Type: Switches
- Version: Time
- Model: Daily
- Installation: Din
