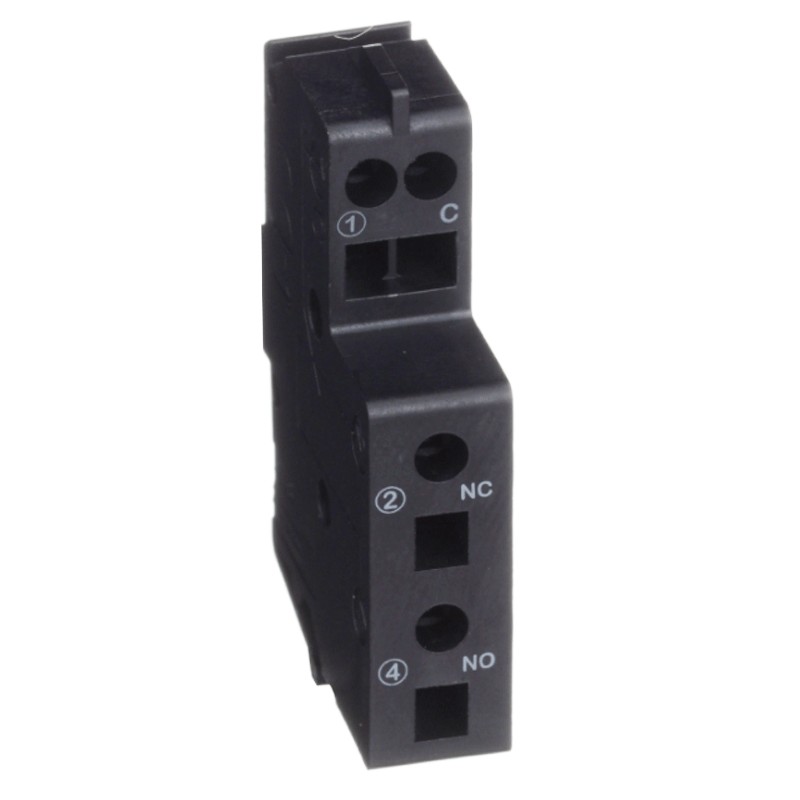

Schneider auxiliary contact OF/SD 1 NO/NC LV426950
SNR LV426950
3606485444215
Schneider Auxiliary Contact OF/SD, with the following characteristics:
-
Conventional thermal current in air 5A
-
Minimum load 2 mA at 17 V DC
-
Auxiliary contact type standard
-
Mounting mode latching
-
Local signalling ON/OFF indication
-
Signal contact composition 1 NO/NC
Schneider auxiliary contact OF/SD 1 NO/NC LV426950
€23.07
Tax included
€23.07
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 11
: 1
Pay in installments with Klarna
Frequently bought together
Features:
- Schneider Series
- Conventional thermal current in air 5A
- Auxiliary terminal block spring
- Wire stripping length 8 mm per connection front side
- Minimum load 2 mA at 17 V DC
- Auxiliary contact type standard
- Mounting mode latching
- Local signalling ON/OFF indication
- Signal contact composition 1 NO/NC
Rated operational current [Ie]
- AC-12: 5 A at 24 V "AC" "50/60 Hz".
- AC-12: 5 A at 48 V "AC" "50/60 Hz".
- AC-12: 5 A at 110 to 127 V AC 50/60 Hz
- AC-12: 5A @ 220/240V "AC" "50/60Hz
- AC-12: 5 A at 380/440V "AC" "50/60Hz".
- AC-12: 5 A at 660/690V "AC" "50/60 Hz".
- AC-15: 5 A at 24 V "AC" "50/60 Hz".
- AC-15: 5 A at 48V "AC" "50/60 Hz".
- AC-15: 4A @ 110 to 127V "AC" "50/60 Hz".
- AC-15: 3A @ 220/240V "AC" "50/60Hz
- AC-15: 2.5 A @ 380/440V "AC" "50/60Hz".
- AC-15: 0.1A at 660/690V "AC" "50/60Hz".
- DC-12: 5A at 24V DC
- DC-12: 2.5 A at 48 V DC
- DC-12: 0.6 A at 110 V DC
- DC-12: 0.3 A at 250 V DC
- DC-13: 2.5 A at 24 V DC
- DC-13: 1.2 A at 48 V DC
- DC-13: 0.35 A at 110 V DC
- DC-13: 0.05 A at 250 V DC
- DC-14: 1 A at 24 V DC
- DC-14: 0.2 A at 48 V DC
- DC-14: 0.05 A at 110 V DC
- DC-14: 0.03 A at 250 V DC
There are no reviews
Data sheet
- Type: Auxiliary Contacts
