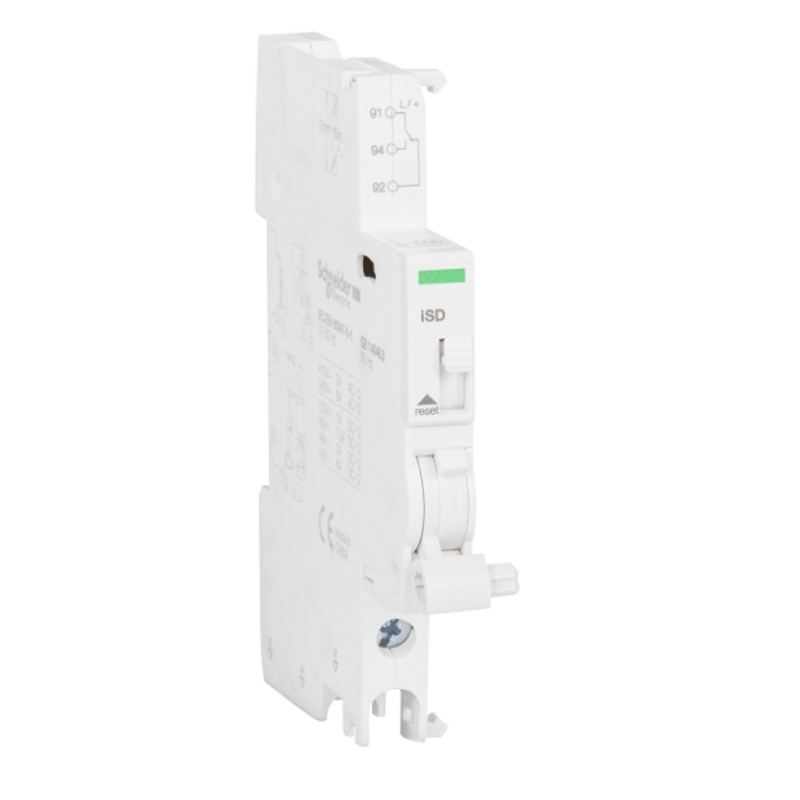

Schneider auxiliary fault contact 1C /O AC/DC A9A26927
SNR A9A26927
3606480087899
Schneider auxiliary fault contact, with the following characteristics:
- Current AC/DC
- Signal contact composition 1 A/C
- 9 mm steps
- Rated insulation voltage [Ui] 500 V
- Rated impulse withstand voltage [Uimp] 4 kV
- Mounting method
- DIN rail mounting bracket
- Colour white
- Tightening torque 1 Nm
Schneider auxiliary fault contact 1C /O AC/DC A9A26927
€30.28
Tax included
€30.28
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 83
Features:
- Schneider Series
- Current AC/DC
- Signal contact composition 1 A/C
- Rated current [In] 1 A: 130 V DC
- Rated current [In] 1.5 A: DC 60 V
- Rated current [In] 2 A: DC 48 V
- Rated current [In] 6 A: DC 24 V
- Rated current [In] 3 A: 415 V AC - 50/60 Hz
- Nominal current [In] 6 A: 240 V "AC" - "50/60 Hz".
- Steps 9 mm
- Rated insulation voltage [Ui] 500 V
- Rated impulse withstand voltage [Uimp] 4 kV
- Mounting method
- DIN rail mounting bracket
- Height 86 mm
- Width 9 mm
- Depth 73 mm
- Product weight 33 gr
- Colour white
- Screw clamp 2 cables 2,5 mm² - rigid
- Screw clamp 2 cables 1,5 mm² - flexible with ferrule
- Screw clamp 1 cable 0,5...2,5 mm² - flexible
- Screw clamp 1 cable 1...4 mm² - rigid
- Wire stripping length 10 mm
- Tightening torque 1 Nm
There are no reviews
Data sheet
- Type:
- Auxiliary Contacts
- Model:
- Faults
