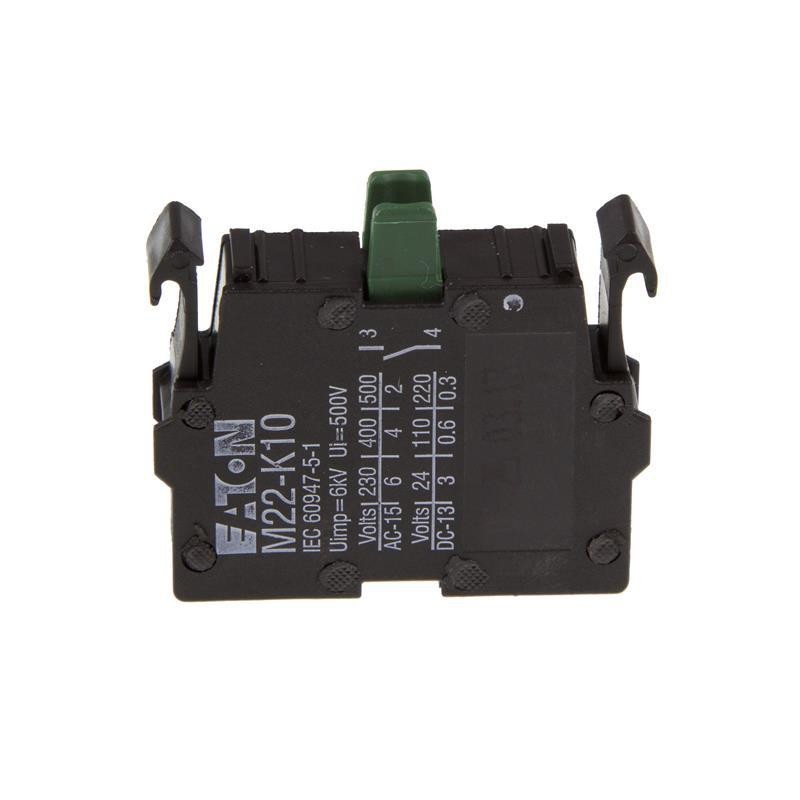

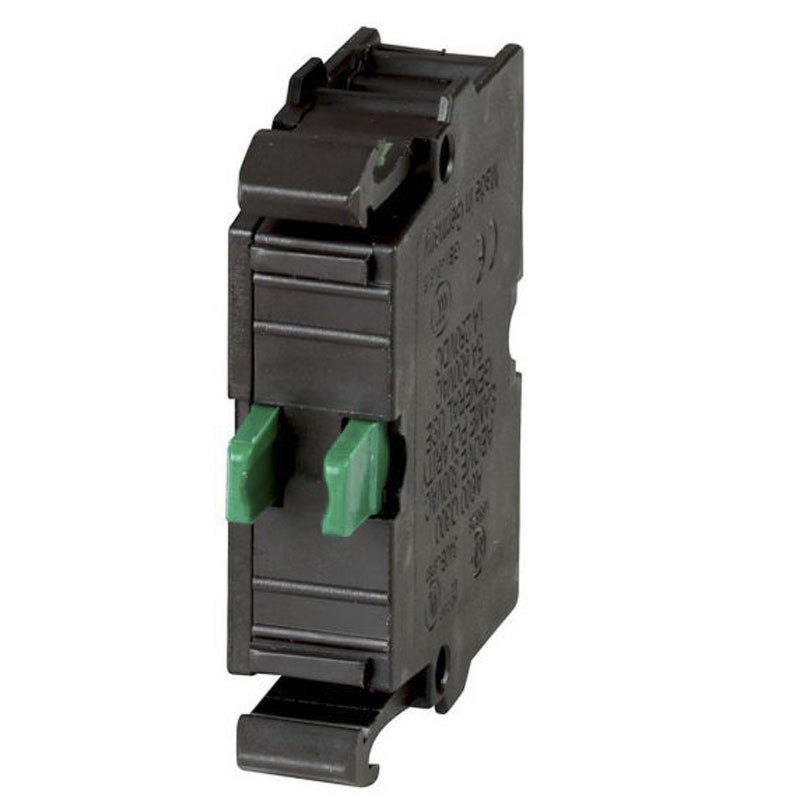

Eaton M22-K10 NO Auxiliary Contact Screw Mounting Front 216376
EAO 216376
Eaton M22-K10 auxiliary contact, with the following features:
- Without lamp holder
- Mounting type: front mounting
- Electrical connection design: screw fitting
- Rated operating voltage: 500V AC
- Maximum rated operating voltage: 220V DC
- Conventional free air thermal current [Ith = Ie]: 4A
- Rated impulse withstand voltage [Uimp]: 6000V AC
- Rated insulation voltage [Ui]: 500V
- Overvoltage category/pollution degree: III/3
- Max. short-circuit protection device Fuse [gG/gL] 10A
- Rated operating current 6 Amps
Eaton M22-K10 NO Auxiliary Contact Screw Mounting Front 216376
€4.23
Tax included
€4.23
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 45
: 34
Pay in installments with Klarna
Other technical features:
- UL/CSA Standard/Approval, IEC
- Size NZM1/2/3/4
- Connection types Screw terminals
- Type of fixing Front fixing
- Degree of protection IP20
- Connection to SmartWire-DT no
- NO = norm. Open: 1 NO contact
- Mechanical life [maneuvers]: >5 x 106
- Maneuvering frequency [man/h]: ≦ 3600
- Actuating force: ≦ 5 NET
- Drive torque (screw terminals) ≦ 0.8 Nm
- Suitability for climates: Damp heat, constant, according to IEC 60068-2-78, Damp heat, cyclic according to IEC 60068-2-30
- Ambient temperature: daytime: -25/+70 °C
- Shock resistance according to IEC 60068-2-27 - Shock duration 11 ms, half-wave > 30 g
- Connection cross-sections Rigid: 0.75 - 2.5 mm2
- Flexible connection sections: 0.5 - 2.5 mm2
- Flexible connection sections with ferrule: 0.5 - 1.5 mm2
There are no reviews
Data sheet
- Type: Auxiliary Contacts
