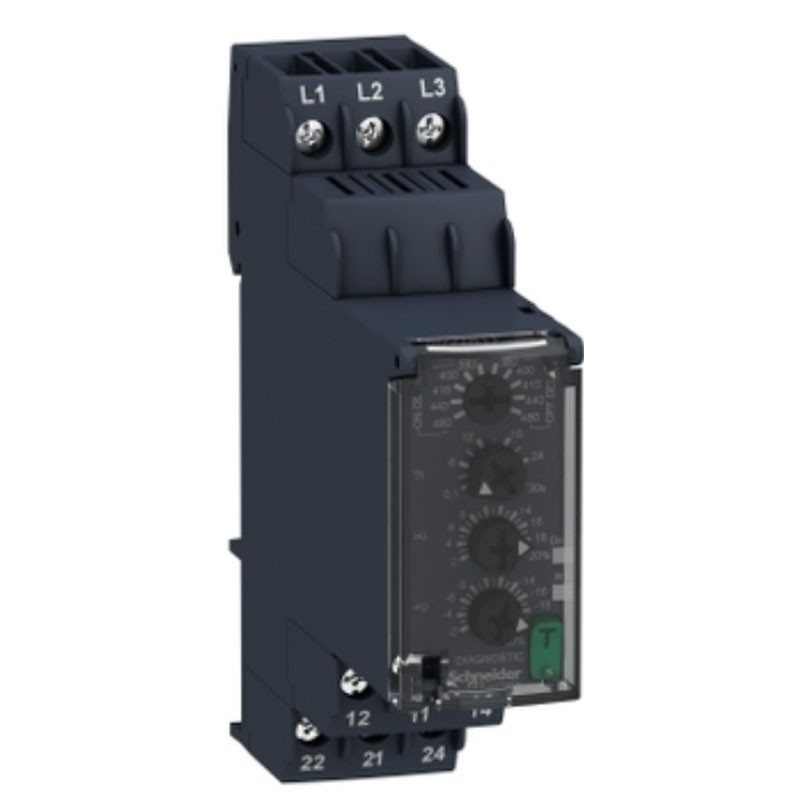

Telemecanique 3F 380/440V RM22TR33 Modular Measuring and Control Relay
SNR RM22TR33
3606480792199
Schneider Telemecanique modular control and measurement relay with the following features:
- Maximum switching voltage 250 V "AC".
- Minimum switching current 10 mA at 5 V DC
- Maximum switching current 8 A "AC".
- Rated supply voltage [Us] 380...480 V AC
- Supply Voltage Limits 304...576V AC
- Operating Limits -20% +20% Un
- Power consumption in VA 15 VA at 480V "AC" 60 Hz
- Voltage detection threshold < 100 V "AC"
- Supply voltage frequency: 50/60 Hz +/- 10%.
- Rated output current 8A
Telemecanique 3F 380/440V RM22TR33 Modular Measuring and Control Relay
€109.49
Tax included
€109.49
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Monitored relay parameters:
- Overvoltage and minimum voltage detection
- Phase sequence
- Phase failure detection
IP rating:
- IP20 according to IEC 60529 (terminals)
- IP40 according to IEC 60529 (housing)
- IP50 according to IEC 60529 (front panel)
Other Specifications
- Timingtype: Adjustable 0.1...30 s, +/-10% of full scale by crossing threshold Tt
- Switching capacity in: VA 2000 VA
- Measurement range 380...480V: "AC" Voltage
- Composition and type: 2 OC contacts
- Reset time 1500 ms at maximum voltage
- Tightening torque 0.6...1 Nm according to IEC 60947-1
- Housing material Self-extinguishing plastic
- Status LED Relay: lit (ON): LED (yellow), Power ON: LED (green)
- Mounting bracket 35 mm DIN rail according to EN/IEC 60715
- Electrical life 100000 cycles
- Mechanical life 10000000 cycles
- Contact material Cadmium-free
- Width: 22.5 mm
- Weight: 0.09 kg
- Storage temperature: -40...70 °C
- Ambient operating temperature -20...50 °C at 60 Hz -20...60 °C at "50 Hz" AC/DC
- Pollution degree 3 according to IEC 60664-1, 3 according to UL 508
There are no reviews
Data sheet
- Type: Relays
