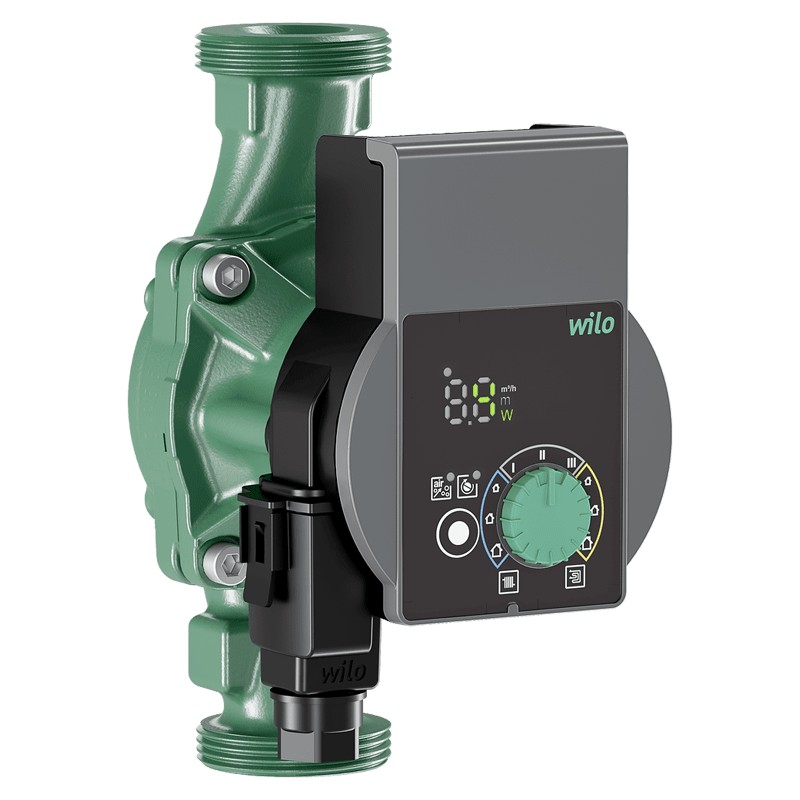

Wilo YONOS PICO 30/1-8 G 2 180mm recirculation pump with wet rotor 4215521
WIL 4215521
4048482758534
Wilo YONOS PICO 30/1-8 maintenance-free wet rotor recirculation pump with threaded connection:
- Maximum operating pressure PN 10 bar
- Pipe connection on the pressure side G 2
- Pipe connection on the suction side G 2

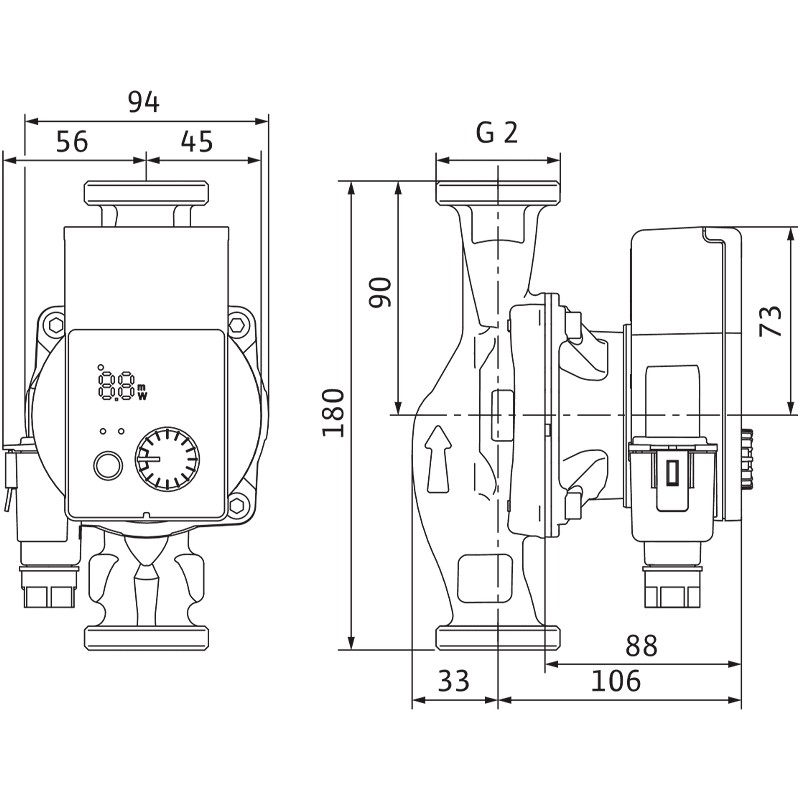

- Construction length l0 180 mm
Wilo YONOS PICO 30/1-8 G 2 180mm recirculation pump with wet rotor 4215521
€315.46
Tax included
€315.46
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Hydraulic data:
- Maximum operating pressure PN 10 bar
- Discharge Q max 4.4 m³/h
- Minimum inlet height at 50 °C 0.5 m
- Minimum inlet height at 95 °C 3 m
- Minimum inlet height at 110 °C 10 m
- Fluid temperature min. T min -10 °C
- Max. fluid temperature T max 95 °C
- Max. fluid temperature at an ambient temperature of max +25 °C Tmax 95 °C
- Max. fluid temperature at an ambient temperature of max +40 °C Tmax 95 °C
- Min ambient temperature. T min -10 °C
- Ambient temperature max. T max 40 °C
Materials:
- 5.1300 pump body, EN-GJL-200
- Impeller PP-GF40
- Shaft Stainless steel
- Bearing material Metal-impregnated carbon
Motor data:
- Energy efficiency index IEE 0.23
- Mains power supply 1~230 V ±10%, 50/60 Hz
- Rated power P2 58 W
- Min speed min 500 1/min
- Speed max 4800 1/min
- Power consumption (min) P1 min 4 W
- Power consumption P1 max 75 W
- Electromagnetic noise emission EN 61000-6-3
- Interference immunity EN 61000-6-2
- Electromagnetic compatibility EN 61800-3
- Cable gland 1 x PG11
- Insulation class F
- Degree of protection IPX4D
There are no reviews
Data sheet
- Type: Circulatory
- Model: Wet rotor
