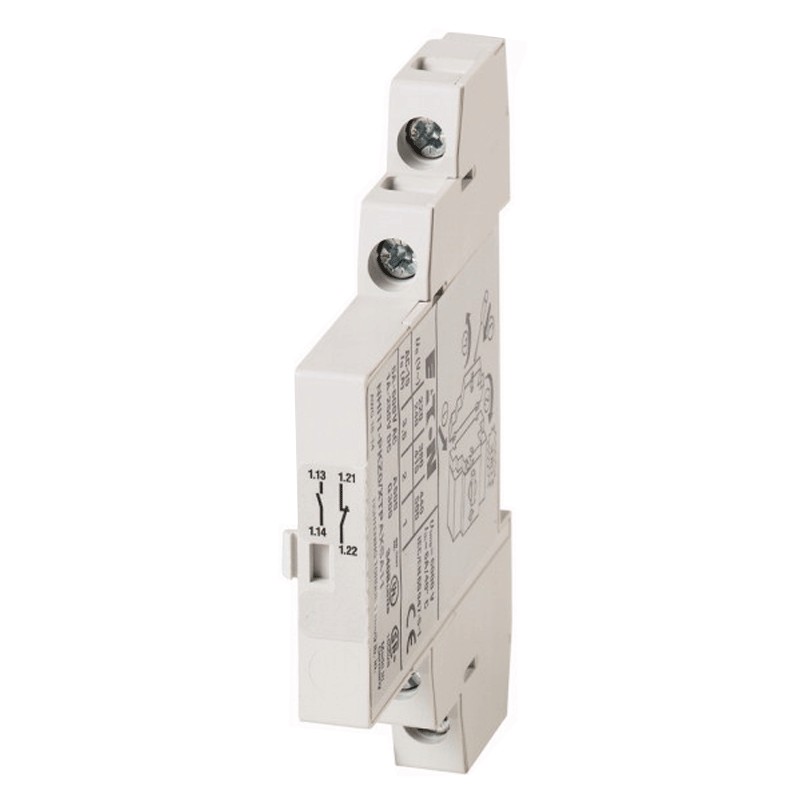

Auxiliary contact Eaton NO+NC side 72896
EAO 72896
4015080728962
Eaton side auxiliary contact, with the following characteristics:
-
Rated impulse withstand voltage [Uimp] 6000 Vac
-
Rated insulation voltage (between auxiliary and main contacts) 690 Vac
-
Rated operating voltage 500 Vac
-
Nominal operating voltage 250 Vdc
-
Nominal operating current 3.5 A
-
Overvoltage category III
-
Pollution degree 3
-
Type of contacts 1 NO, 1 NC
-
Electrical connection type screw connection
-
Model top mounting
-
Mounting method side mounting
Auxiliary contact Eaton NO+NC side 72896
€8.25
Tax included
€8.25
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 47
: 20
Pay in installments with Klarna
Auxiliary contacts are secondary switching devices that operate in conjunction with primary switching equipment such as circuit breakers, relays, and contactors. These contacts are physically connected to the main switching mechanism and are activated simultaneously.
What are they used for? Auxiliary contacts are used for various functions, e.g. self-holding, consent/block, signaling, interlocking.
Features:
- Eaton Series
- Rated impulse withstand voltage [Uimp] 6000 Vac
- Rated insulation voltage (between auxiliary contacts and main contacts) 690 Vac
- Rated operating voltage 500 Vac
- Nominal operating voltage 250 Vdc
- Rated operational current 3,5 A
- Overvoltage category III
- Pollution degree 3
- Type of contacts 1 NO, 1 NC
- Electrical connection type screw connection
- Model top mounting
- Mounting method side mounting
- Can be retrofitted to the right side of motor starters
- Cannot be used for motor starters type MSC-R
There are no reviews
Data sheet
- Type: Auxiliary Contacts
