BM preinsulated male PVC terminal lug 1.5mm diameter 4 100 pieces 00180

Bm
Bm
BMM 00180 8013629001800

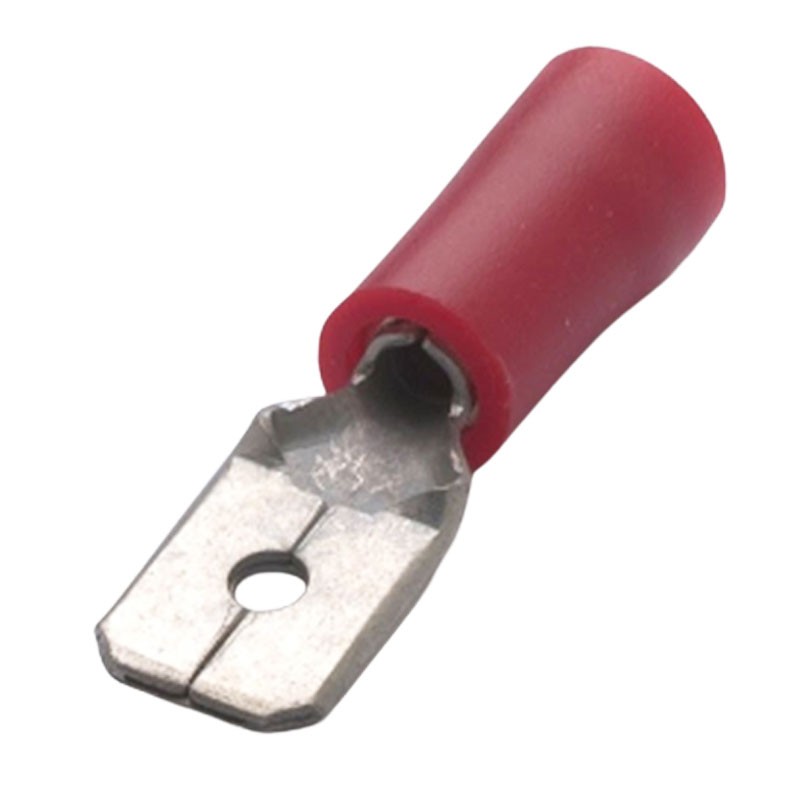

BM terminal lug pre-insulated male quick-connect, with the following characteristics:



  • Terminal material: tinned brass
  • Bushing material: copper
  • Insulation material: polyvinyl chloride (PVC)
  • Operating temperature: 75 °C max.
  • Insulation self-extinguishing level: UL 94 V0
  • Rated voltage: 300V max
  • Double crimping
  • Red color
  • Cross-section: 0.25 to 1.5 (mm²)
  • Cross-section (AWG/MCM): (22 - 16)
  • For male: 6.3 x 0.8 mm

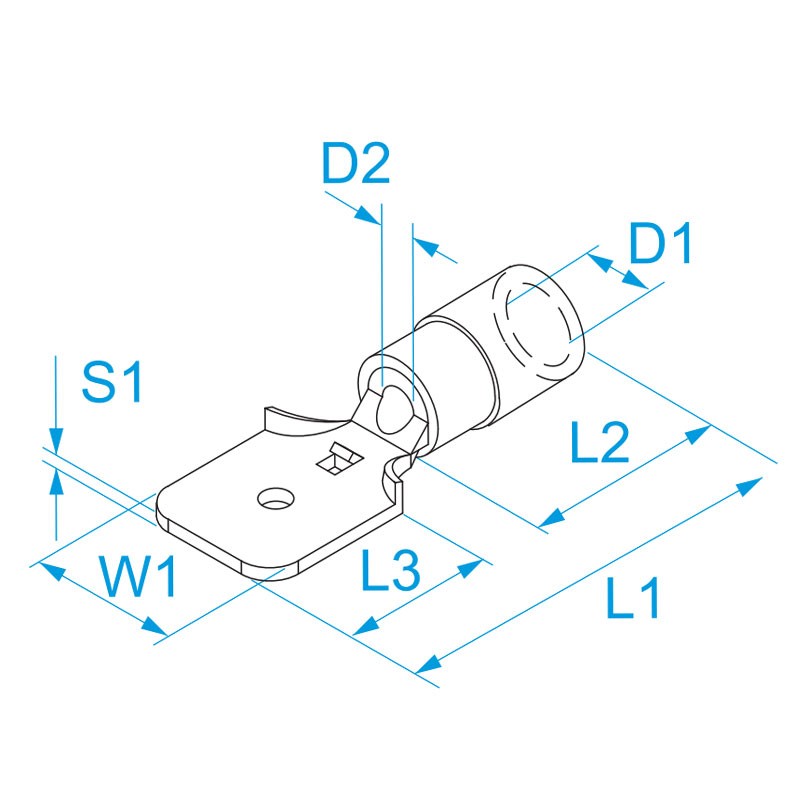

  • Dimensions W1 (mm) L1 (mm) L2 (mm) L3 (mm) D1 (mm) D2 (mm) S1 (mm): 6.3 21 10 8 3.8 1.9 0.8



Pack of 100 pieces.


Request info about this product

BM preinsulated male PVC terminal lug 1.5mm diameter 4 100 pieces 00180

€10.72 Tax included
€10.72

BM preinsulated male PVC terminal lug 1.5mm diameter 4 100 pieces 00180

€10.72
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 75
logo priority: 3
Altre disponibilità dal produttore
qty

BM preinsulated male PVC terminal lug 1.5mm diameter 4 100 pieces 00180

€10.72

Buy it within and receive it from Thursday, 18 December
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

There are no reviews

Data sheet

Diameter:
4mm
Type:
Terminal lugs
Section:
1.5mmq
