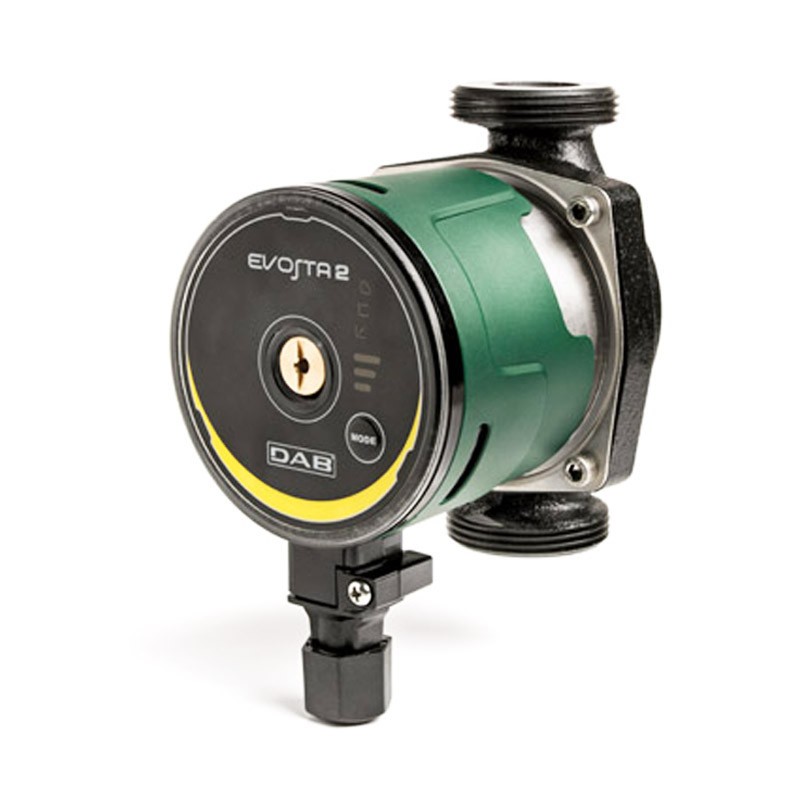

The electronic circulator DAB EVOSTA2 40-70/180 1" 60185492
DAB 60185492
The electronic circulator DAB EVOSTA2 40-70/180 a, low-energy consumption for the circulation of water in all types of domestic heating and air conditioning systems.
The electronic circulator DAB EVOSTA2 40-70/180 1" 60185492
€141.64
Tax included
€141.64
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 15
: 1
Pay in installments with Klarna
EVOSTA 2 is the new range of circulators DAB is capable of providing the robustness of the circulator mechanical, combined with the advantages of the electronic one. The permanent magnet synchronous motor, the frequency converter, the efficiency index EEI ? 0,18 matched to the degree of protection IPX5 and the vent plug, integrated, make the family EVOSTA 2 one of the best products of the category in terms of efficiency and reliability. The range of circulators EVOSTA 2 lends itself very well to the replacement of the old circulators three speed is for the compact size, both for the completeness of the offer in terms of performance. It is also a product that can simplify the task of the installer having a single button set-sequential, and direct access to the motor shaft for the eventual release.
Features:
- Wheelbase 180mm
- Pump connections DN25 THREAD ( G 1½)
- Power supply 50Hz 1x230 V ~
- Max power 35W
- In 0,043 - 0,32 A.
CONSTRUCTION FEATURES
Pump body in cast iron with cataphoresis treatment and motor wet rotor. Motor casing in stainless steel, impeller in technopolymer. The motor shaft fitted ceramic bearing ceramic lubricated by the pumped liquid. Shirt of the rotor, jacket stator, and closing flange in stainless steel. Thrust ring in graphite. EPDM o-rings and cap air vent brass. Thanks to the internal protection of the motor, the pump requires no protection against overload.
Produits conforme mais attention à l emballage
Ersatzpumpe für Kunden. 1:1 Tausch nach Ausfall.
Data sheet
- Type: Circulatory
- Version: Single
