BM preinsulated terminal lug PVC 2.5mm diameter 5 100 pieces 00226

Bm
Bm
BMM 00226 8013629002265

BM terminal lug for PVC pre-insulated copper conductors from sheet/fork, with the following characteristics:



  • Terminal material: tinned copper
  • Insulation material: polyvinyl chloride (PVC)
  • Self-extinguishing level of the insulation: UL 94 V0
  • Rated voltage: 300V max
  • Operating temperature: 75°C max
  • Reference standards: UL 486 A-B
  • Color: blue
  • Cross-section: 1.5 to 2.5 mm²
  • For screw diameter (mm): 5
  • Cross section:(16 - 14) AWG/MCM

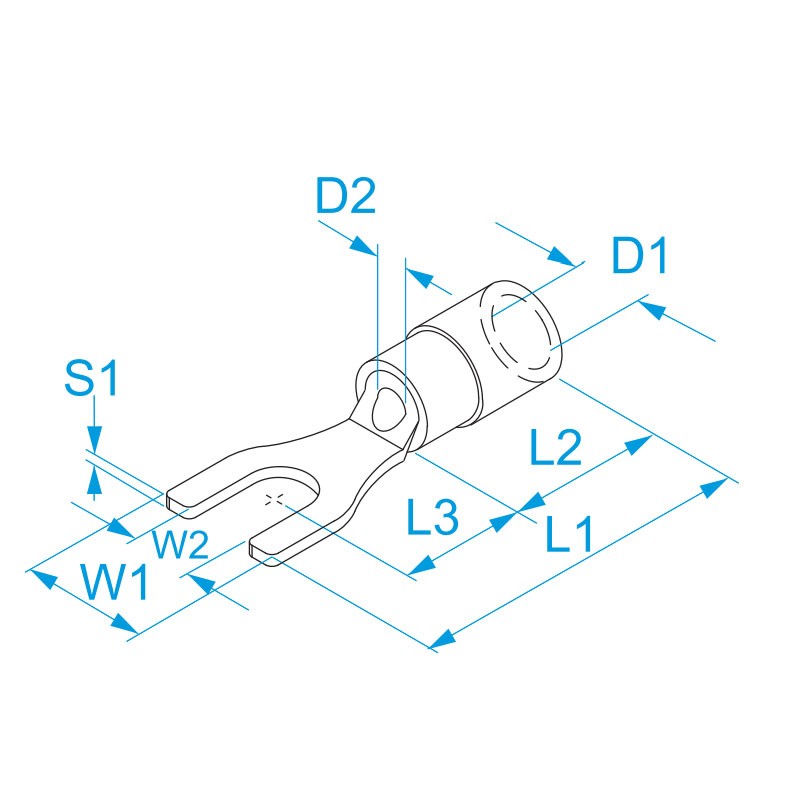

  • Dimensions: W1 (mm) W2 (mm) L1 (mm) L2 (mm) L3 (mm) D1 (mm) D2 (mm) S1 (mm): 9.1 5.2 25 11 9.5 4.8 2.45 0.8



Pack of 100 pieces.


Request info about this product

BM preinsulated terminal lug PVC 2.5mm diameter 5 100 pieces 00226

€6.19 Tax included
€6.19

BM preinsulated terminal lug PVC 2.5mm diameter 5 100 pieces 00226

€6.19
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 68
logo priority: 2
Altre disponibilità dal produttore
qty

BM preinsulated terminal lug PVC 2.5mm diameter 5 100 pieces 00226

€6.19

Buy it within and receive it from Thursday, 18 December
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Tutto ok. Prodotto di qualità ad un prezzo molto conveniente.

Read all reviews

Data sheet

Diameter:
5mm
Type:
Terminal lugs
Section:
2.5 mmq
