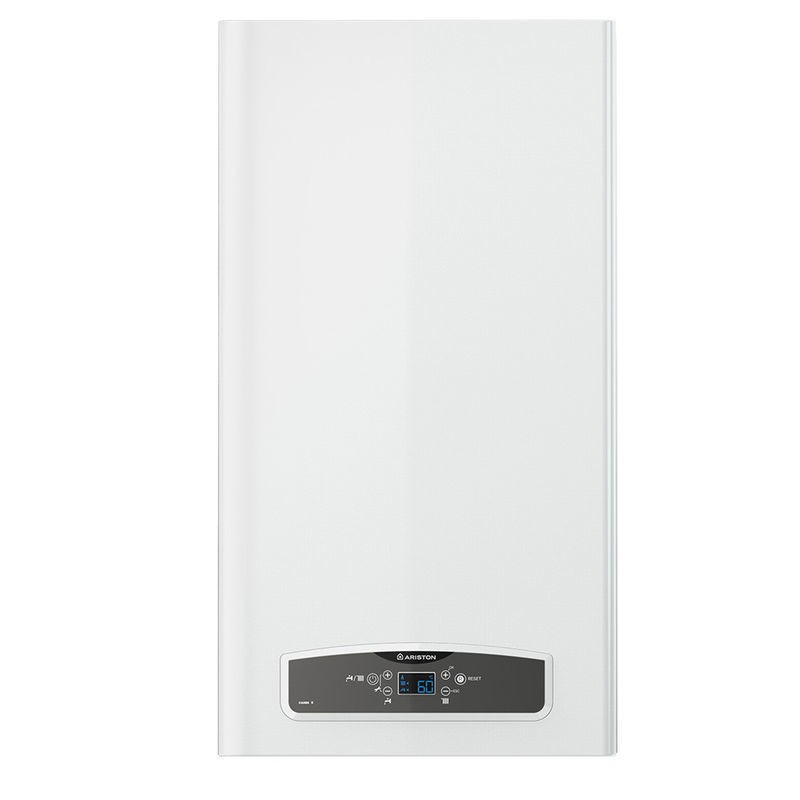

Ariston CARES X CF 24kW Open Chamber Conventional Boiler 3301315
ARS 3301315
5414849775275
Ariston CARES X CF 24kW Methane Open Chamber Conventional boiler, with modulating circulator for optimizing consumption and maximizing performance. Energy class heating / hot water C / B. XL withdrawal profile.
Ariston CARES X CF 24kW Open Chamber Conventional Boiler 3301315
€739.71
Tax included
€739.71
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Pay in installments with Klarna
Frequently bought together
Advantages:

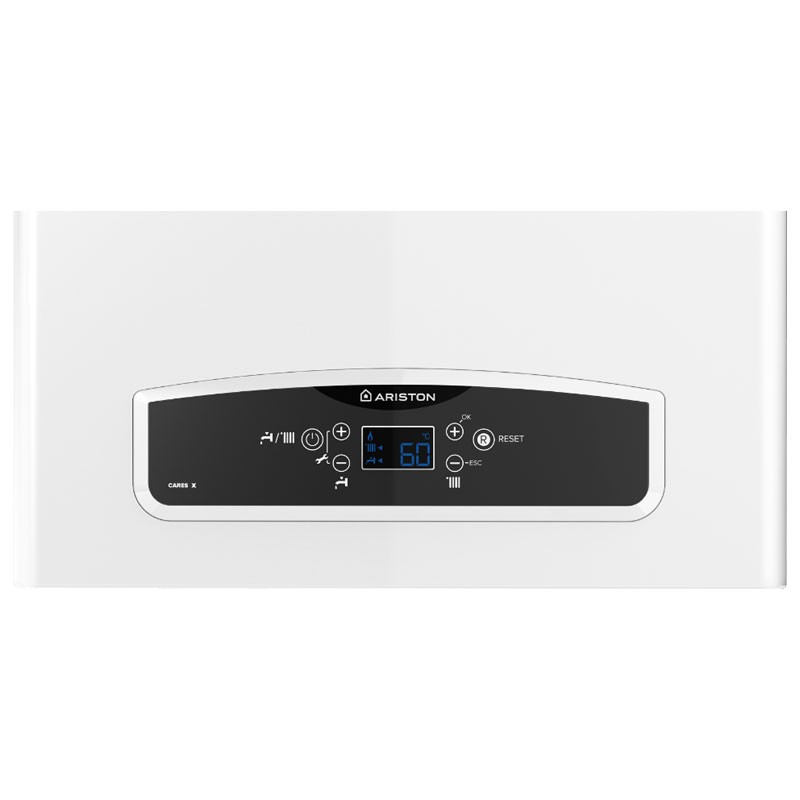

- Digital multifunction display
- / High efficiency circulator with continuous modulation
- Predisposition for on-off thermoregulation
- Provision for natural circulation solar systems
- Self-diagnosis system with code
- Single temperature zone management
- Finned copper primary heat exchanger
- Double exchanger technology
- Integrated minimum pressure switch
- Cold water inlet and heating return filters
- Low NOx emissions < 56 mg/kWh.
Features:
- Max/min nominal heat input (heating) PCI kW 25.8 / 11.0
- Max/min nominal heat input (sanitary) PCI kW 27/11,0
- Max. effective heat output/min (heating) kW 23,2 / 9,8
- Efficiency at nominal heat output PCI % 90,1
- Efficiency at 30% of the nominal flow rate PCI % 89,9
- Max/min heating temperature °C 82 / 35
- Max. temperature/min DHW °C 60/36
- Specific DHW flow rate (10 min. with T=30°C) litres/min 11.8
- Hot water quantity (?T=25°C) litres/min 14,2
- Hot water quantity (?T=35°C) litres/min 10,1
- Minimum draught Pa 4
- Nox class 6
- Smoke temperature (G20) °C 111
- CO 2 content max / min (G20) % 5.6 / 2.7
- CO content (0%O 2 ppm 81
- O2 content (G20) % 10,4
- Maximum smoke flow rate (G20) Kg/h 68,2
- Air excess % 98
- Water side pressure drop (max) T=20°C mbar 200
- Residual head for system bar 0,25
- Expansion vessel preload pressure bar 1
- Maximum heating pressure (Mpa) bar 0,3 (3)
- Expansion tank nominal capacity litres 8
- Max/min heating temperature °C 82 / 35
- Max/min sanitary temperature °C 60 / 36
- Specific DHW flow rate (10 min. with ?T=30°C) l/min 12,2
- Instantaneous hot water quantity ?T=25°C l/min 14,2
- Instantaneous quantity of hot water ?T=35°C l/min 10,1
- Minimum hot water withdrawal l/min >2
- Max sanitary water pressure (Mpa) bar 0,7 (7)
- Power supply voltage/frequency V/Hz 230/50
- Total electric power consumption W 53
- Minimum ambient temperature °C +5
- Protection rating of electrical system IP X4D
- Weight kg 25.
There are no reviews
Data sheet
- Type: Boilers
- Model: Natural gas
- Thermal power: 24 kW
- Energy class: B
- Series: Cares X CF
